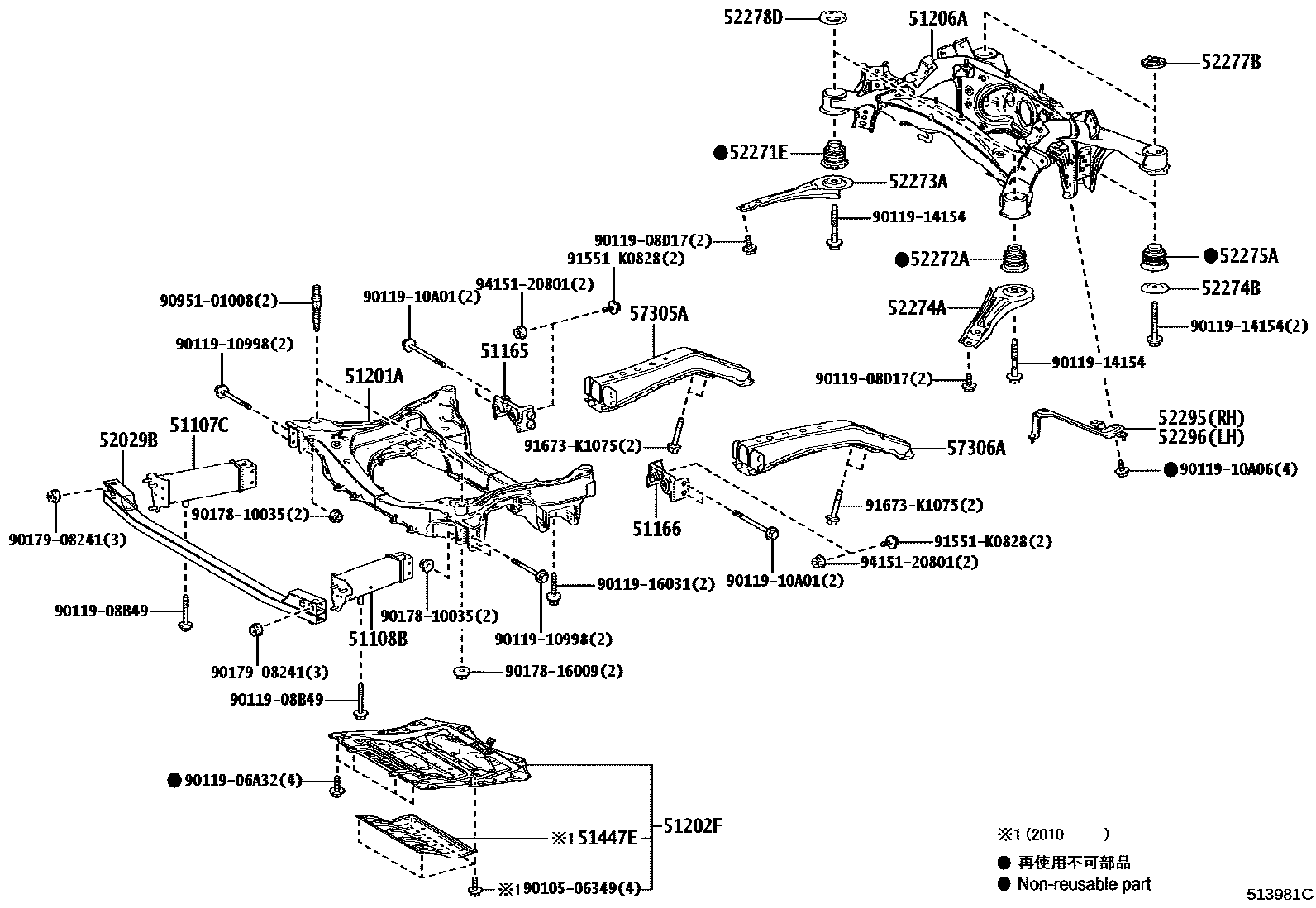

SUSPENSION CROSSMEMBER & UNDER COVER
51107CRAIL SUB-ASSY, REAR FRAME, RH
51108BRAIL SUB-ASSY, REAR FRAME, LH
51165REINFORCEMENT, SIDE RAIL, NO.2 RH
51166REINFORCEMENT, SIDE RAIL, NO.2 LH
51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT
51202FSUPPORT SUB-ASSY, STRUT BAR BRACKET
51206AMEMBER SUB-ASSY, REAR SUSPENSION
"F SPORT"*(F); "F SPORT"*(F)&F SPORT PLUS PACKAGE&SUSPENSION-AIR SUSPENSION & *AVS
"F SPORT"*(F); "F SPORT"*(F)&F SPORT PLUS PACKAGE&SUSPENSION-AIR SUSPENSION & *AVS
51447EREINFORCEMENT, ENGINE UNDER COVER
52029BREINFORCEMENT SUB-ASSY, FRONT BUMPER, NO.2
52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH
52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH
52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH
52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH
52274BSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER
52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER
52278DSTOPPER, REAR SUSPENSION MEMBER, FRONT UPPER
52295BRACE, REAR SUSPENSION MEMBER, RH
52296BRACE, REAR SUSPENSION MEMBER, LH
57305AREINFORCEMENT SUB-ASSY, LOWER ARM MOUNTING, REAR RH
57306AREINFORCEMENT SUB-ASSY, LOWER ARM MOUNTING, REAR LH
9010506349
main90105-06349
9011906A32
main90119-06A32
9011908B49
main90119-08B49
9011908D17
main90119-08D17
9011910998
main90119-10998
9011910A01
main90119-10A01
9011910A06
main90119-10A06
9011914154
main90119-14154
9011916031
main90119-16031
9017810035
main90178-10035
9017816009
main90178-16009
9017908241
main90179-08241
9095101008
main90951-01008
91551K0828
main91551-K0828
91673K1075
main91673-K1075
9415120801
main94151-20801
37 parts on this diagram · 4 diagrams in section
