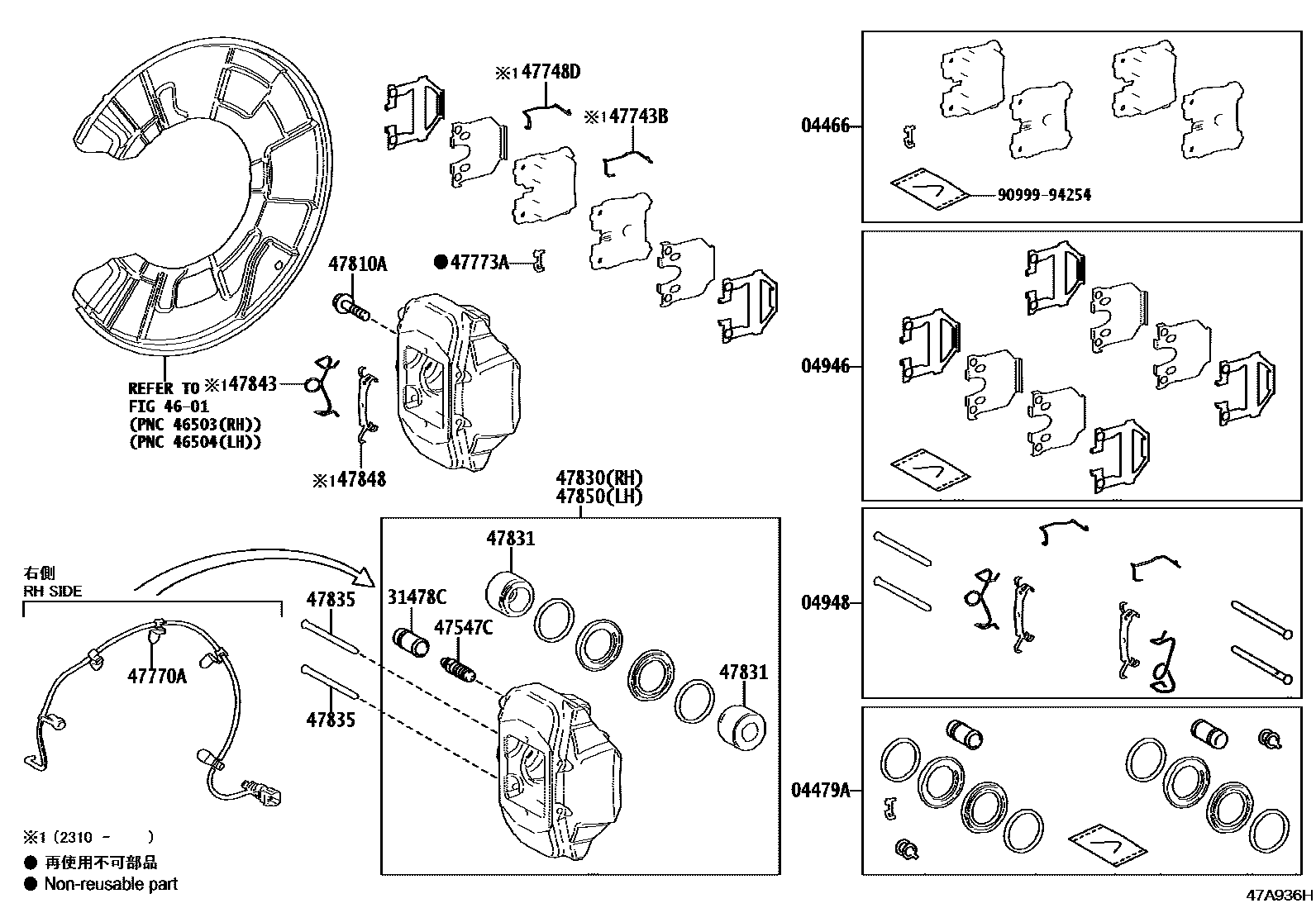

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-11010supersedes 04466-50180i201710-202010

MARK AK NS380H,"F SPORT"*(F)&FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD),F SPORT

main04466-11020i202010-202210

MARK NBK D6994H,"F SPORT"*(F)&FRONT WHEEL BRAKE-20INCH,F SPORT

main04466-11040supersedes 04466-50230i202310

MARK NBK D6504H,"F SPORT"*(F)&FRONT WHEEL BRAKE-20INCH,F SPORT

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-50210i202010-202310

main04479-11010i201909-202010

"F SPORT"*(F)&FRONT WHEEL BRAKE-20INCH,F SPORT

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-50120i202010-202310

main04946-11010i201909-202010

"F SPORT"*(F)&FRONT WHEEL BRAKE-20INCH,F SPORT

04948FITTING KIT, DISC BRAKE, REAR

main04948-50070i202010-202310

main04948-11010supersedes 04948-50070i201710-202010

"F SPORT"*(F)&FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD),F SPORT

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-14010i201710-202010

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-50010×2i201710-202010

47743BSPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)

main47718-50210×2i202310

47748DSPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47717-50210×2i202310

47770AWIRE ASSY, PAD WEAR INDICATOR, RH

main47770-50130i202010-202310

main47770-11020i202010-202210

"F SPORT"*(F)&FRONT WHEEL BRAKE-20INCH,F SPORT

47773ARETAINER, PAD WEAR INDICATOR

main47773-50030i201710-202010

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12396×4i202010-202310

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-50200i202010-202310

main47830-11010supersedes 47830-50200i201710-202010

"F SPORT"*(F)&FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD),F SPORT

47831PISTON, REAR DISC BRAKE

main47731-50180×4i202010-202310

main47831-11010×8supersedes 47731-50180i202010

"F SPORT"*(F)&FRONT WHEEL BRAKE-20INCH,F SPORT

47835PIN, REAR DISC BRAKE PAD GUIDE

main47835-50140×4i201710-202010

47843CLIP, REAR DISC BRAKE PIN HOLD

main47843-11010×2supersedes 47843-50140i202310

"F SPORT"*(F)&FRONT WHEEL BRAKE-20INCH,F SPORT

47848SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47848-11010×2supersedes 47848-50150i202310

"F SPORT"*(F)&FRONT WHEEL BRAKE-20INCH,F SPORT

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-50200i202010-202310

main47850-11010i202010-202210

"F SPORT"*(F)&FRONT WHEEL BRAKE-20INCH,F SPORT

9099994254

main90999-94254

19 parts on this diagram · 2 diagrams in section
