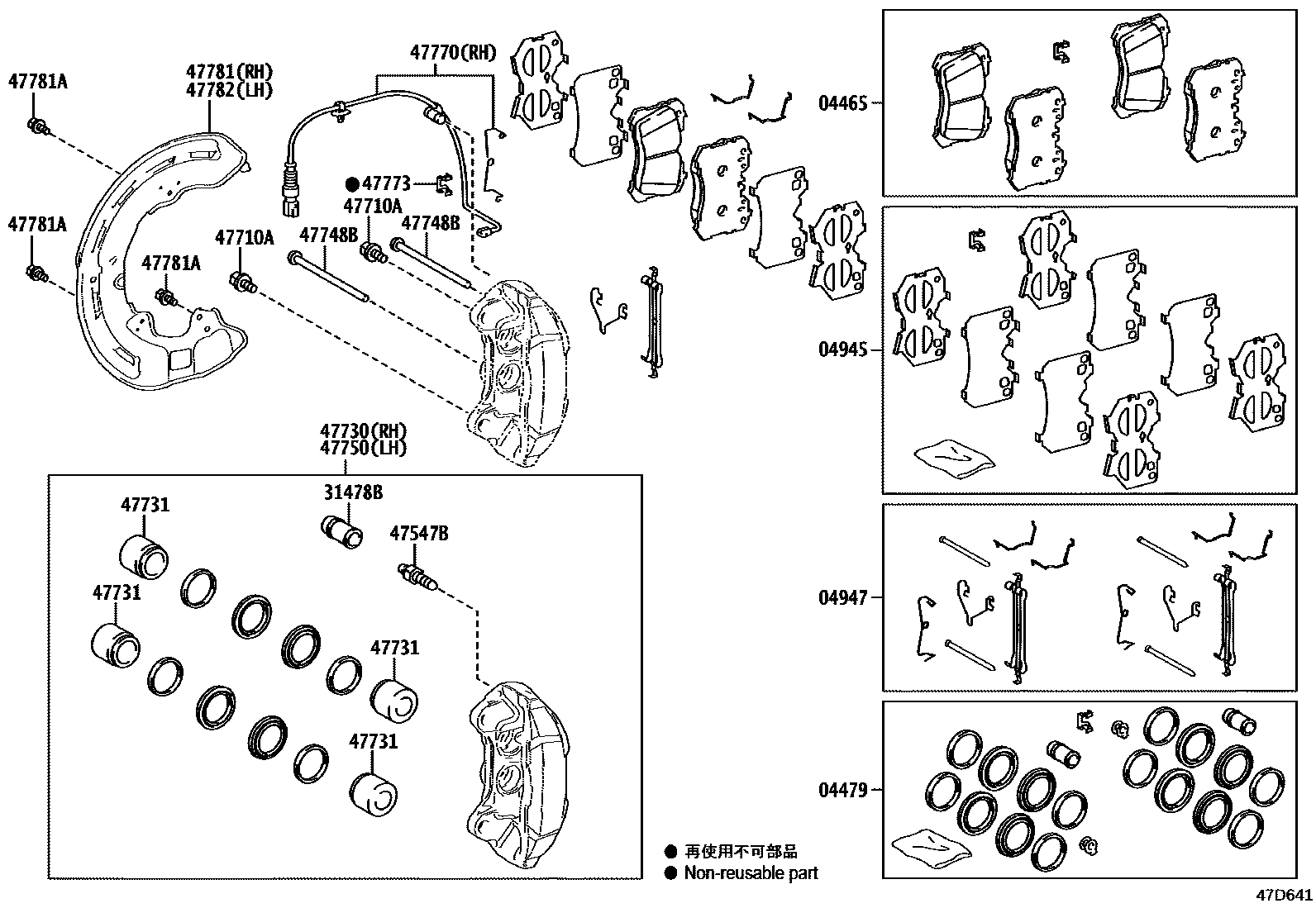

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-11010supersedes 04465-50280i201710-201906

MARK AK NS380H,"F SPORT"*(F)

main04465-11011i201909-202010

MARK AK NS380H,FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD),F SPORT

main04465-11020supersedes 04465-50280i202010-202210

MARK NBK D6994H,"F SPORT"*(F)

main04465-11040supersedes 04465-50300i202310-202510

MARK NBK D6504H,"F SPORT"*(F)

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-50050i201710-202010

main04478-11010supersedes 04478-50050i201909-202010

FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD),F SPORT

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-50080i202010-202310

main04945-11010i201710-201809

"F SPORT"*(F)

main04945-11011supersedes 04945-50080i201909-202010

FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD),F SPORT

04947FITTING KIT, DISC BRAKE, FRONT

main04947-50140i202010-202310

main04947-11010supersedes 04947-50140i201909-202010

FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD),F SPORT

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010supersedes 31478-14010i201710-202010

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-50010×2i201710-202010

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-14180×4i201710-202010

*14-1.5PX40-35.5

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-50180i202010-202310

main47730-11050supersedes 47730-50180i202310-202510

"F SPORT"*(F)

47731PISTON, FRONT DISC BRAKE

main47731-50180×8i201710-202010

main47731-11050×12supersedes 47731-50180i202310-202510

"F SPORT"*(F)

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-11050×2i201710-201909

"F SPORT"*(F)

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main47735-50200×4i201710-202010

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-50280i201710-202010

main47750-11040supersedes 47750-50280i202310-202510

"F SPORT"*(F)

47770WIRE ASSY, PAD WEAR INDICATOR, FRONT RH

main47770-50120i201710-202010

main47770-11010supersedes 47770-50120i201710-201909

"F SPORT"*(F)

47773RETAINER, PAD WEAR INDICATOR

main47773-50030i201710-202010

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-50080i201710-202010

main47781-11010supersedes 47781-50080i202010-202210

"F SPORT"*(F)

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06508×6i202010-202310

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-50080i201710-202010

main47782-11010supersedes 47782-50080i202010-202210

"F SPORT"*(F)

17 parts on this diagram · 3 diagrams in section
