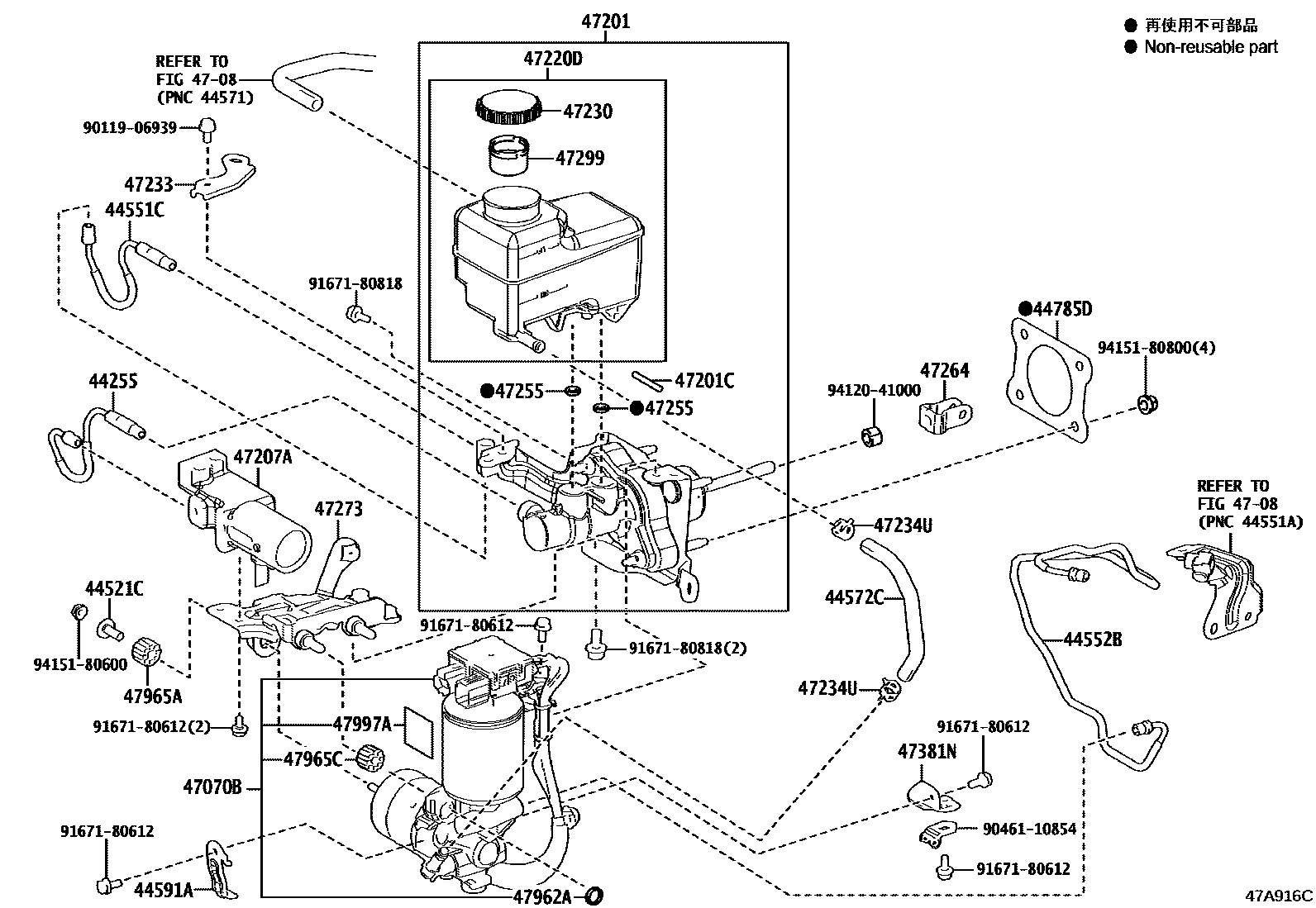

BRAKE MASTER CYLINDER

44255TUBE, BRAKE MASTER CYLINDER

main44255-50060i201710-202010

44521CCOLLAR, BRAKE ACTUATOR CASE

main44521-47010i201710-202010

44551CTUBE, BRAKE ACTUATOR, NO.1

main44551-11030i201710-202010

main44551-62020i202310

44552BTUBE, BRAKE ACTUATOR, NO.2

main44552-50100i201710-202010

44572CHOSE, BRAKE ACTUATOR, NO.2

main44572-50090i201710-202010

44591ABRACKET, BRAKE ACTUATOR, NO.1

main44591-11030i202010-202310

"EXECUTIVE"*(E)&LEXUS SAFETY SYSTEM+A; "F SPORT"*(F)&LEXUS SAFETY SYSTEM+A; "VERSION L"*(L)&LEXUS SAFETY SYSTEM+A; INTERIOR UPGRADE PACKAGE&LEXUS SAFETY SYSTEM+A

44785DGASKET, BRAKE MASTER CYLINDER

main44785-12040i202010

47070BPUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR

main47070-48100i202310

main47070-50070i201710-202010

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-50380i201710-201711

main47201-50381supersedes 47201-50360i201711-202010

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803i201710-202010

47207ACYLINDER SUB-ASSY, BRAKE STROKE SIMULATOR

main47207-11010i201710-202010

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-11010i201710-201711

main47220-11030supersedes 47220-50200i202010-202310

"EXECUTIVE"*(E)&LEXUS SAFETY SYSTEM+A; "F SPORT"*(F)&LEXUS SAFETY SYSTEM+A; "VERSION L"*(L)&LEXUS SAFETY SYSTEM+A; INTERIOR UPGRADE PACKAGE&LEXUS SAFETY SYSTEM+A

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-11010supersedes 47230-47090i201711-202010

main47230-47090i201710-201711

47233BRACKET, RESERVOIR

main47233-11010i202010-202310

"EXECUTIVE"*(E)&LEXUS SAFETY SYSTEM+A; "F SPORT"*(F)&LEXUS SAFETY SYSTEM+A; "VERSION L"*(L)&LEXUS SAFETY SYSTEM+A; INTERIOR UPGRADE PACKAGE&LEXUS SAFETY SYSTEM+A

47234UCLIP(FOR RESERVOIR HOSE NO.1)

main96137-41501×2i202310

main96137-51501×2i201710-202010

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001×2i201710-202010

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-63020i201710-202010

47273BRACKET, BRAKE STROKE SIMULATOR

main47273-50030i201710-202010

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-30190supersedes 47299-20060i202010-202310

"EXECUTIVE"*(E)&LEXUS SAFETY SYSTEM+A; "F SPORT"*(F)&LEXUS SAFETY SYSTEM+A; "VERSION L"*(L)&LEXUS SAFETY SYSTEM+A; INTERIOR UPGRADE PACKAGE&LEXUS SAFETY SYSTEM+A

47381NBRACKET, TUBE CLAMP

main47381-11010i201710-202010

47962ACOLLAR, BRAKE BOOSTER PUMP

main47962-60090×2i201710-202010

47965ABUSH, BRAKE BOOSTER PUMP

main47965-30010i201710-202010

47965CBUSH, BRAKE BOOSTER PUMP, NO.2

main47965-30010×2i201710-202010

47997ALABEL, ACCUMULATOR CAUTION, NO.1

main47997-76010i201710-202010

9011906939

main90119-06939
