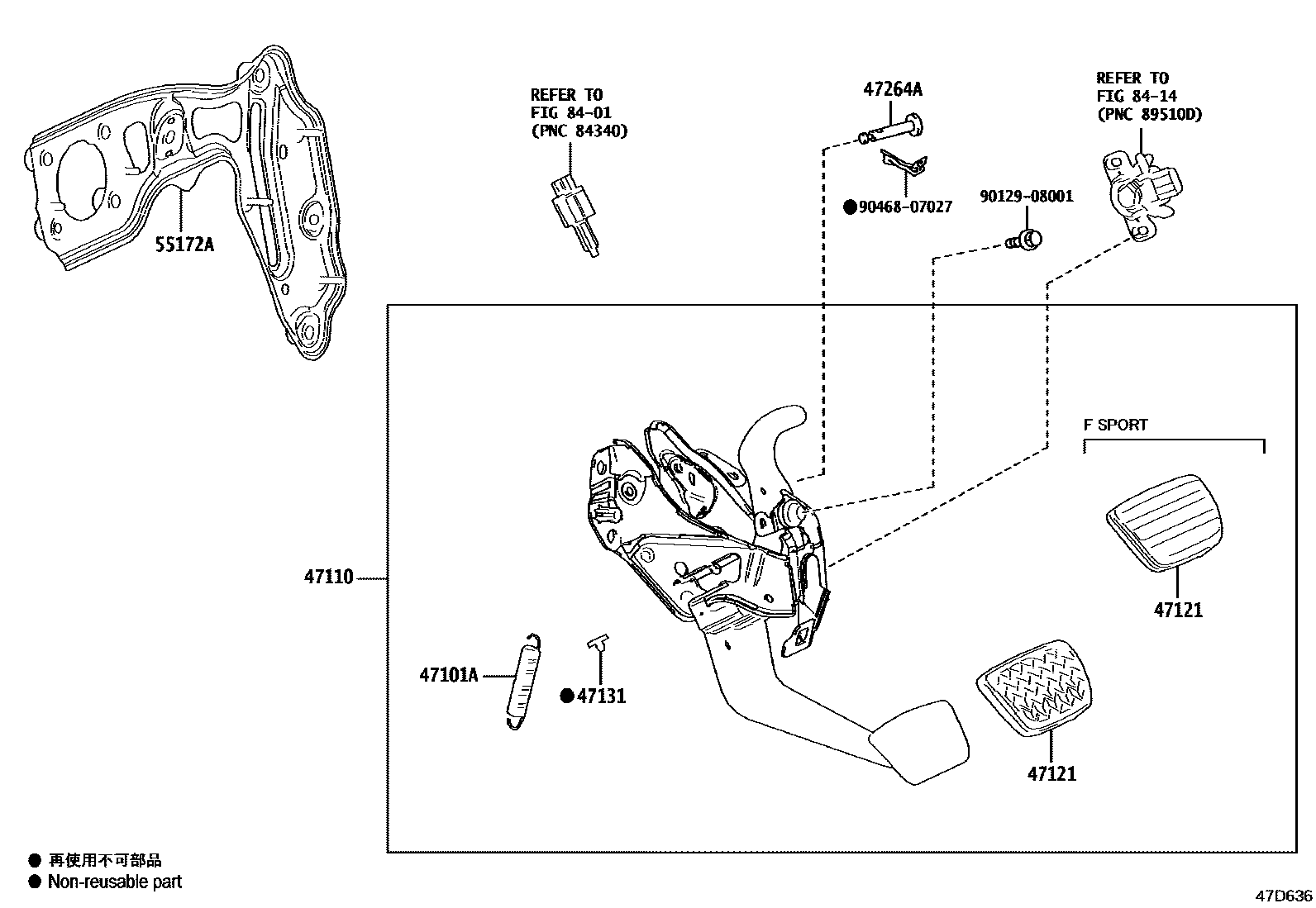

BRAKE PEDAL & BRACKET

0001 1W/O(VACUUM BRAKE BOOSTER)REFE0002 1W(INTELLIGENT PARKING ASSIST)0003 1W(VACUUM BRAKE BOOSTER),REFER

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15010iGVF55202310

main90507-15011iVXFA5#202010

47110SUPPORT ASSY, BRAKE PEDAL

main47110-50231iGVF50; VXFA50202010-202310

LEXUS SAFETY SYSTEM+A

main47110-50270iGVF55202310

main47110-50200supersedes 47110-50191iVXFA50201712-202010

"F SPORT"*(F)

main47110-50201supersedes 47110-50191iVXFA50202010

"F SPORT"*(F)

main47110-50220supersedes 47110-50211iVXFA55201712-202010

"F SPORT"*(F)

main47110-50221supersedes 47110-50211iVXFA55202010

"F SPORT"*(F)

main47110-50230supersedes 47110-50191iVXFA50201712-202010

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A

main47110-50240supersedes 47110-50230iGVF50201710-202010

"F SPORT"*(F)

main47110-50241iVXFA50202010-202310

"F SPORT"*(F)&LEXUS SAFETY SYSTEM+A

main47110-50250supersedes 47110-50211iVXFA55201712-202010

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A

main47110-50251iGVF55; VXFA55202010-202310

LEXUS SAFETY SYSTEM+A

main47110-50260supersedes 47110-50250iGVF55201710-202010

"F SPORT"*(F)

main47110-50261supersedes 47110-50251iGVF55; VXFA55202010-202310

"F SPORT"*(F); "F SPORT"*(F)&LEXUS SAFETY SYSTEM+A

main47110-50300supersedes 47110-50250iGVF55202310

"F SPORT"*(F)

47121PAD, BRAKE PEDAL

main47121-62010iGVF50202010-202310

main47121-11010iVXFA5#201712-202010

"F SPORT"*(F)&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A

main47121-11020iVXFA5#202010-202310

"F SPORT"*(F)&LEXUS SAFETY SYSTEM+A

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iGVF55,VXFA5#202010

47264APIN(FOR PUSH ROD)

main90240-08078supersedes 90249-06180iGVF5#; VXFA5#201805-202010

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A

main90240-08082iGVF5#201710-201804

55172ABASE, BRAKE PEDAL SUPPORT

main55172-50070iGVF50,VXFA50201710-202010

main55172-50090iGVF55,VXFA55202010

main55172-62010iVXFA50202010

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8414ABS & VSC

→ Go to FIG 84-14

9012908001

main90129-08001

9046807027

main90468-07027

10 parts on this diagram · 3 diagrams in section
