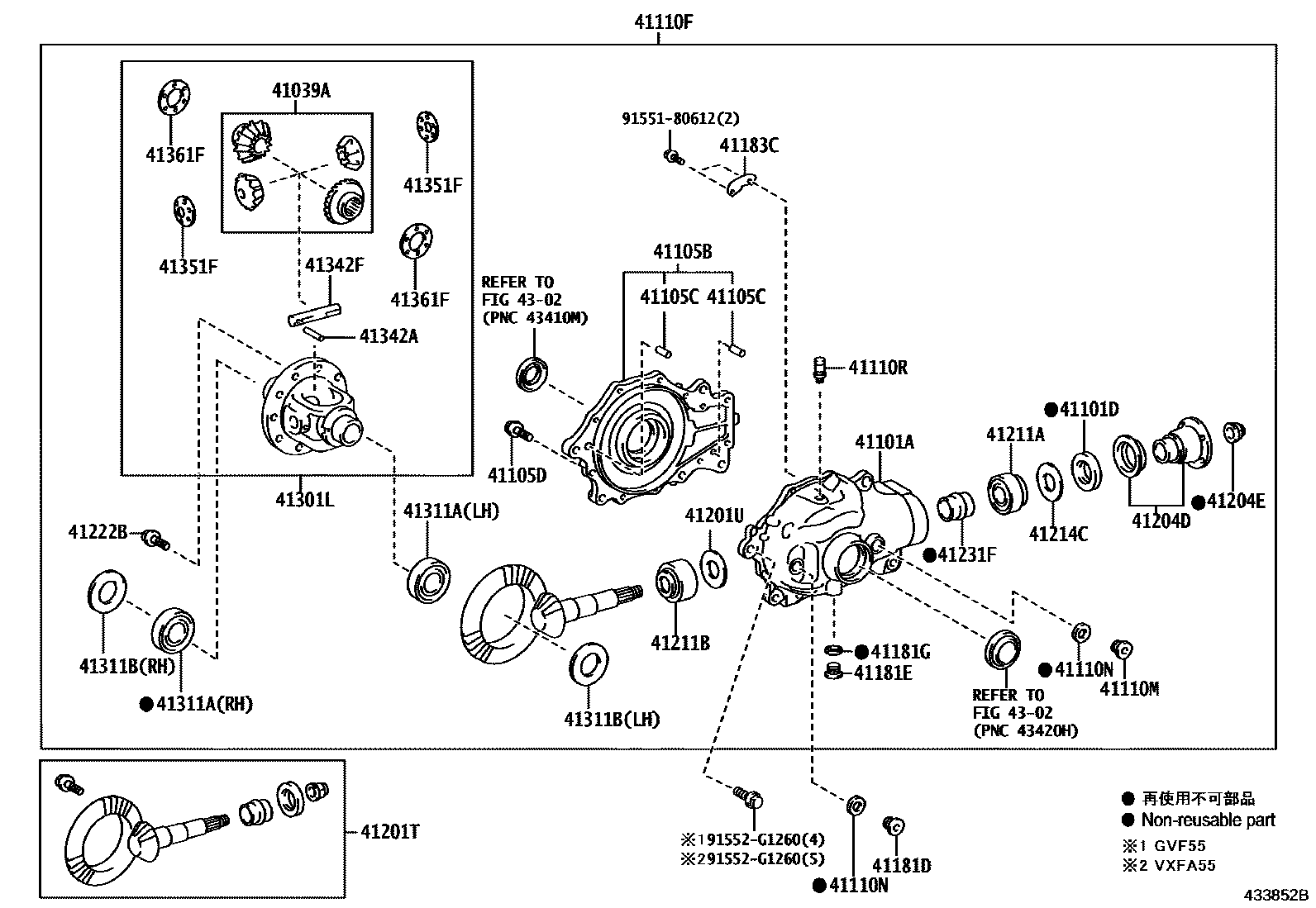

FRONT AXLE HOUSING & DIFFERENTIAL
41039AGEAR KIT, DIFFERENTIAL
41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT
41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)
41105BRETAINER SUB-ASSY, FRONT DIFFERENTIAL CARRIER
41105CPIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER RETAINER)
41105DBOLT (FOR FRONT DIFFERENTIAL CARRIER RETAINER)
41110FCARRIER ASSY, DIFFERENTIAL, FRONT
*FGR=47:16=2.937
*FGR=47:12=3.916
41110MPLUG, FRONT DIFFERENTIAL FILLER
41110NGASKET, FRONT DIFFERENTIAL FILLER PLUG
41110RPLUG, BREATHER (FOR FRONT DIFFERENTIAL)
41181DPLUG (FOR FRONT DIFFERENTIAL FILLER)
41181EPLUG (FOR FRONT DIFFERENTIAL DRAIN)
41181GGASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG)
41183CDEFLECTOR, FRONT DIFFERENTIAL BREATHER PLUG OIL
41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT
*FGR=47:16=2.937
*FGR=47:12=3.916
41201USHIM (FOR FRONT DIFF DRIVE PINION SPACER FRONT ADJUST)
T=1.00
T=1.02
T=1.04
T=1.06
T=1.08
T=1.10
T=1.12
T=1.14
T=1.16
T=1.18
T=1.20
T=1.22
T=1.24
T=1.26
T=1.28
T=1.30
T=1.32
T=1.34
T=1.36
T=1.38
T=1.40
T=1.42
T=1.44
T=1.46
T=1.48
41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT
41204ENUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41301LCASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1
41311ABEARING (FOR FRONT DIFFERENTIAL CASE)
LH
RH
41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)
T=2.20,RH
T=2.22,RH
T=2.24,RH
T=2.26,RH
T=2.28,RH
T=2.30,RH
T=2.32,RH
T=2.34,RH
T=2.36,RH
T=2.38,RH
T=2.40,RH
T=2.42,RH
T=2.44,RH
T=2.46,RH
T=2.48,RH
T=2.50,RH
T=2.52,RH
T=2.54,RH
T=2.56,RH
T=2.58,RH
T=2.60,RH
T=2.62,RH
T=2.64,RH
T=2.66,RH
T=2.68,RH
T=2.70,RH
T=2.72,RH
T=2.74,RH
T=2.76,RH
T=2.78,RH
T=2.80,RH
T=2.82,RH
T=2.84,RH
T=2.86,RH
T=2.88,RH
T=2.90,RH
T=2.92,RH
T=2.94,RH
T=2.96,RH
T=2.98,RH
T=3.00,RH
T=3.02,RH
T=3.04,RH
T=3.06,RH
T=2.10,RH
T=2.12,RH
T=2.14,RH
T=2.16,RH
T=2.18,RH
T=2.16,LH
T=2.18,LH
T=2.20,LH
T=2.22,LH
T=2.24,LH
T=2.26,LH
T=2.28,LH
T=2.30,LH
T=2.32,LH
T=2.34,LH
T=2.36,LH
T=2.38,LH
T=2.40,LH
T=2.42,LH
T=2.44,LH
T=2.46,LH
T=2.48,LH
T=2.50,LH
T=2.52,LH
T=2.54,LH
T=2.56,LH
T=2.58,LH
T=2.60,LH
T=2.62,LH
T=2.64,LH
T=2.66,LH
T=2.68,LH
T=2.70,LH
T=2.72,LH
T=2.74,LH
T=2.76,LH
T=2.78,LH
T=2.80,LH
T=2.82,LH
T=2.84,LH
T=2.86,LH
T=2.88,LH
T=2.90,LH
T=2.92,LH
T=2.94,LH
T=2.96,LH
T=2.98,LH
T=3.00,LH
T=3.02,LH
T=3.04,LH
T=2.12,LH
T=2.14,LH
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.0
T=1.1
T=1.2
T=1.3
4302FRONT DRIVE SHAFT
9155180612
main91551-80612
91552G1260
main91552-G1260
33 parts on this diagram · 1 diagram in section
