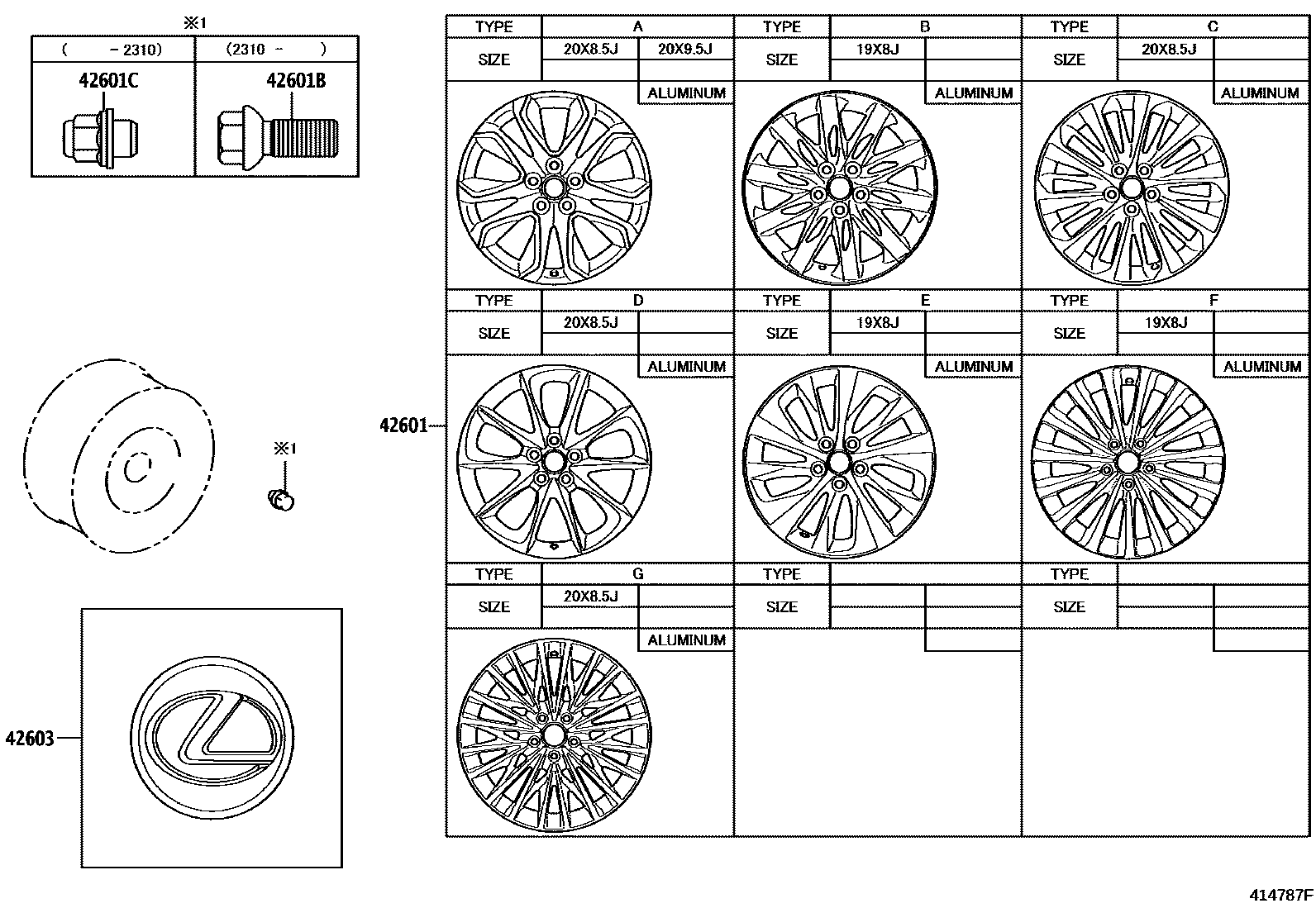

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-50660iGVF5#,VXFA5#201710-202010

19X8J,*MGMP,TYPE E:REFER ILLUST.

main42611-50890iGVF5#,VXFA5#202010-202310

19X8J,TYPE E:REFER ILLUST.

main42611-50A10iGVF55202310-202410

19X8J,TYPE E:REFER ILLUST.

42601BBOLT, HUB (FOR AXLE)

main90942-02103iGVF55,VXFA5#202310

42601CNUT, HUB (FOR AXLE)

main90942-01121iGVF5#,VXFA5#201710-202310

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-50380iGVF5#,VXFA5#201710-201912

*ALU

main42603-50381iGVF5#,VXFA5#202001-202310

*ALU

main42603-53130iGVF55,VXFA5#202310

*ALU

4 parts on this diagram · 2 diagrams in section
