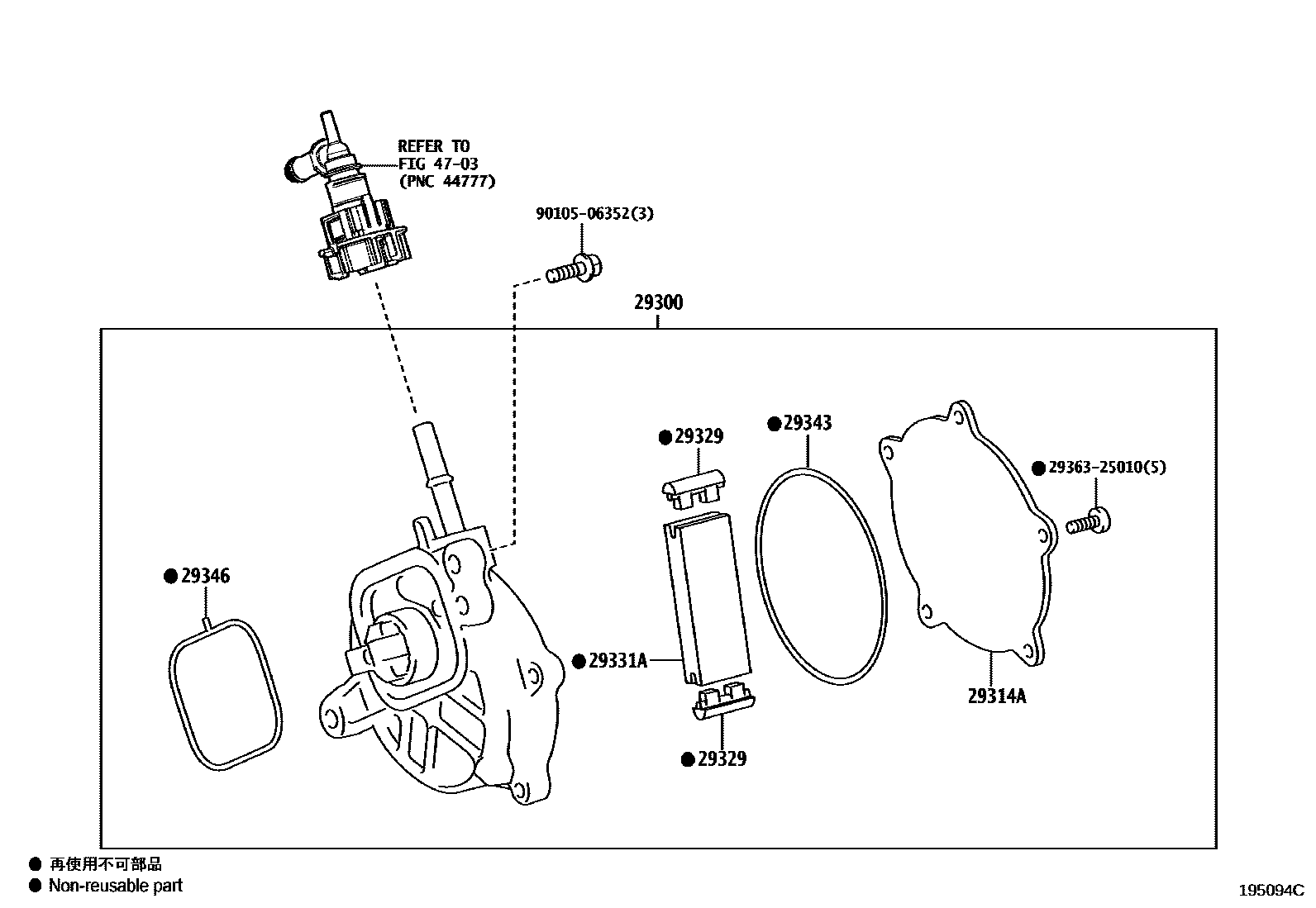

VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-25011iV35AFTS..VXFA5#201712-202010

main29300-25012iV35AFTS..VXFA5#202111

29314ACOVER, END

main29314-25010iV35AFTS..VXFA5#201712-202010

29329CAP, VACUUM PUMP VANE

main29329-25011×2iV35AFTS..VXFA5#201712-202010

29331AVANE, VACUUM PUMP

main29331-25010iV35AFTS..VXFA5#201712-202010

main29331-37010iV35AFTS..VXFA5#202111

29343RING, O VACUUM PUMP, NO.1

main29343-25010iV35AFTS..VXFA5#201712-202010

29346RING, O VACUUM PUMP COVER

main29346-25010iV35AFTS..VXFA5#201712-202010

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010

9010506352

main90105-06352

9 parts on this diagram · 1 diagram in section
