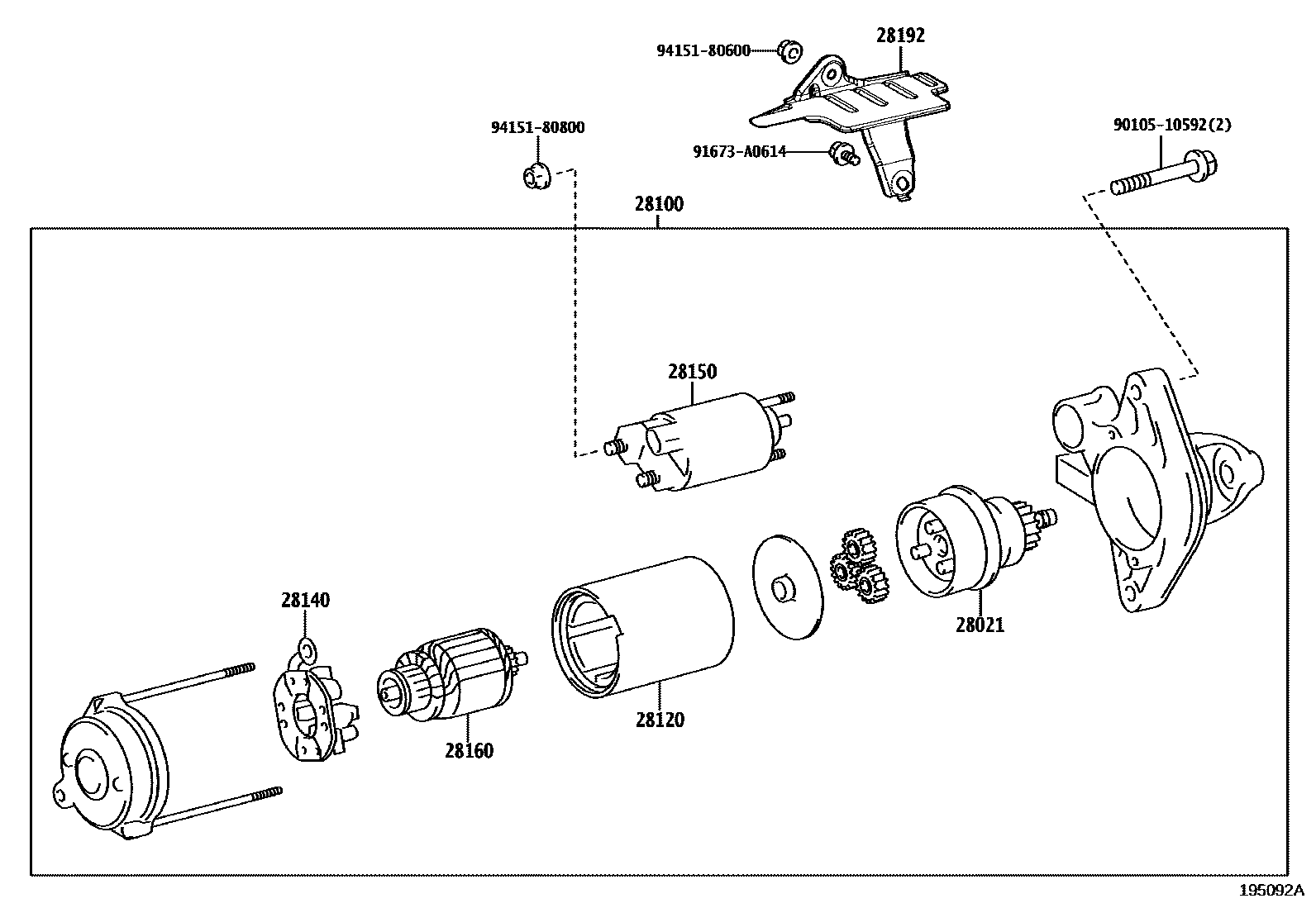

STARTER

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-70080iV35AFTS..VXFA5#201712-202010

28100STARTER ASSY

main28100-70080iV35AFTS..VXFA5#201712-202010

12V 1.6KW

28120YOKE ASSY, STARTER

main28120-70070iV35AFTS..VXFA5#201712-202010

28140HOLDER ASSY, STARTER BRUSH

main28140-37050iV35AFTS..VXFA5#201712-202010

28150SWITCH ASSY, MAGNET STARTER

main28150-38040iV35AFTS..VXFA5#201712-202010

28160ARMATURE ASSY, STARTER

main28160-37050iV35AFTS..VXFA5#201712-201907

main28160-75210iV35AFTS..VXFA5#201907-202010

28192COVER, STARTER

main28192-70010iV35AFTS..VXFA5#201712-202010

9010510592

main90105-10592

91673A0614

main91673-A0614

9415180600

main94151-80600

9415180800

main94151-80800

11 parts on this diagram · 1 diagram in section
