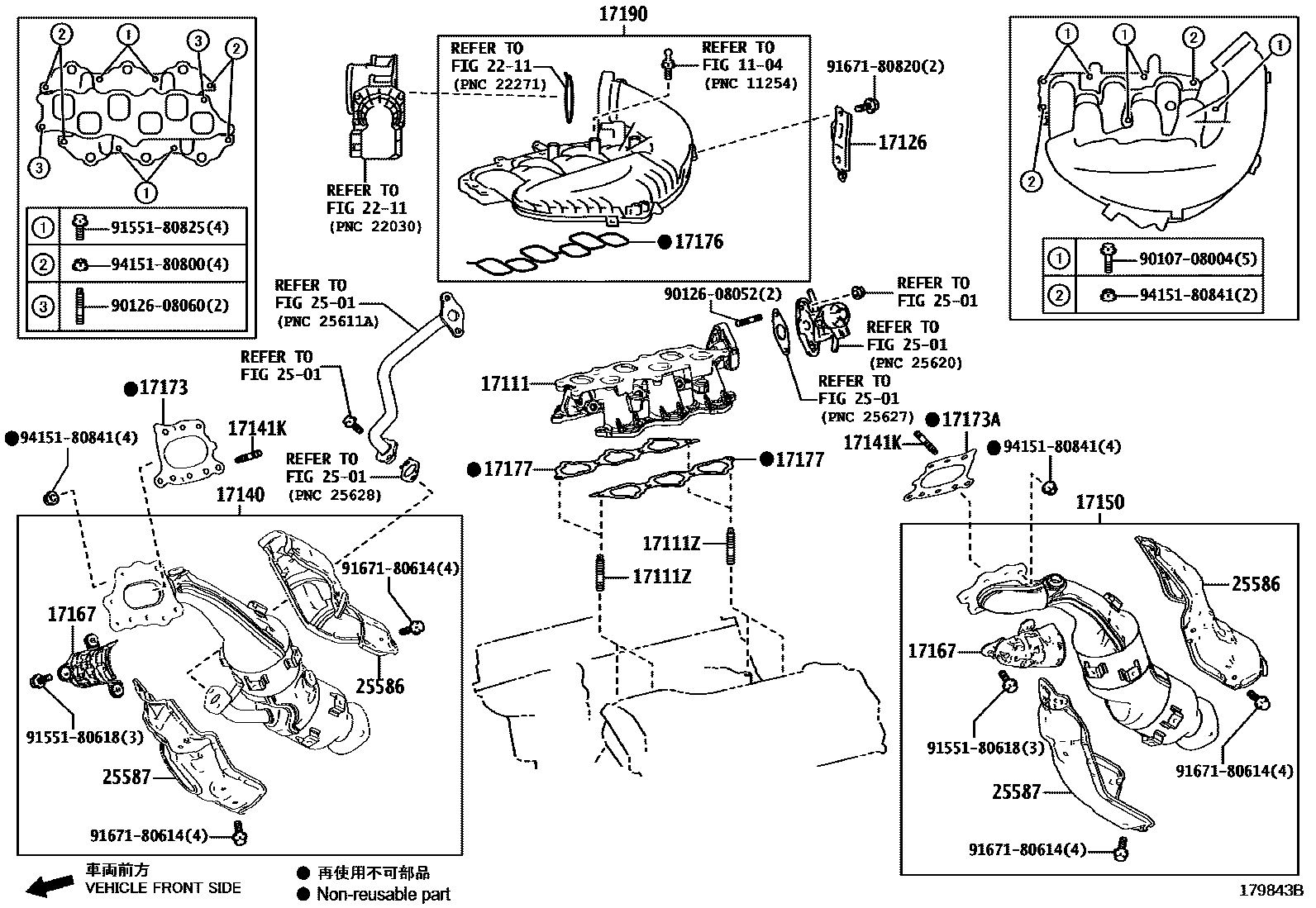

MANIFOLD

0001 1 0002 1AIR TUBE,AIR INLET DUCT 0003 1MANIFOLD,INTAKE AIR SURGE TAN0004 1MANIFOLD,INTAKE AIR SURGE TAN0005 1CONVERTER,TURBOCHARGER 0006 1CONVERTER,TURBOCHARGER 0007 1TURBOCHARGER GASKET KIT

1104CYLINDER HEAD

→ Go to FIG 11-04

17111MANIFOLD, INTAKE

main17111-70140iV35AFTS..VXFA5#201712-202010

main17111-70150iV35AFTS..VXFA5#202010

main17120-31080i8GRFXS..GVF50202010-202310

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-08052×4i8GRFXS..GVF5#201710-202010

17126STAY, SURGE TANK, NO.2

main17126-31070i8GRFXS..GVF5#201710-202010

main17126-70050iV35AFTS..VXFA5#201712-202010

17140MANIFOLD ASSY, EXHAUST, RH

main17140-31A80i8GRFXS..GVF50201710-202010

*114=*477

main17140-31C20i8GRFXS..GVF55202010-202312

*114=*538

main17140-31C21i8GRFXS..GVF55202401

*114=*719

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90126-08052×8i8GRFXS..GVF5#201710-202010

17150MANIFOLD ASSY, EXHAUST, LH

main17150-31A80i8GRFXS..GVF50201710-202010

*114=*478

main17150-31C20i8GRFXS..GVF55202010-202312

*114=*539

main17150-31C21i8GRFXS..GVF55202401

*114=*720

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-31120i8GRFXS..GVF50202010-202310

RH BANK

main17167-31160i8GRFXS..GVF5#201710-202010

LH BANK

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-31070i8GRFXS..GVF5#201710-202010

17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH

main17173-31070i8GRFXS..GVF5#201710-202010

17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD

main17176-31150i8GRFXS..GVF50202010-202310

main17176-70020iV35AFTS..VXFA5#201712-202010

main17176-70030iV35AFTS..VXFA5#202010

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-31070×2i8GRFXS..GVF5#201710-202010

main17177-70061×2iV35AFTS..VXFA5#201712-201803

main17177-70062×2iV35AFTS..VXFA5#201804-202010

main17177-70070×2iV35AFTS..VXFA5#202010

17190TANK ASSY, INTAKE AIR SURGE

main17190-31301i8GRFXS..GVF5#201710-202010

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

25586INSULATOR, MANIFOLD CONVERTER, NO.1

main25586-31060i8GRFXS..GVF55202010

RH BANK

main25586-31080i8GRFXS..GVF50202010-202310

LH BANK

main25586-31110i8GRFXS..GVF55201710-202010

LH BANK

25587INSULATOR, MANIFOLD CONVERTER, NO.2

main25587-31020i8GRFXS..GVF50202010-202310

RH BANK

main25587-31030i8GRFXS..GVF50202010-202310

LH BANK

main25587-31050i8GRFXS..GVF55202010

LH BANK

9010708004

main90107-08004

9012608052

main90126-08052

9012608060

main90126-08060

9155180618

main91551-80618

9155180825

main91551-80825

9167180614

main91671-80614

9167180820

main91671-80820

9415180800

main94151-80800

9415180841

main94151-80841

26 parts on this diagram · 7 diagrams in section
