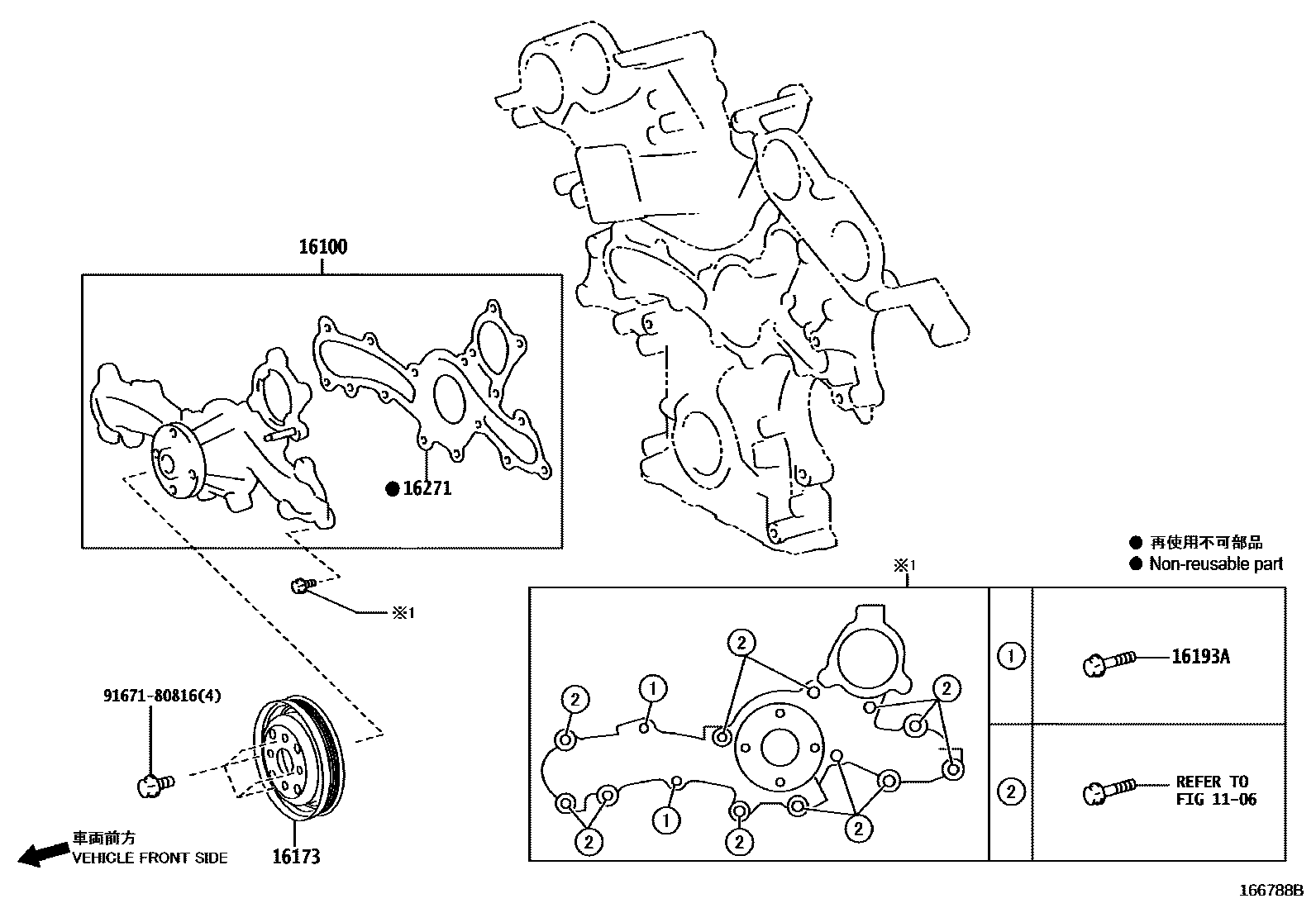

WATER PUMP

0001 1 0002 1

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

16100PUMP ASSY, ENGINE WATER

main16100-39615i8GRFXS..GVF5#201710-202004

main16100-39616i8GRFXS..GVF5#202004-202010

main16100-79505iV35AFTS..VXFA5#201712-202010

16173PULLEY, WATER PUMP

main16173-31040i8GRFXS..GVF5#201710-202003

main16173-31041i8GRFXS..GVF5#202010-202012

main16173-31042i8GRFXS..GVF55202101

main16173-70020iV35AFTS..VXFA5#201712-202002

main16173-70021iV35AFTS..VXFA5#202010

16193ABOLT(FOR WATER PUMP COVER)

main16193-31080×2i8GRFXS..GVF5#201710-202010

16271GASKET, WATER PUMP

main16271-31050i8GRFXS..GVF55202010

main16271-70010iV35AFTS..VXFA5#201712-202010

NO.1:REFER ILLUST.

main16271-70020×4iV35AFTS..VXFA5#202010

NO.2:REFER ILLUST.

9167180816

main91671-80816

6 parts on this diagram · 2 diagrams in section
