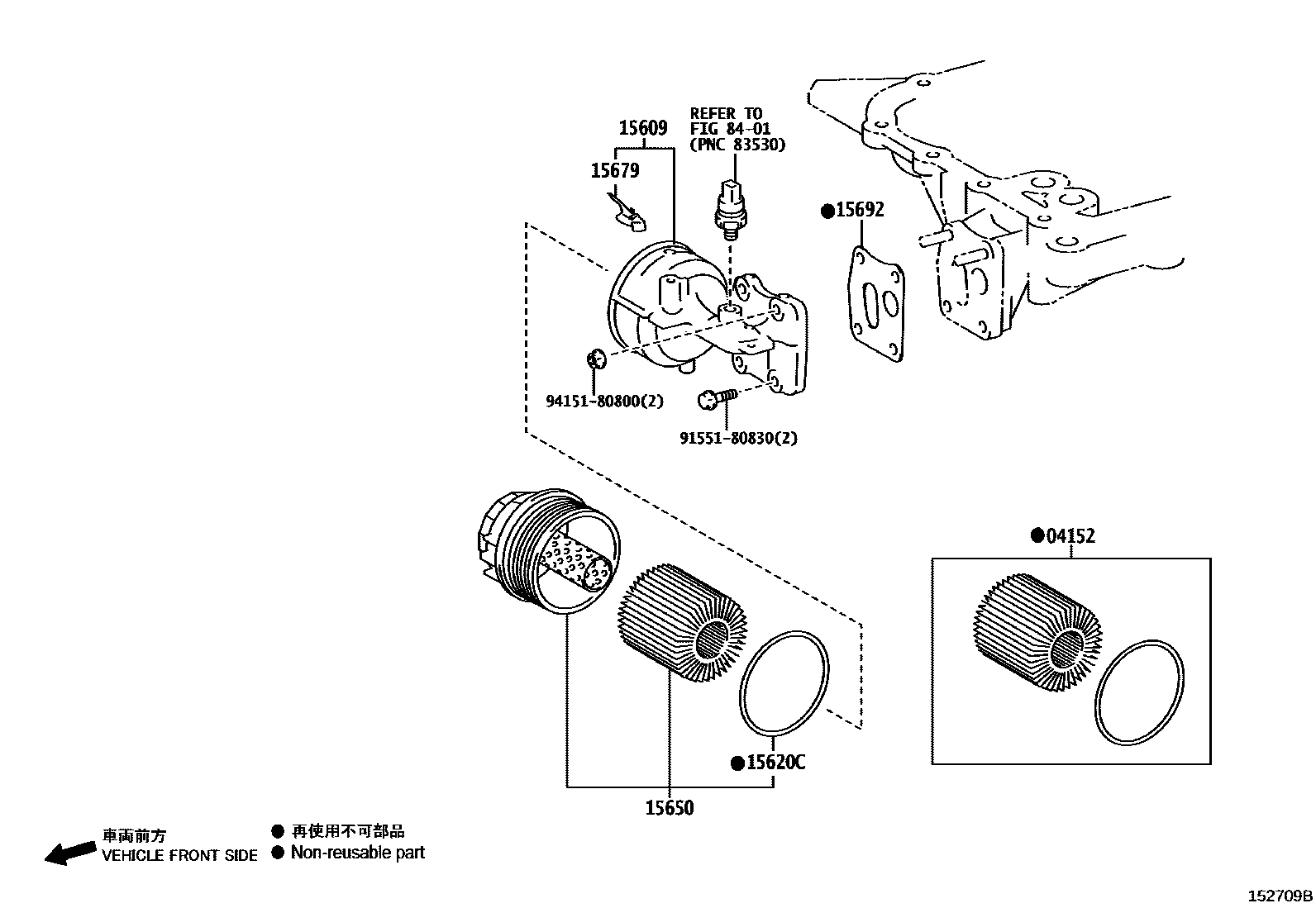

OIL FILTER

0001 1 0002 1 0003 1 0004 1

04152ELEMENT KIT, OIL FILTER

main04152-31090i8GRFXS..GVF55202010

main04152-31110i8GRFXS..GVF50201710-202010

main04152-38010iV35AFTS..VXFA55201712-202010

15609BRACKET SUB-ASSY, OIL FILTER

main15609-31051i8GRFXS..GVF50201710-202010

main15609-31080i8GRFXS..GVF55202010

main15609-70010iV35AFTS..VXFA50201712-202010

main15609-70020iV35AFTS..VXFA55202010

15620CAP ASSY, OIL FILTER

main15620-31060i8GRFXS..GVF55202108

ALUMINUM

main15620-36020i8GRFXS..GVF55201710-202010

15620CGASKET(FOR OIL FILTER CAP)

main90301-79006i8GRFXS..GVF55; V35AFTS..VXFA55202010

15650CAP ASSY, OIL FILTER W/ELEMEMT

main15650-31060i8GRFXS..GVF50201710-202010

main15650-38020iV35AFTS..VXFA55201712-202010

15679CLIP, OIL FILTER BRACKET

main15679-37011i8GRFXS..GVF50202010-202310

15692GASKET, OIL FILTER BRACKET

main15692-31080i8GRFXS..GVF50201710-202010

main15692-31120i8GRFXS..GVF55201710-202010

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9155180830

main91551-80830

9415180800

main94151-80800

10 parts on this diagram · 4 diagrams in section
