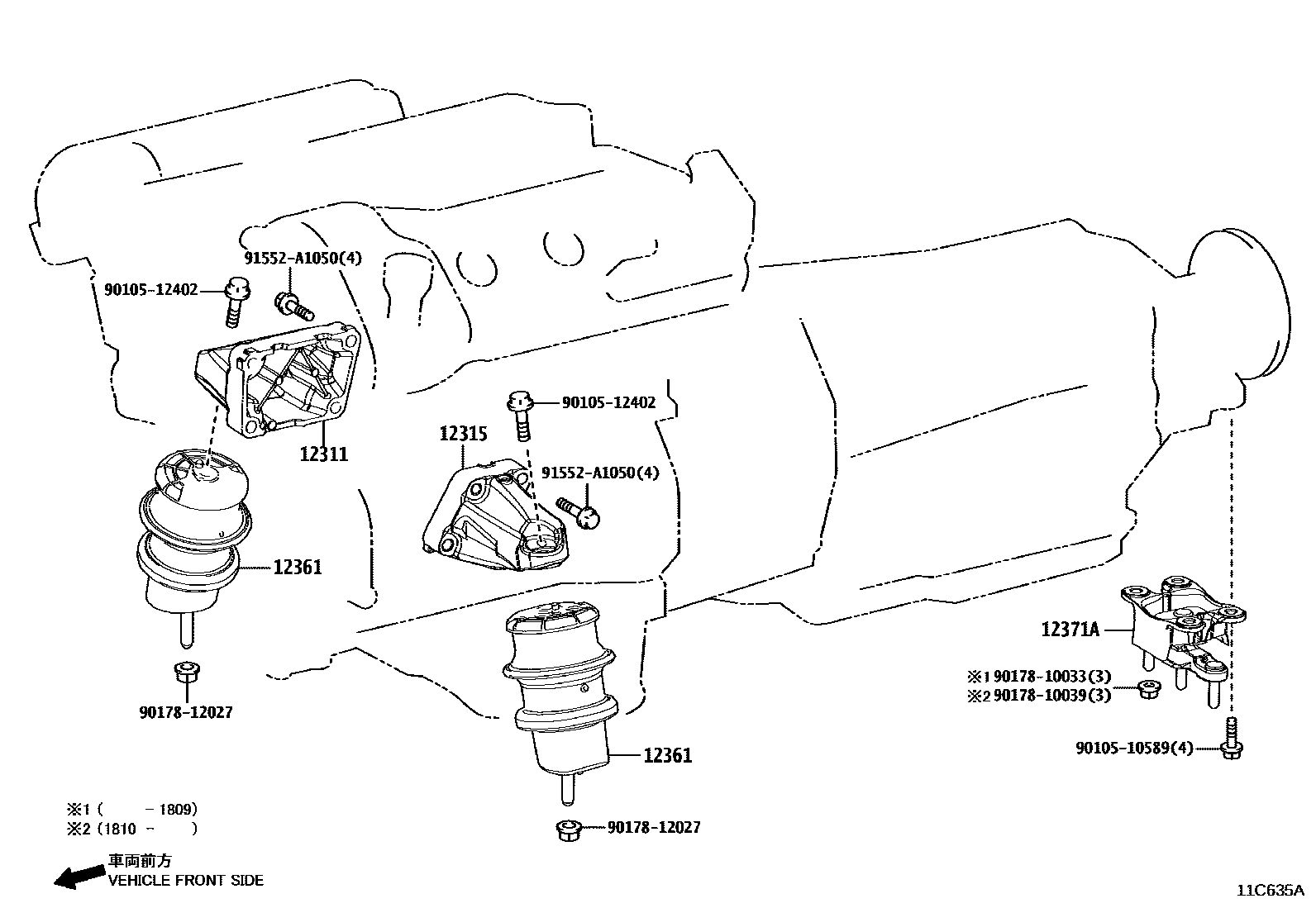

MOUNTING

0001 1 0002 1 0003 1 0004 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-31230i8GRFXS..GVF50201710-202010

main12311-31240i8GRFXS..GVF55202010

main12311-70170iV35AFTS..VXFA50202010

main12311-70180iV35AFTS..VXFA55201712-202010

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-31220i8GRFXS..GVF50202010-202310

main12315-31230i8GRFXS..GVF55201710-202010

main12315-70140iV35AFTS..VXFA50202010

main12315-70150iV35AFTS..VXFA55202010

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-31500×2i8GRFXS..GVF50202010-202310

main12361-31510×2i8GRFXS..GVF55201710-202004

main12361-31560×2i8GRFXS..GVF55202005-202010

main12361-70250×2iV35AFTS..VXFA50202010

main12361-70260×2iV35AFTS..VXFA55201712-202004

main12361-70310×2iV35AFTS..VXFA55202005-202010

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-31420i8GRFXS..GVF50201710-202010

main12371-31430i8GRFXS..GVF55201710-202010

main12371-70110iV35AFTS..VXFA50202010

main12371-70120iV35AFTS..VXFA55202010

9010510589

main90105-10589

9010512402

main90105-12402

9017810033

main90178-10033

9017810039

main90178-10039

9017812027

main90178-12027

91552A1050

main91552-A1050

10 parts on this diagram · 4 diagrams in section
