EPC Data

MIRROR

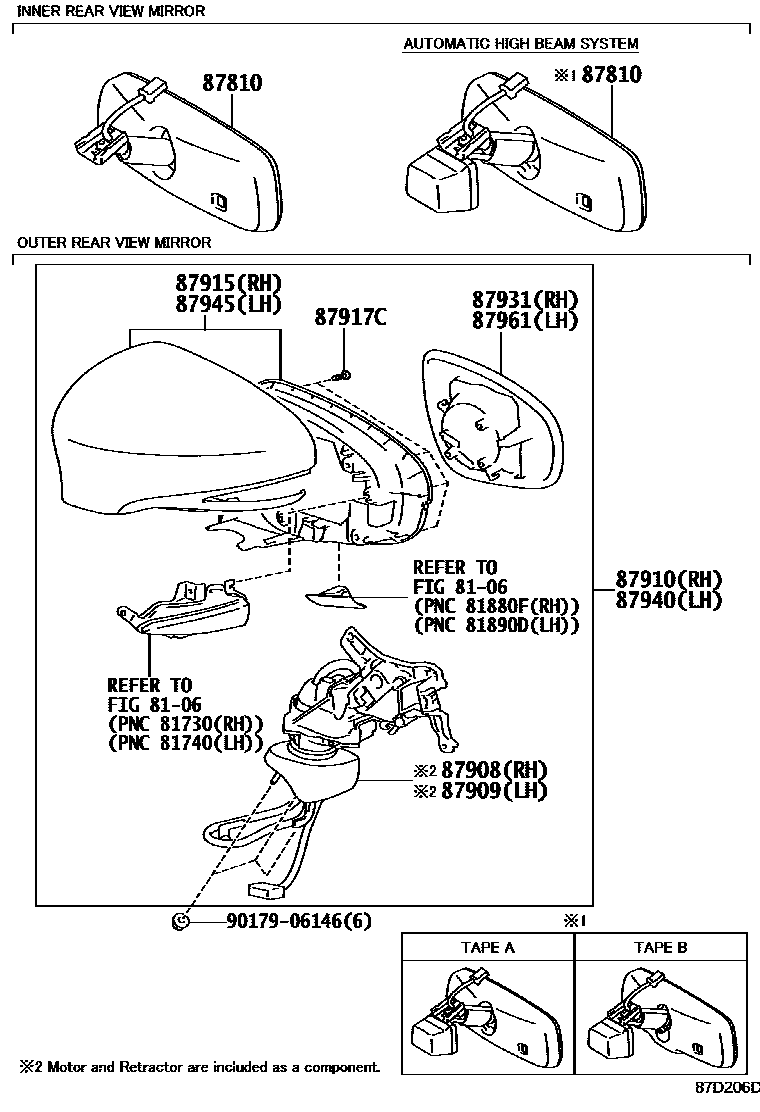

Parts diagram
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
→ Go to FIG 81-06
87810MIRROR ASSY, INNER REAR VIEW
main87810-0WD10i201309-201708
KOREA SPEC
main87810-0WD30supersedes 87810-0WC70i201209-201708
HEADLAMP-DISCHARGE & *AFLS & *AHB; HEADLAMP-LED & *AFLS & *AHB
main87810-0WD50supersedes 87810-0WC70i201209-201308
HEADLAMP-DISCHARGE & *AFLS & *AHS; HEADLAMP-LED & *AFLS & *AHS
main87810-0WD90i201209-201309
KOREA SPEC&HEADLAMP-DISCHARGE & *AFLS & *AHB
main87810-0WE01i201309-201504
KOREA SPEC&HEADLAMP-LED & *AFLS & *AHS
main87810-0WE02i201505-201708
KOREA SPEC&HEADLAMP-LED & *AFLS & *AHS
main87810-0WE30i201209-201309
PRE-COLLISION SYSTEM-WITH(*PB)&HEADLAMP-DISCHARGE & *AFLS & *AHB
87908ACTUATOR ASSY, OUTER MIRROR, RH
main87908-50760-A0supersedes 87908-50710-A0i201209-201307
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),WHITE PEARL CS.,077; KOREA SPEC&BLIND SPOT MONITOR-WITH,WHITE PEARL CS.,077
main87908-50760-A1supersedes 87908-50711-A1i201209-201307
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),WHITE NOVA GF.,083; KOREA SPEC&BLIND SPOT MONITOR-WITH,WHITE NOVA GF.,083
main87908-50760-B0supersedes 87908-50711-B0i201209-201307
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),MERCURY GRAY MC.,1H9; KOREA SPEC&BLIND SPOT MONITOR-WITH,MERCURY GRAY MC.,1H9
main87908-50760-B1supersedes 87908-50711-B1i201209-201307
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC SILVER,1J2; KOREA SPEC&BLIND SPOT MONITOR-WITH,SONIC SILVER,1J2
main87908-50760-C0i201209-201307
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,212; KOREA SPEC&BLIND SPOT MONITOR-WITH,BLACK,212
main87908-50760-C1supersedes 87908-50710-C1i201209-201307
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK OPAL MC.,214; KOREA SPEC&BLIND SPOT MONITOR-WITH,BLACK OPAL MC.,214
main87908-50760-C2supersedes 87908-50710-C2i201209-201307
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),STARLIGHT BLACK GF.,217; KOREA SPEC&BLIND SPOT MONITOR-WITH,STARLIGHT BLACK GF.,217
main87908-50760-D0supersedes 87908-50711-D0i201209-201307
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),RED MC.CS.,3R1; KOREA SPEC&BLIND SPOT MONITOR-WITH,RED MC.CS.,3R1
main87908-50760-E0supersedes 87908-50711-E0i201209-201307
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SLEEK ECRU ME.,4U7; KOREA SPEC&BLIND SPOT MONITOR-WITH,SLEEK ECRU ME.,4U7
main87908-50760-E1i201209-201307
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),FIRE AGATE M.M.,4V3; KOREA SPEC&BLIND SPOT MONITOR-WITH,FIRE AGATE M.M.,4V3
main87908-50760-J0supersedes 87908-50710-J0i201209-201307
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),LAPIS LAZULI MC.,8V3; KOREA SPEC&BLIND SPOT MONITOR-WITH,LAPIS LAZULI MC.,8V3
main87908-50761-A0i201410-201509
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),WHITE PEARL CS.,077; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),WHITE PEARL CS.,077; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),WHITE PEARL CS.,077
main87908-50761-A1i201307-201410
KOREA SPEC&BLIND SPOT MONITOR-WITH,WHITE NOVA GF.,083
main87908-50761-A2i201509
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIQ QUARTZ,085; KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIQ QUARTZ,085; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIQ QUARTZ,085; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIQ QUARTZ,085
main87908-50761-B0i201410
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),MERCURY GRAY MC.,1H9; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),MERCURY GRAY MC.,1H9; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),MERCURY GRAY MC.,1H9
main87908-50761-B1i201410
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC SILVER,1J2; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC SILVER,1J2; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC SILVER,1J2
main87908-50761-B2i201410
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC TITANIUM,1J7; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC TITANIUM,1J7; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC TITANIUM,1J7
main87908-50761-C0i201410
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,212; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,212; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,212
main87908-50761-C1i201410-201609
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK OPAL MC.,214; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK OPAL MC.,214; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK OPAL MC.,214
main87908-50761-C2i201410-201609
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),STARLIGHT BLACK GF.,217; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),STARLIGHT BLACK GF.,217; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),STARLIGHT BLACK GF.,217
main87908-50761-C3i201609
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),GRAPHITE BLACK GF.,223; KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),GRAPHITE BLACKGF.,223; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),GRAPHITE BLACK GF.,223; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),GRAPHITE BLACK GF.,223
main87908-50761-D0i201410
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),RED MC.CS.,3R1; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),REDMC.CS.,3R1; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),REDMC.CS.,3R1
main87908-50761-E0i201410
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SLEEK ECRU ME.,4U7; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SLEEK ECRU ME.,4U7; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SLEEK ECRU ME.,4U7
main87908-50761-E1i201307-201410
KOREA SPEC&BLIND SPOT MONITOR-WITH,FIRE AGATE M.M.,4V3
main87908-50761-E2i201609
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),AMBER CS.,4X2; KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),AMBER CS.,4X2; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),AMBER CS.,4X2; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),AMBER CS.,4X2
main87908-50761-J0i201307
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),LAPIS LAZULI MC.,8V3
main87908-50761-J1supersedes 87908-50711-J1i201609
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),DEEP BLUE MC.,8X5; KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),DEEP BLUE MC.,8X5; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),DEEPBLUE MC.,8X5; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),DEEPBLUE MC.,8X5
87909ACTUATOR ASSY, OUTER MIRROR, LH
main87909-50710-A0i201209-201307
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),WHITE PEARL CS.,077; KOREA SPEC&BLIND SPOT MONITOR-WITH,WHITE PEARL CS.,077
main87909-50710-A1supersedes 87909-50661-A1i201209-201307
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),WHITE NOVA GF.,083; KOREA SPEC&BLIND SPOT MONITOR-WITH,WHITE NOVA GF.,083
main87909-50710-B0supersedes 87909-50661-B0i201209-201307
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),MERCURY GRAY MC.,1H9; KOREA SPEC&BLIND SPOT MONITOR-WITH,MERCURY GRAY MC.,1H9
main87909-50710-B1supersedes 87909-50661-B1i201209-201307
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC SILVER,1J2; KOREA SPEC&BLIND SPOT MONITOR-WITH,SONIC SILVER,1J2
main87909-50710-C0supersedes 87909-50661-C0i201209-201307
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,212; KOREA SPEC&BLIND SPOT MONITOR-WITH,BLACK,212
main87909-50710-C1i201209-201307
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK OPAL MC.,214; KOREA SPEC&BLIND SPOT MONITOR-WITH,BLACK OPAL MC.,214
main87909-50710-C2i201209-201307
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),STARLIGHT BLACK GF.,217; KOREA SPEC&BLIND SPOT MONITOR-WITH,STARLIGHT BLACK GF.,217
main87909-50710-D0supersedes 87909-50661-D0i201209-201307
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),RED MC.CS.,3R1; KOREA SPEC&BLIND SPOT MONITOR-WITH,RED MC.CS.,3R1
main87909-50710-E0supersedes 87909-50661-E0i201209-201307
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SLEEK ECRU ME.,4U7; KOREA SPEC&BLIND SPOT MONITOR-WITH,SLEEK ECRU ME.,4U7
main87909-50710-E1supersedes 87909-50660-E1i201209-201307
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),FIRE AGATE M.M.,4V3; KOREA SPEC&BLIND SPOT MONITOR-WITH,FIRE AGATE M.M.,4V3
main87909-50710-J0i201209-201307
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),LAPIS LAZULI MC.,8V3; KOREA SPEC&BLIND SPOT MONITOR-WITH,LAPIS LAZULI MC.,8V3
main87909-50711-A0i201410-201509
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),WHITE PEARL CS.,077; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),WHITE PEARL CS.,077; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),WHITE PEARL CS.,077
main87909-50711-A1i201307-201410
KOREA SPEC&BLIND SPOT MONITOR-WITH,WHITE NOVA GF.,083
main87909-50711-A2supersedes 87909-50661-A2i201509
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIQ QUARTZ,085; KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIQ QUARTZ,085; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIQ QUARTZ,085; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIQ QUARTZ,085
main87909-50711-B0i201410
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),MERCURY GRAY MC.,1H9; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),MERCURY GRAY MC.,1H9; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),MERCURY GRAY MC.,1H9
main87909-50711-B1i201410
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC SILVER,1J2; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC SILVER,1J2; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC SILVER,1J2
main87909-50711-B2i201410
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC TITANIUM,1J7; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC TITANIUM,1J7; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC TITANIUM,1J7
main87909-50711-C0i201410
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,212; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,212; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,212
main87909-50711-C1i201410-201609
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK OPAL MC.,214; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK OPAL MC.,214; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK OPAL MC.,214
main87909-50711-C2i201410-201609
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),STARLIGHT BLACK GF.,217; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),STARLIGHT BLACK GF.,217; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),STARLIGHT BLACK GF.,217
main87909-50711-C3supersedes 87909-50661-C3i201609
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),GRAPHITE BLACK GF.,223; KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),GRAPHITE BLACKGF.,223; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),GRAPHITE BLACK GF.,223; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),GRAPHITE BLACK GF.,223
main87909-50711-D0i201410
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),RED MC.CS.,3R1; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),REDMC.CS.,3R1; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),REDMC.CS.,3R1
main87909-50711-E0i201410
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SLEEK ECRU ME.,4U7; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SLEEK ECRU ME.,4U7; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SLEEK ECRU ME.,4U7
main87909-50711-E1i201410-201609
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),FIRE AGATE M.M.,4V3; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),FIREAGATE M.M.,4V3; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),FIREAGATE M.M.,4V3
main87909-50711-E2i201609
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),AMBER CS.,4X2; KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),AMBER CS.,4X2; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),AMBER CS.,4X2; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),AMBER CS.,4X2
main87909-50711-J0i201307
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),LAPIS LAZULI MC.,8V3
main87909-50711-J1i201609
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),DEEP BLUE MC.,8X5; KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),DEEP BLUE MC.,8X5; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),DEEPBLUE MC.,8X5; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),DEEPBLUE MC.,8X5
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-50750-A0supersedes 87910-50690-A0i201209-201306
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),WHITE PEARL CS.,077; KOREA SPEC&BLIND SPOT MONITOR-WITH,WHITE PEARL CS.,077
main87910-50750-A1supersedes 87910-50691-A1i201209-201306
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),WHITE NOVA GF.,083; KOREA SPEC&BLIND SPOT MONITOR-WITH,WHITE NOVA GF.,083
main87910-50750-B0supersedes 87910-50691-B0i201209-201306
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),MERCURY GRAY MC.,1H9; KOREA SPEC&BLIND SPOT MONITOR-WITH,MERCURY GRAY MC.,1H9
main87910-50750-B1supersedes 87910-50691-B1i201209-201306
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC SILVER,1J2; KOREA SPEC&BLIND SPOT MONITOR-WITH,SONIC SILVER,1J2
main87910-50750-C0i201209-201306
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,212; KOREA SPEC&BLIND SPOT MONITOR-WITH,BLACK,212
main87910-50750-C1supersedes 87910-50690-C1i201209-201306
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK OPAL MC.,214; KOREA SPEC&BLIND SPOT MONITOR-WITH,BLACK OPAL MC.,214
main87910-50750-C2i201209-201306
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),STARLIGHT BLACK GF.,217; KOREA SPEC&BLIND SPOT MONITOR-WITH,STARLIGHT BLACK GF.,217
main87910-50750-D0supersedes 87910-50691-D0i201209-201306
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),RED MC.CS.,3R1; KOREA SPEC&BLIND SPOT MONITOR-WITH,RED MC.CS.,3R1
main87910-50750-E0supersedes 87910-50691-E0i201209-201306
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SLEEK ECRU ME.,4U7; KOREA SPEC&BLIND SPOT MONITOR-WITH,SLEEK ECRU ME.,4U7
main87910-50750-E1i201209-201306
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),FIRE AGATE M.M.,4V3; KOREA SPEC&BLIND SPOT MONITOR-WITH,FIRE AGATE M.M.,4V3
main87910-50750-J0supersedes 87910-50690-J0i201209-201306
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),LAPIS LAZULI MC.,8V3; KOREA SPEC&BLIND SPOT MONITOR-WITH,LAPIS LAZULI MC.,8V3
main87910-50751-A0supersedes 87910-50691-A0i201307-201509
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),WHITE PEARL CS.,077
main87910-50751-A1i201307-201309
KOREA SPEC&BLIND SPOT MONITOR-WITH,WHITE NOVA GF.,083
main87910-50751-A2supersedes 87910-50691-A2i201509-201708
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC QUARTZ,085
main87910-50751-B0i201307-201309
KOREA SPEC&BLIND SPOT MONITOR-WITH,MERCURY GRAY MC.,1H9
main87910-50751-B1i201307-201309
KOREA SPEC&BLIND SPOT MONITOR-WITH,SONIC SILVER,1J2
main87910-50751-B2i201307-201309
KOREA SPEC&BLIND SPOT MONITOR-WITH,SONIC TITANIUM,1J7
main87910-50751-C0i201307-201309
KOREA SPEC&BLIND SPOT MONITOR-WITH,BLACK,083 ,212 ,2MH; KOREA SPEC&BLIND SPOT MONITOR-WITH,BLACK,212
main87910-50751-C1supersedes 87910-50691-C1i201307-201609
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK OPAL MC.,214
main87910-50751-C2supersedes 87910-50691-C2i201307-201609
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),STARLIGHT BLACK GF.,217
main87910-50751-C3supersedes 87910-50691-C3i201609-201708
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),GRAPHITE BLACK GF.,223
main87910-50751-D0i201307-201309
KOREA SPEC&BLIND SPOT MONITOR-WITH,RED MC.CS.,3R1
main87910-50751-E0supersedes 87910-50691-E0i201307-201708
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SLEEK ECRU ME.,4U7
main87910-50751-E1supersedes 87910-50691-E1i201307-201609
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),FIRE AGATE M.M.,4V3
main87910-50751-E2supersedes 87910-50691-E2i201609-201708
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),AMBER CS.,4X2
main87910-50751-J0i201307-201708
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),LAPIS LAZULI MC.,8V3
main87910-50751-J1supersedes 87910-50691-J1i201609-201708
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),DEEP BLUE MC.,8X5
main87910-50801-A0i201410-201509
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),WHITE PEARL CS.,077; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),WHITE PEARL CS.,077; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),WHITE PEARL CS.,077
main87910-50801-A1i201309-201410
KOREA SPEC&BLIND SPOT MONITOR-WITH,WHITE NOVA GF.,083
main87910-50801-A2i201509-201708
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC QUARTZ,085; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC QUARTZ,085; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC QUARTZ,085
main87910-50801-B0i201309-201410
KOREA SPEC&BLIND SPOT MONITOR-WITH,MERCURY GRAY MC.,1H9
main87910-50801-B1i201410-201708
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC SILVER,1J2; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC SILVER,1J2; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC SILVER,1J2
main87910-50801-B2i201410-201708
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC TITANIUM,1J7; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC TITANIUM,1J7; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC TITANIUM,1J7
main87910-50801-C0i201410-201708
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,212; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,212; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,212
main87910-50801-C1i201410-201609
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK OPAL MC.,214; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK OPAL MC.,214; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK OPAL MC.,214
main87910-50801-C2i201410-201609
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),STARLIGHT BLACK GF.,217; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),STARLIGHT BLACK GF.,217; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),STARLIGHT BLACK GF.,217
main87910-50801-C3i201609-201708
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),GRAPHITE BLACKGF.,223; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),GRAPHITE BLACK GF.,223; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),GRAPHITE BLACK GF.,223
main87910-50801-D0i201410-201708
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),RED MC.CS.,3R1; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),REDMC.CS.,3R1; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),REDMC.CS.,3R1
main87910-50801-E0i201410-201708
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SLEEK ECRU ME.,4U7; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SLEEK ECRU ME.,4U7; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SLEEK ECRU ME.,4U7
main87910-50801-E1i201410-201609
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),FIRE AGATE M.M.,4V3; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),FIREAGATE M.M.,4V3; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),FIREAGATE M.M.,4V3
main87910-50801-E2i201609-201708
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),AMBER CS.,4X2; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),AMBER CS.,4X2; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),AMBER CS.,4X2
main87910-50801-J0i201609-201708
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),DEEP BLUE MC.,8X5; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),DEEPBLUE MC.,8X5; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),DEEPBLUE MC.,8X5
main87910-50810-C0i201410-201509
THE CRAFTED LINE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,2MH
87915COVER, OUTER MIRROR, RH
main8791A-50710-A0i201209-201509
WHITE PEARL CS.,077
main8791A-50710-A1i201209-201708
WHITE NOVA GF.,083
main8791A-50710-A2i201509-201708
SONIQ QUARTZ,085
main8791A-50710-B0i201209-201708
MERCURY GRAY MC.,1H9
main8791A-50710-B1i201209-201708
SONIC SILVER,1J2
main8791A-50710-B2i201307-201708
SONIC TITANIUM,1J7
main8791A-50710-C0i201209-201708
BLACK,212
main8791A-50710-C1i201209-201609
BLACK OPAL MC.,214
main8791A-50710-C2i201209-201609
STARLIGHT BLACK GF.,217
main8791A-50710-C3i201609-201708
GRAPHITE BLACK GF.,223
main8791A-50710-D0i201209-201708
RED MC.CS.,3R1
main8791A-50710-E0i201209-201708
SLEEK ECRU ME.,4U7
main8791A-50710-E1i201209-201609
FIRE AGATE M.M.,4V3
main8791A-50710-E2i201609-201708
AMBER CS.,4X2
main8791A-50710-J0i201209-201307
LAPIS LAZULI MC.,8V3
main8791A-50710-J1i201609-201708
DEEP BLUE MC.,8X5
main8791A-30D10-C0i201410-201509
THE CRAFTED LINE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,2MH
87917CSCREW, OUTER MIRROR
main87917-50700×10i201209
87931OUTER MIRROR, RH
main87931-30E20i201410
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT); KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT); KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT)
main87931-33B40supersedes 87931-30C40i201209
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT)
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-50700-A0i201209-201306
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),WHITE PEARL CS.,077; KOREA SPEC&BLIND SPOT MONITOR-WITH,WHITE PEARL CS.,077
main87940-50700-A1supersedes 87940-50641-A1i201209-201306
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),WHITE NOVA GF.,083; KOREA SPEC&BLIND SPOT MONITOR-WITH,WHITE NOVA GF.,083
main87940-50700-B0supersedes 87940-50641-B0i201209-201306
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),MERCURY GRAY MC.,1H9; KOREA SPEC&BLIND SPOT MONITOR-WITH,MERCURY GRAY MC.,1H9
main87940-50700-B1supersedes 87940-50641-B1i201209-201306
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC SILVER,1J2; KOREA SPEC&BLIND SPOT MONITOR-WITH,SONIC SILVER,1J2
main87940-50700-C0supersedes 87940-50641-C0i201209-201306
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,212; KOREA SPEC&BLIND SPOT MONITOR-WITH,BLACK,212
main87940-50700-C1supersedes 87940-50640-C1i201209-201306
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK OPAL MC.,214; KOREA SPEC&BLIND SPOT MONITOR-WITH,BLACK OPAL MC.,214
main87940-50700-C2supersedes 87940-50640-C2i201209-201306
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),STARLIGHT BLACK GF.,217; KOREA SPEC&BLIND SPOT MONITOR-WITH,STARLIGHT BLACK GF.,217
main87940-50700-D0supersedes 87940-50641-D0i201209-201306
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),RED MC.CS.,3R1; KOREA SPEC&BLIND SPOT MONITOR-WITH,RED MC.CS.,3R1
main87940-50700-E0supersedes 87940-50641-E0i201209-201306
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SLEEK ECRU ME.,4U7; KOREA SPEC&BLIND SPOT MONITOR-WITH,SLEEK ECRU ME.,4U7
main87940-50700-E1supersedes 87940-50640-E1i201209-201306
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),FIRE AGATE M.M.,4V3; KOREA SPEC&BLIND SPOT MONITOR-WITH,FIRE AGATE M.M.,4V3
main87940-50700-J0i201209-201306
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),LAPIS LAZULI MC.,8V3; KOREA SPEC&BLIND SPOT MONITOR-WITH,LAPIS LAZULI MC.,8V3
main87940-50701-A0i201307-201309
KOREA SPEC&BLIND SPOT MONITOR-WITH,WHITE PEARL CS.,077
main87940-50701-A1supersedes 87940-50641-A1i201307-201708
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),WHITE NOVA GF.,083
main87940-50701-A2supersedes 87940-50641-A2i201509-201708
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC QUARTZ,085
main87940-50701-B0supersedes 87940-50641-B0i201307-201708
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),MERCURY GRAY MC.,1H9
main87940-50701-B1supersedes 87940-50641-B1i201307-201708
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC SILVER,1J2
main87940-50701-B2supersedes 87940-50641-B2i201307-201708
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC TITANIUM,1J7
main87940-50701-C0i201307-201708
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,083 ,212 ,2MH; BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,212
main87940-50701-C1i201307-201309
KOREA SPEC&BLIND SPOT MONITOR-WITH,BLACK OPAL MC.,214
main87940-50701-C2i201307-201309
KOREA SPEC&BLIND SPOT MONITOR-WITH,STARLIGHT BLACK GF.,217
main87940-50701-C3supersedes 87940-50641-C3i201609-201708
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),GRAPHITE BLACK GF.,223
main87940-50701-D0i201307-201309
KOREA SPEC&BLIND SPOT MONITOR-WITH,RED MC.CS.,3R1
main87940-50701-E0supersedes 87940-50641-E0i201307-201708
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SLEEK ECRU ME.,4U7
main87940-50701-E1i201307-201309
KOREA SPEC&BLIND SPOT MONITOR-WITH,FIRE AGATE M.M.,4V3
main87940-50701-E2supersedes 87940-50641-E2i201609-201708
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),AMBER CS.,4X2
main87940-50701-J0i201307-201309
KOREA SPEC&BLIND SPOT MONITOR-WITH,LAPIS LAZULI MC.,8V3
main87940-50701-J1supersedes 87940-50641-J1i201609-201708
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),DEEP BLUE MC.,8X5
main87940-50751-A0i201410-201509
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),WHITE PEARL CS.,077; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),WHITE PEARL CS.,077; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),WHITE PEARL CS.,077
main87940-50751-A1i201309-201410
KOREA SPEC&BLIND SPOT MONITOR-WITH,WHITE NOVA GF.,083
main87940-50751-A2i201509-201708
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC QUARTZ,085; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC QUARTZ,085; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC QUARTZ,085
main87940-50751-B0i201410-201708
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),MERCURY GRAY MC.,1H9; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),MERCURY GRAY MC.,1H9; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),MERCURY GRAY MC.,1H9
main87940-50751-B1i201410-201708
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC SILVER,1J2; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC SILVER,1J2; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC SILVER,1J2
main87940-50751-B2i201309-201410
KOREA SPEC&BLIND SPOT MONITOR-WITH,SONIC TITANIUM,1J7
main87940-50751-C0i201410-201708
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,212; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,212; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,212
main87940-50751-C1i201410-201609
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK OPAL MC.,214; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK OPAL MC.,214; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK OPAL MC.,214
main87940-50751-C2i201410-201609
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),STARLIGHT BLACK GF.,217; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),STARLIGHT BLACK GF.,217; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),STARLIGHT BLACK GF.,217
main87940-50751-C3i201609-201708
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),GRAPHITE BLACKGF.,223; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),GRAPHITE BLACK GF.,223; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),GRAPHITE BLACK GF.,223
main87940-50751-D0i201410-201708
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),RED MC.CS.,3R1; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),REDMC.CS.,3R1; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),REDMC.CS.,3R1
main87940-50751-E0i201410-201708
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SLEEK ECRU ME.,4U7; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SLEEK ECRU ME.,4U7; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SLEEK ECRU ME.,4U7
main87940-50751-E1i201410-201609
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),FIRE AGATE M.M.,4V3; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),FIREAGATE M.M.,4V3; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),FIREAGATE M.M.,4V3
main87940-50751-E2i201609-201708
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),AMBER CS.,4X2; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),AMBER CS.,4X2; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),AMBER CS.,4X2
main87940-50751-J0i201609-201708
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),DEEP BLUE MC.,8X5; KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),DEEPBLUE MC.,8X5; KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),DEEPBLUE MC.,8X5
main87940-50760-C0i201410-201509
THE CRAFTED LINE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,2MH
87945COVER, OUTER MIRROR, LH
main8794A-50660-A0i201209-201509
WHITE PEARL CS.,077
main8794A-50660-A1i201209-201708
WHITE NOVA GF.,083
main8794A-50660-A2i201509-201708
SONIQ QUARTZ,085
main8794A-50660-B0i201209-201708
MERCURY GRAY MC.,1H9
main8794A-50660-B1i201209-201708
SONIC SILVER,1J2
main8794A-50660-B2i201307-201708
SONIC TITANIUM,1J7
main8794A-50660-C0i201209-201708
BLACK,212
main8794A-50660-C1i201209-201609
BLACK OPAL MC.,214
main8794A-50660-C2i201209-201609
STARLIGHT BLACK GF.,217
main8794A-50660-C3i201609-201708
GRAPHITE BLACK GF.,223
main8794A-50660-D0i201209-201708
RED MC.CS.,3R1
main8794A-50660-E0i201209-201708
SLEEK ECRU ME.,4U7
main8794A-50660-E1i201209-201609
FIRE AGATE M.M.,4V3
main8794A-50660-E2i201609-201708
AMBER CS.,4X2
main8794A-50660-J0i201209-201307
LAPIS LAZULI MC.,8V3
main8794A-50660-J1i201609-201708
DEEP BLUE MC.,8X5
main8794A-30E00-C0i201410-201509
THE CRAFTED LINE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,2MH
87961MIRROR OUTER, LH
main87961-30F00i201410-201708
KOREA SPEC&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT); KOREA SPEC&VERSION C&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT); KOREA SPEC&VERSION L&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT)
main87961-33B30i201410-201509
THE CRAFTED LINE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT)
9017906146
main90179-06146

12 parts on this diagram · 1 diagram in section

MIRROR — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
