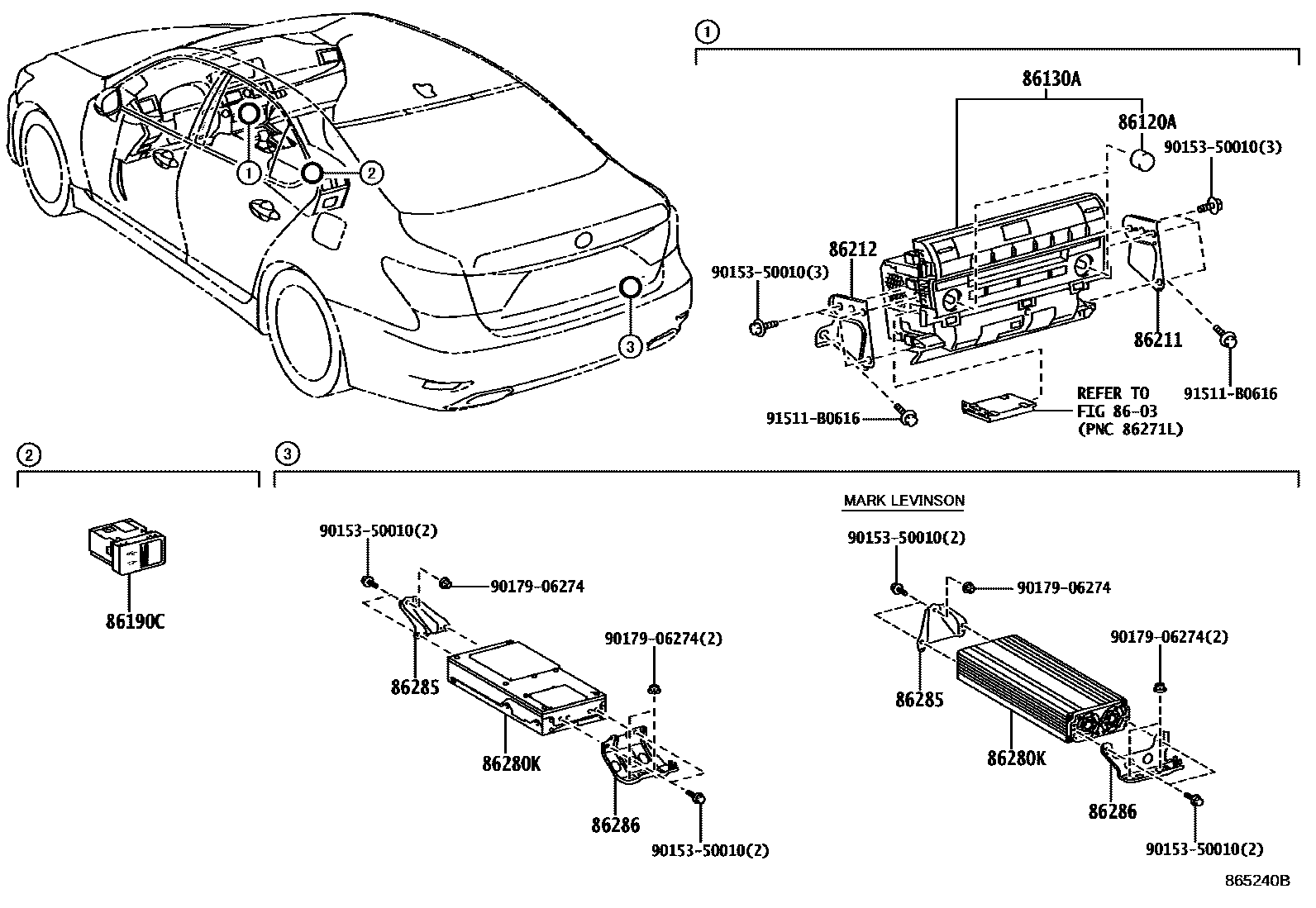

RADIO RECEIVER & AMPLIFIER & CONDENSER
8603
86120AKNOB, RADIO RECEIVER SWITCH
MEXICO SPEC&AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-HDD NAVIGATION(WITH BLUETOOTH)EXP&MAYDAY SYSTEM-WITHOUT BRAZIL TRACKING
MEXICO SPEC&AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-HDD NAVIGATION(WITH BLUETOOTH)EXP&MAYDAY SYSTEM-WITHOUT BRAZIL TRACKING
86130ARECEIVER ASSY, MULTI-MEDIA MODULE
PIONEER,ID=P10331
PIONEER,ID=P10331,MEXICO SPEC&AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-HDD NAVIGATION(WITH BLUETOOTH)EXP&MAYDAY SYSTEM-WITHOU
PIONEER,ID=P10331,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)
PIONEER,ID=P10331,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON
PIONEER,ID=P10331,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)
PIONEER,ID=P10615
PIONEER,ID=P10615,MEXICO SPEC&AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-HDD NAVIGATION(WITH BLUETOOTH)EXP&MAYDAY SYSTEM-WITHOU
PIONEER,ID=P10615,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)
PIONEER,ID=P10615,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON
PIONEER,ID=P10615,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)
PIONEER,ID=P10877
PIONEER,ID=P10877,MEXICO SPEC&AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-HDD NAVIGATION(WITH BLUETOOTH)EXP&MAYDAY SYSTEM-WITHOU
PIONEER,ID=P10877,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)
PIONEER,ID=P10877,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON
PIONEER,ID=P10877,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)
PIONEER,ID=P11209
PIONEER,ID=P11209,MEXICO SPEC&AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-HDD NAVIGATION(WITH BLUETOOTH)EXP&MAYDAY SYSTEM-WITHOU
PIONEER,ID=P11209,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)
PIONEER,ID=P11209,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON
PIONEER,ID=P11209,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)
PIONEER,ID=P11578
PIONEER,ID=P11578,MEXICO SPEC&AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-HDD NAVIGATION(WITH BLUETOOTH)EXP&MAYDAY SYSTEM-WITHOU
PIONEER,ID=P11578,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)
PIONEER,ID=P11578,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON
PIONEER,ID=P11578,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)
86211BRACKET, RADIO, NO.1
86212BRACKET, RADIO, NO.2
86285BRACKET, AMPLIFIER, NO.1
86286BRACKET, AMPLIFIER, NO.2
9015350010
main90153-50010
9017906274
main90179-06274
91511B0616
main91511-B0616
12 parts on this diagram · 3 diagrams in section
