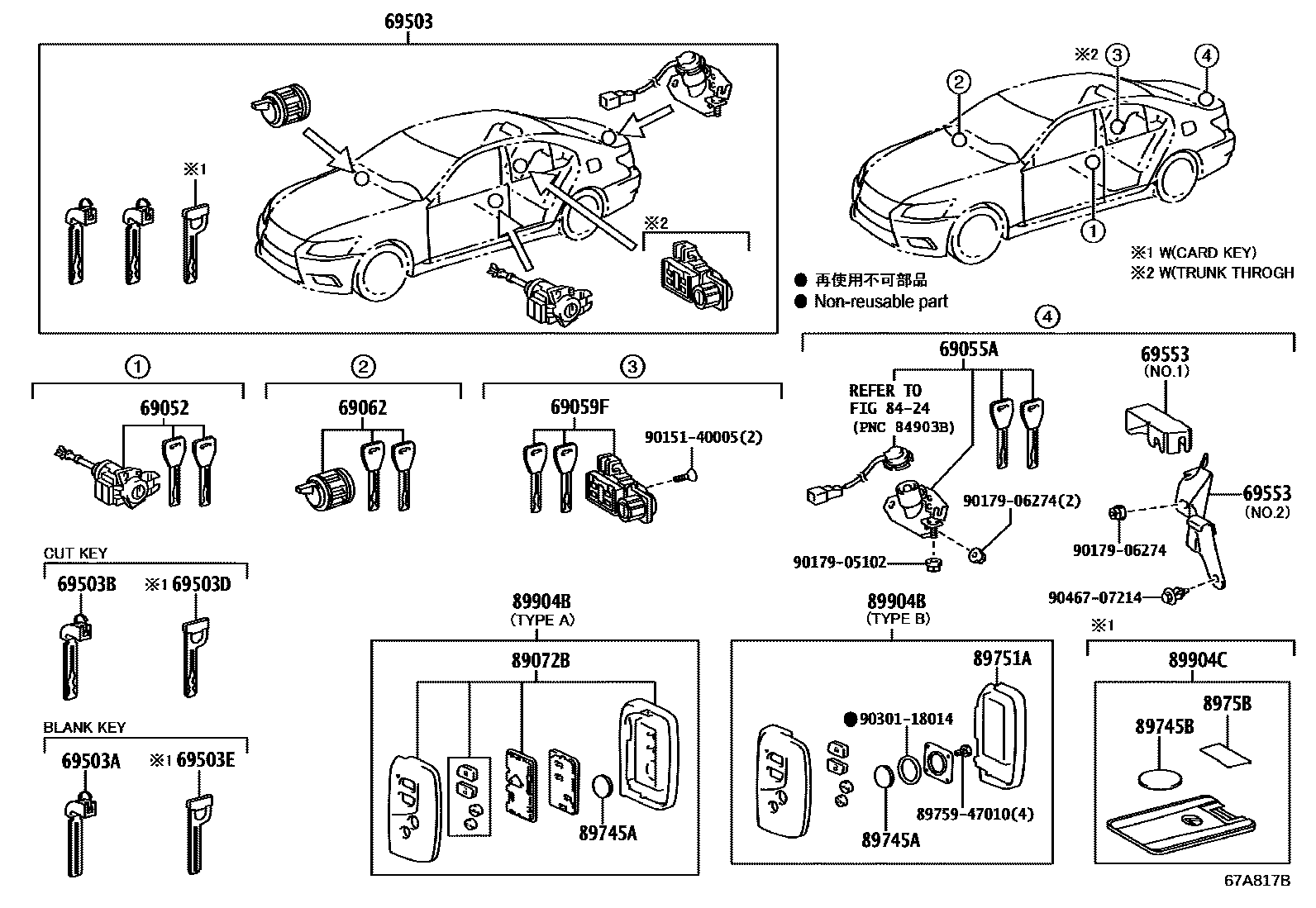

LOCK CYLINDER SET
69052CYLINDER & KEY SET, DOOR LOCK, LH
69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69059FCYLINDER & KEY SET, REAR SEAT ARMREST LOCK
69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69503CYLINDER SET, LOCK
CANADA SPEC&EXECUTIVE PACKAGE(5SEAT); EXECUTIVE PACKAGE(4SEAT); KOREA SPEC&EXECUTIVE PACKAGE(5SEAT); VERSION L
ELECTRICAL KEY(2) + CARD TYPE(1)
CANADA SPEC&EXECUTIVE PACKAGE(5SEAT)&ELECTRICAL KEY(2) + CARD TYPE(1); EXECUTIVE PACKAGE(4SEAT)&ELECTRICAL KEY(2) + CARD TYPE(1); KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&ELECTRICAL KEY(2) + CARD TYPE(1); VERSION L&ELECTRICAL KEY(2) + CARD TYPE(1)
69503AKEY, BLANK
MASTER KEY,W(*68)
69503BKEY, CUT
MASTER KEY,W(*68)
69503DKEY, CUT(CARD KEY)
MASTER KEY,CANADA SPEC&EXECUTIVE PACKAGE(5SEAT)&ELECTRICAL KEY(2) + CARD TYPE(1); MASTER KEY,ELECTRICAL KEY(2) + CARD TYPE(1); MASTER KEY,EXECUTIVE PACKAGE(4SEAT)&ELECTRICAL KEY(2) + CARD TYPE(1); MASTER KEY,KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&ELECTRICAL KEY(2) + CARD TYPE(1); MASTER KEY,VERSION L&ELECTRICAL KEY(2) + CARD TYPE(1)
69503EKEY, BLANK(CARD KEY)
MASTER KEY
69553PROTECTOR, LUGGAGE COMPARTMENT KEY CYLINDER
NO.1
NO.2
8424ANTI-THEFT DEVICE
89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89745ABATTERY, TRANSMITTER
KOREA SPEC; KOREA SPEC&ELECTRICAL KEY(2) + CARD TYPE(1)
89745BBATTERY, TRANSMITTER(CARD KEY)
ELECTRICAL KEY(2) + CARD TYPE(1); KOREA SPEC&ELECTRICAL KEY(2) + CARD TYPE(1)
89751ACOVER, TRANSMITTER HOUSING
KOREA SPEC; KOREA SPEC&ELECTRICAL KEY(2) + CARD TYPE(1)
8975BCOVER, TRANSMITTER BATTERY HOUSING
ELECTRICAL KEY(2) + CARD TYPE(1); KOREA SPEC&ELECTRICAL KEY(2) + CARD TYPE(1)
89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY
TYPE A:REFER ILLUST.
KOREA SPEC&ELECTRICAL KEY(2) + CARD TYPE(1),TYPE B:REFER ILLUST.; KOREA SPEC,TYPE B:REFER ILLUST.
89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)
ELECTRICAL KEY(2) + CARD TYPE(1)
KOREA SPEC&ELECTRICAL KEY(2) + CARD TYPE(1)
KOREA SPEC&ELECTRICAL KEY(2) + CARD TYPE(1)
8975947010SCREW, DOOR CONTROL TRANSMITTER
main89759-47010
9015140005
main90151-40005
9017905102
main90179-05102
9017906274
main90179-06274
9030118014
main90301-18014
9046707214
main90467-07214
24 parts on this diagram · 1 diagram in section
