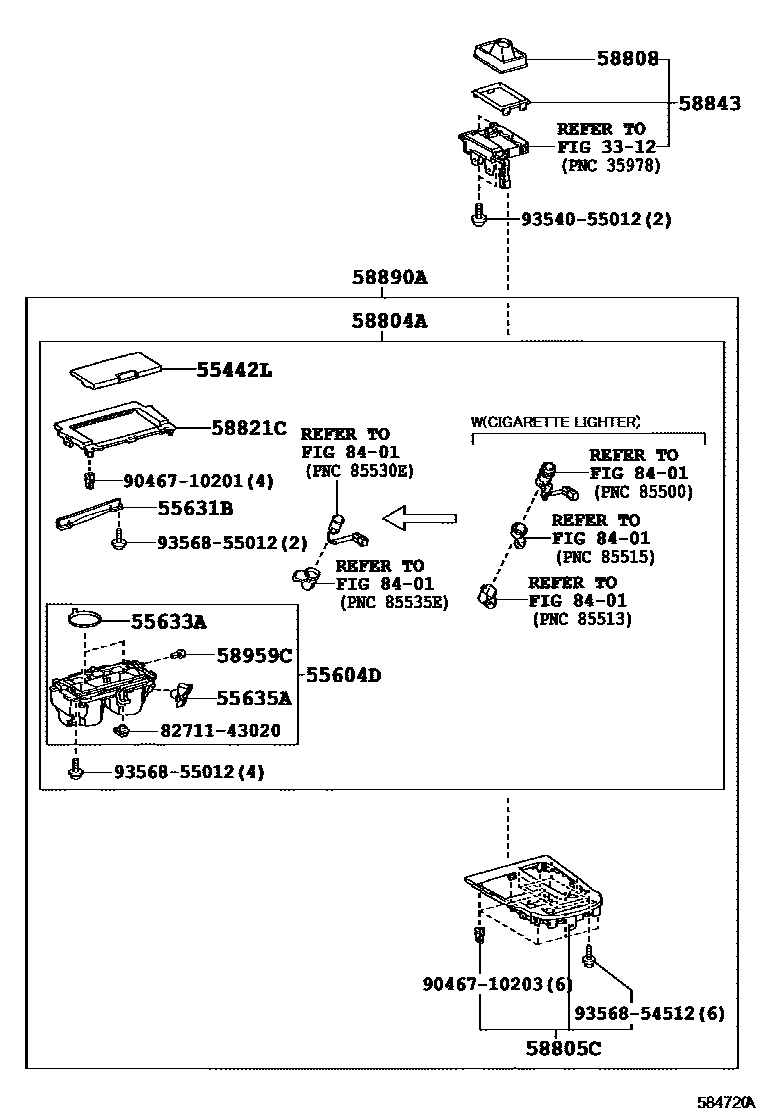

CONSOLE BOX & BRACKET

3312SHIFT LEVER & RETAINER

→ Go to FIG 33-12

55442LDOOR, INSTRUMENT PANEL

main55442-50120-E0i201209-201309

CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,20,50; DK.BROWN,TRIM0#,2#,5#

main55442-50121-C3i201411-201708

BLACK,TRIM1#,2#,3#,42,43,5#; BLACK,TRIM1#,23,5#; F SPORT&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,3#,42,43,51; F SPORT,BLACK,TRIM1#,23,3#,42,43,51; VERSION C&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,3#,42,43,51; VERSION C,BLACK,TRIM1#,23,3#,42,43,51

main55442-50121-E0i201309-201411

DK.BROWN,TRIM0#,20,50; DK.BROWN,TRIM01,20,50; F SPORT&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,20,50; F SPORT,DK.BROWN,TRIM01,20,50; VERSION C&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,20,50; VERSION C,DK.BROWN,TRIM01,20,50; VERSION L&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,20,50; VERSION L,DK.BROWN,TRIM01,20,50

main55442-50121-E2i201309-201708

BROWN,TRIM4#; BROWN,TRIM41

main55442-50121-F0i201309-201411

F SPORT&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM04,24; F SPORT,NATURAL BROWN,TRIM04,24; NATURAL BROWN,TRIM04,24; VERSION C&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM04,24; VERSION C,NATURAL BROWN,TRIM04,24; VERSION L&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM04,24; VERSION L,NATURAL BROWN,TRIM04,24

main55442-50120-C3i201209-201309

CIGARETTE LIGHTER-WITH,BLACK,TRIM01,20,40,50

main55442-50120-E2i201209-201309

CIGARETTE LIGHTER-WITH,BROWN,TRIM01,40,50

main55442-50121-C4i201309-201708

F SPORT&CIGARETTE LIGHTER-WITH,BLACK WOOD,TRIM21,52; F SPORT,BLACK WOOD,TRIM21,52; VERSION C&CIGARETTE LIGHTER-WITH,BLACK WOOD,TRIM21,52; VERSION C,BLACK WOOD,TRIM21,52

55604DHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-50020i201209-201309

main55604-50021i201309-201410

main55604-50022i201411-201708

55631BLOCK, INSTRUMENT PANEL CUP HOLDER, NO.1

main55632-50030i201209-201708

55633ASUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1

main55633-50030i201209-201708

55635ASUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.2

main55635-50020×4i201209-201410

main55635-50021×4i201411-201708

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-50380-C3i201209-201308

CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,20,40,50; CIGARETTE LIGHTER-WITH,BLACK,TRIM10,20,40,50; EXECUTIVE PACKAGE(4SEAT)&CIGARETTE LIGHTER-WITH,BLACK,TRIM10,20,40,50; EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,BLACK,TRIM10,20,40,50; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,BLACK,TRIM10,20,40,50; VERSION C&CIGARETTE LIGHTER-WITH,BLACK,TRIM10,20,40,50; VERSION L&CIGARETTE LIGHTER-WITH,BLACK,TRIM10,20,40,50

main58804-50380-C4i201210-201308

F SPORT&CIGARETTE LIGHTER-WITH,BLACK WOOD,TRIM21

main58804-50380-E2supersedes 58804-50390-E0i201209-201308

CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,20,50; EXECUTIVE PACKAGE(4SEAT)&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,20,50; EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,20,50; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,20,50; VERSION C&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,20,50; VERSION L&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,20,50

main58804-50380-E4i201209-201308

CIGARETTE LIGHTER-WITH,BROWN,TRIM01,40,50; EXECUTIVE PACKAGE(4SEAT)&CIGARETTE LIGHTER-WITH,BROWN,TRIM01,40,50; EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,BROWN,TRIM01,40,50; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,BROWN,TRIM01,40,50; VERSION C&CIGARETTE LIGHTER-WITH,BROWN,TRIM01,40,50; VERSION L&CIGARETTE LIGHTER-WITH,BROWN,TRIM01,40,50

main58804-50380-F0i201209-201308

CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM01,10,20,50; EXECUTIVE PACKAGE(4SEAT)&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM01,10,20,50; EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM01,10,20,50; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM01,10,20,50; VERSION C&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM01,10,20,50; VERSION L&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM01,10,20,50

main58804-50381-C3supersedes 58804-50391-C0i201309-201410

CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,51; EXECUTIVE PACKAGE(4SEAT)&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,51; EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,51; F SPORT&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,51; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,51; VERSION C&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,51; VERSION L&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,51

main58804-50381-C4i201309-201410

F SPORT&CIGARETTE LIGHTER-WITH,BLACK WOOD,TRIM21,52; VERSION C&CIGARETTE LIGHTER-WITH,BLACK WOOD,TRIM21,52

main58804-50381-E2i201309-201410

CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM0#,20,50; CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,20,50; EXECUTIVE PACKAGE(4SEAT)&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,20,50; EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,20,50; F SPORT&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,20,50; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,20,50; VERSION C&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,20,50; VERSION L&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,20,50

main58804-50381-E4supersedes 58804-50391-E2i201309-201410

CIGARETTE LIGHTER-WITH,BROWN,TRIM4#; EXECUTIVE PACKAGE(4SEAT)&CIGARETTE LIGHTER-WITH,BROWN,TRIM4#; EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,BROWN,TRIM4#; F SPORT&CIGARETTE LIGHTER-WITH,BROWN,TRIM4#; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,BROWN,TRIM4#; VERSION C&CIGARETTE LIGHTER-WITH,BROWN,TRIM4#; VERSION L&CIGARETTE LIGHTER-WITH,BROWN,TRIM4#

main58804-50381-F0i201309-201410

CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM04,24; EXECUTIVE PACKAGE(4SEAT)&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM04,24; EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM04,24; F SPORT&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM04,24; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM04,24; VERSION C&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM04,24; VERSION L&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM04,24

main58804-50382-C3i201411-201708

CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,2#,42,43,5#; CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,5#; EXECUTIVE PACKAGE(4SEAT)&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,5#; EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,5#; F SPORT&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,42,43,51; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,5#; VERSION C&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,42,43,51; VERSION L&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,43,5#; VERSION L&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,5#

main58804-50382-C4i201411-201708

F SPORT&CIGARETTE LIGHTER-WITH,BLACK WOOD,TRIM21,52; VERSION C&CIGARETTE LIGHTER-WITH,BLACK WOOD,TRIM21,52

main58804-50382-E2i201411-201708

CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM0#; EXECUTIVE PACKAGE(4SEAT)&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM0#; EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM0#; F SPORT&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM0#; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM0#; VERSION C&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM0#; VERSION L&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM0#

main58804-50382-E4i201411-201708

CIGARETTE LIGHTER-WITH,BROWN,TRIM4#; CIGARETTE LIGHTER-WITH,BROWN,TRIM41; EXECUTIVE PACKAGE(4SEAT)&CIGARETTE LIGHTER-WITH,BROWN,TRIM4#; EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,BROWN,TRIM4#; F SPORT&CIGARETTE LIGHTER-WITH,BROWN,TRIM41; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,BROWN,TRIM4#; VERSION C&CIGARETTE LIGHTER-WITH,BROWN,TRIM41; VERSION L&CIGARETTE LIGHTER-WITH,BROWN,TRIM4#; VERSION L&CIGARETTE LIGHTER-WITH,BROWN,TRIM41

main58804-50382-F0i201411-201708

CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM24; EXECUTIVE PACKAGE(4SEAT)&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM24; EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM24; F SPORT&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM24; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM24; VERSION C&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM24; VERSION L&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM24

main58804-50390-C0i201210-201308

F SPORT,BLACK,TRIM10,20,40,50

main58804-50390-C1i201209-201308

VERSION C,BLACK WOOD,TRIM21

main58804-50390-F0i201209-201308

NATURAL BROWN,TRIM01,10,20,50; VERSION C,NATURAL BROWN,TRIM01,10,20,50; VERSION L,NATURAL BROWN,TRIM01,10,20,50

main58804-50391-C0i201410-201411

THE CRAFTED LINE,BLACK,TRIM1#,23,3#,51

main58804-50391-C1i201309-201410

F SPORT,BLACK WOOD,TRIM21,52; VERSION C,BLACK WOOD,TRIM21,52

main58804-50391-E0i201410-201411

THE CRAFTED LINE,DK.BROWN,TRIM01,20,50

main58804-50391-E2i201410-201411

THE CRAFTED LINE,BROWN,TRIM4#

main58804-50391-F0i201309-201410

F SPORT,NATURAL BROWN,TRIM04,24; NATURAL BROWN,TRIM04,24; VERSION C,NATURAL BROWN,TRIM04,24; VERSION L,NATURAL BROWN,TRIM04,24

main58804-50392-C0i201411-201509

THE CRAFTED LINE,BLACK,TRIM1#,23,3#,42,43,51

main58804-50392-C1i201411-201708

F SPORT,BLACK WOOD,TRIM21,52; VERSION C,BLACK WOOD,TRIM21,52

main58804-50392-F0i201411-201708

F SPORT,NATURAL BROWN,TRIM24; NATURAL BROWN,TRIM24; VERSION C,NATURAL BROWN,TRIM24; VERSION L,NATURAL BROWN,TRIM24

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-50340-C0i201209-201309

BLACK,TRIM1#,20,40,50

main58805-50340-E0i201209-201309

DK.BROWN,TRIM01,20,50

main58805-50350-C0i201411-201708

BLACK,TRIM1#,23,5#; F SPORT&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,42,43,51; F SPORT,BLACK,TRIM1#,23,3#,42,43,51; VERSION C&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,42,43,51; VERSION C,BLACK,TRIM1#,23,3#,42,43,51

main58805-50350-C1i201309-201708

F SPORT&CIGARETTE LIGHTER-WITH,BLACK WOOD,TRIM21,52; F SPORT,BLACK WOOD,TRIM21,52; VERSION C&CIGARETTE LIGHTER-WITH,BLACK WOOD,TRIM21,52; VERSION C,BLACK WOOD,TRIM21,52

main58805-50350-E0i201609-201708

LUXURY PACKAGE FOR USA&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM0#; LUXURY PACKAGE FOR USA,DK.BROWN,TRIM0#

main58805-50350-E2supersedes 58805-50340-E1i201309-201411

F SPORT&CIGARETTE LIGHTER-WITH,BROWN,TRIM4#; F SPORT,BROWN,TRIM4#; VERSION C&CIGARETTE LIGHTER-WITH,BROWN,TRIM4#; VERSION C,BROWN,TRIM4#

main58805-50350-F0i201411-201708

F SPORT&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM24; F SPORT,NATURAL BROWN,TRIM24; NATURAL BROWN,TRIM24; VERSION C&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM24; VERSION C,NATURAL BROWN,TRIM24

main58805-50360-C0i201411-201708

EXECUTIVE PACKAGE(4SEAT)&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,5#; EXECUTIVE PACKAGE(4SEAT),BLACK,TRIM1#,23,5#; EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,5#; EXECUTIVE PACKAGE(5SEAT),BLACK,TRIM1#,23,5#; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,5#; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT),BLACK,TRIM1#,23,5#; VERSION L&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,43,5#; VERSION L&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,5#; VERSION L,BLACK,TRIM1#,23,43,5#; VERSION L,BLACK,TRIM1#,23,5#

main58805-50360-E0supersedes 58805-50350-E0i201209-201411

EXECUTIVE PACKAGE(4SEAT)&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,20,50; EXECUTIVE PACKAGE(4SEAT),DK.BROWN,TRIM01,20,50; EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,20,50; EXECUTIVE PACKAGE(5SEAT),DK.BROWN,TRIM01,20,50; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,20,50; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT),DK.BROWN,TRIM01,20,50; VERSION L&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,20,50; VERSION L,DK.BROWN,TRIM01,20,50

main58805-50360-E2supersedes 58805-50350-E2i201309-201708

EXECUTIVE PACKAGE(4SEAT)&CIGARETTE LIGHTER-WITH,BROWN,TRIM4#; EXECUTIVE PACKAGE(4SEAT),BROWN,TRIM4#; EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,BROWN,TRIM4#; EXECUTIVE PACKAGE(5SEAT),BROWN,TRIM4#; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,BROWN,TRIM4#; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT),BROWN,TRIM4#; VERSION L&CIGARETTE LIGHTER-WITH,BROWN,TRIM4#; VERSION L,BROWN,TRIM4#

main58805-50360-F0i201411-201708

EXECUTIVE PACKAGE(4SEAT)&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM24; EXECUTIVE PACKAGE(4SEAT),NATURAL BROWN,TRIM24; EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM24; EXECUTIVE PACKAGE(5SEAT),NATURAL BROWN,TRIM24; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM24; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT),NATURAL BROWN,TRIM24; VERSION L&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM24; VERSION L,NATURAL BROWN,TRIM24

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-50010i201209

58821CPANEL, CONSOLE, UPPER

main58821-50080-C3i201209-201309

BLACK,TRIM1#,23,51; VERSION L&CIGARETTE LIGHTER-WITH,BLACK,TRIM10,20,23,40,50,51

main58821-50080-E2i201209-201411

DK.BROWN,TRIM0#,20,50; DK.BROWN,TRIM01,20,50; VERSION C&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,20,50; VERSION C,DK.BROWN,TRIM01,20,50; VERSION L&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,20,50; VERSION L,DK.BROWN,TRIM01,20,50

main58821-50080-E4i201209-201708

BROWN,TRIM4#

main58821-50080-F0i201209-201411

NATURAL BROWN,TRIM04,24; VERSION C&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM04,24; VERSION C,NATURAL BROWN,TRIM04,24; VERSION L,NATURAL BROWN,TRIM04,24

main58821-50080-C4i201209-201708

VERSION C&CIGARETTE LIGHTER-WITH,BLACK WOOD,TRIM21,52; VERSION C,BLACK WOOD,TRIM21,52

58843BEZEL, SHIFTING HOLE

main58843-50050i201209-201408

main58843-50140i201408

main58843-50060i201210-201408

F SPORT

main58843-50150i201410-201509

THE CRAFTED LINE

58890APANEL ASSY, EQUIPMENT SET

main58890-50010-C0supersedes 58890-50020-C0i201209-201308

CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,20,40,50

main58890-50010-E0supersedes 58890-50020-E0i201209-201308

CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,20,50

main58890-50010-E1supersedes 58890-50020-E1i201209-201308

CIGARETTE LIGHTER-WITH,BROWN,TRIM01,40,50

main58890-50011-C0supersedes 58890-50021-C0i201309-201410

CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,51

main58890-50011-E0supersedes 58890-50021-E0i201309-201410

CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM0#,20,50

main58890-50011-E1supersedes 58890-50021-E1i201309-201410

CIGARETTE LIGHTER-WITH,BROWN,TRIM4#

main58890-50012-C0supersedes 58890-50022-C0i201411-201708

CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,2#,42,43,5#

main58890-50012-E0supersedes 58890-50022-E0i201411-201708

CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM0#

main58890-50012-E1supersedes 58890-50022-E1i201411-201708

CIGARETTE LIGHTER-WITH,BROWN,TRIM41

main58890-50030-C0i201209-201308

CIGARETTE LIGHTER-WITH,BLACK,TRIM10,20,40,50; VERSION C&CIGARETTE LIGHTER-WITH,BLACK,TRIM10,20,40,50

main58890-50030-C1i201209-201308

VERSION C&CIGARETTE LIGHTER-WITH,BLACK WOOD,TRIM21

main58890-50030-E0supersedes 58890-50040-E0i201209-201308

CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,20,50; VERSION C&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,20,50

main58890-50030-E2supersedes 58890-50020-E1i201209-201308

CIGARETTE LIGHTER-WITH,BROWN,TRIM01,40,50; VERSION C&CIGARETTE LIGHTER-WITH,BROWN,TRIM01,40,50

main58890-50030-F0i201209-201308

CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM01,10,20,50; VERSION C&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM01,10,20,50

main58890-50031-C0supersedes 58890-50021-C0i201309-201410

CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,51; F SPORT&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,51; VERSION C&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,51

main58890-50031-C1i201309-201410

F SPORT&CIGARETTE LIGHTER-WITH,BLACK WOOD,TRIM21,52; VERSION C&CIGARETTE LIGHTER-WITH,BLACK WOOD,TRIM21,52

main58890-50031-E0supersedes 58890-50041-E0i201309-201410

CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,20,50; F SPORT&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,20,50; VERSION C&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,20,50

main58890-50031-E2supersedes 58890-50021-E1i201309-201410

CIGARETTE LIGHTER-WITH,BROWN,TRIM4#; F SPORT&CIGARETTE LIGHTER-WITH,BROWN,TRIM4#; VERSION C&CIGARETTE LIGHTER-WITH,BROWN,TRIM4#

main58890-50031-F0supersedes 58890-50041-F0i201309-201410

CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM04,24; F SPORT&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM04,24; VERSION C&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM04,24

main58890-50032-C0supersedes 58890-50042-C0i201411-201708

CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,5#; F SPORT&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,42,43,51; VERSION C&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,42,43,51

main58890-50032-C1i201609-201708

LUXURY PACKAGE FOR USA&CIGARETTE LIGHTER-WITH,BLACK WOOD,TRIM21,52

main58890-50032-E0supersedes 58890-50042-E0i201411-201708

CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM0#; F SPORT&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM0#; VERSION C&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM0#

main58890-50032-E2supersedes 58890-50022-E1i201411-201708

CIGARETTE LIGHTER-WITH,BROWN,TRIM4#; F SPORT&CIGARETTE LIGHTER-WITH,BROWN,TRIM41; VERSION C&CIGARETTE LIGHTER-WITH,BROWN,TRIM41

main58890-50032-F0supersedes 58890-50042-F0i201411-201708

CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM24; F SPORT&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM24; VERSION C&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM24

main58890-50040-C0i201209-201308

BLACK,TRIM10,20,40,50; VERSION C,BLACK,TRIM10,20,40,50

main58890-50040-C1i201210-201308

F SPORT,BLACK WOOD,TRIM21

main58890-50040-E0supersedes 58890-50020-E0i201210-201308

F SPORT,DK.BROWN,TRIM01,20,50

main58890-50040-E2supersedes 58890-50020-E1i201209-201308

BROWN,TRIM01,40,50; VERSION C,BROWN,TRIM01,40,50

main58890-50040-F0i201209-201308

NATURAL BROWN,TRIM01,10,20,50; VERSION C,NATURAL BROWN,TRIM01,10,20,50

main58890-50041-C0i201309-201410

BLACK,TRIM1#,23,51; F SPORT,BLACK,TRIM1#,23,3#,51; VERSION C,BLACK,TRIM1#,23,3#,51

main58890-50041-C1i201309-201410

F SPORT,BLACK WOOD,TRIM21,52; VERSION C,BLACK WOOD,TRIM21,52

main58890-50041-E0i201309-201410

DK.BROWN,TRIM01,20,50; F SPORT,DK.BROWN,TRIM01,20,50; VERSION C,DK.BROWN,TRIM01,20,50

main58890-50041-E2supersedes 58890-50021-E1i201309-201410

BROWN,TRIM4#; F SPORT,BROWN,TRIM4#; VERSION C,BROWN,TRIM4#

main58890-50041-F0i201309-201410

F SPORT,NATURAL BROWN,TRIM04,24; NATURAL BROWN,TRIM04,24; VERSION C,NATURAL BROWN,TRIM04,24

main58890-50042-C0i201411-201708

BLACK,TRIM1#,23,5#; F SPORT,BLACK,TRIM1#,23,3#,42,43,51; VERSION C,BLACK,TRIM1#,23,3#,42,43,51

main58890-50042-C1i201411-201509

THE CRAFTED LINE,BLACK WOOD,TRIM21,52

main58890-50042-E0supersedes 58890-50022-E0i201411-201708

DK.BROWN,TRIM0#; F SPORT,DK.BROWN,TRIM0#; VERSION C,DK.BROWN,TRIM0#

main58890-50042-E2supersedes 58890-50022-E1i201411-201708

BROWN,TRIM4#; F SPORT,BROWN,TRIM41; VERSION C,BROWN,TRIM41

main58890-50042-F0i201411-201708

F SPORT,NATURAL BROWN,TRIM24; NATURAL BROWN,TRIM24; VERSION C,NATURAL BROWN,TRIM24

main58890-50050-C0i201209-201308

EXECUTIVE PACKAGE(4SEAT)&CIGARETTE LIGHTER-WITH,BLACK,TRIM10,20,40,50; EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,BLACK,TRIM10,20,40,50; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,BLACK,TRIM10,20,40,50; VERSION L&CIGARETTE LIGHTER-WITH,BLACK,TRIM10,20,40,50

main58890-50050-E0supersedes 58890-50040-E0i201209-201308

EXECUTIVE PACKAGE(4SEAT)&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,20,50; EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,20,50; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,20,50; VERSION L&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,20,50

main58890-50050-E2i201209-201308

EXECUTIVE PACKAGE(4SEAT)&CIGARETTE LIGHTER-WITH,BROWN,TRIM01,40,50; EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,BROWN,TRIM01,40,50; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,BROWN,TRIM01,40,50; VERSION L&CIGARETTE LIGHTER-WITH,BROWN,TRIM01,40,50

main58890-50050-F0i201209-201308

EXECUTIVE PACKAGE(4SEAT)&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM01,10,20,50; EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM01,10,20,50; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM01,10,20,50; VERSION L&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM01,10,20,50

main58890-50051-C0supersedes 58890-50041-C0i201309-201410

EXECUTIVE PACKAGE(4SEAT)&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,51; EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,51; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,51; VERSION L&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,51

main58890-50051-E0i201309-201410

main58890-50051-E2supersedes 58890-50041-E2i201309-201410

EXECUTIVE PACKAGE(4SEAT)&CIGARETTE LIGHTER-WITH,BROWN,TRIM4#; EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,BROWN,TRIM4#; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,BROWN,TRIM4#; VERSION L&CIGARETTE LIGHTER-WITH,BROWN,TRIM4#

main58890-50051-F0i201309-201410

EXECUTIVE PACKAGE(4SEAT)&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM04,24; EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM04,24; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM04,24; VERSION L&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM04,24

main58890-50052-C0supersedes 58890-50042-C0i201411-201708

EXECUTIVE PACKAGE(4SEAT)&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,5#; EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,5#; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,5#; VERSION L&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,43,5#; VERSION L&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,5#

main58890-50052-E0i201411-201708

EXECUTIVE PACKAGE(4SEAT)&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM0#; EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM0#; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM0#; VERSION L&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM0#

main58890-50052-E2supersedes 58890-50022-E1i201411-201708

main58890-50052-F0i201411-201708

EXECUTIVE PACKAGE(4SEAT)&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM24; EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM24; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM24; VERSION L&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM24

main58890-50060-C0i201209-201308

EXECUTIVE PACKAGE(4SEAT),BLACK,TRIM10,20,40,50; EXECUTIVE PACKAGE(5SEAT),BLACK,TRIM10,20,40,50; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT),BLACK,TRIM10,20,40,50; VERSION L,BLACK,TRIM10,20,40,50

main58890-50060-E0i201209-201308

EXECUTIVE PACKAGE(4SEAT),DK.BROWN,TRIM01,20,50; EXECUTIVE PACKAGE(5SEAT),DK.BROWN,TRIM01,20,50; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT),DK.BROWN,TRIM01,20,50; VERSION L,DK.BROWN,TRIM01,20,50

main58890-50060-E2i201209-201308

EXECUTIVE PACKAGE(4SEAT),BROWN,TRIM01,40,50; EXECUTIVE PACKAGE(5SEAT),BROWN,TRIM01,40,50; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT),BROWN,TRIM01,40,50; VERSION L,BROWN,TRIM01,40,50

main58890-50060-F0i201209-201308

EXECUTIVE PACKAGE(4SEAT),NATURAL BROWN,TRIM01,10,20,50; EXECUTIVE PACKAGE(5SEAT),NATURAL BROWN,TRIM01,10,20,50; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT),NATURAL BROWN,TRIM01,10,20,50; VERSION L,NATURAL BROWN,TRIM01,10,20,50

main58890-50061-C0i201309-201410

EXECUTIVE PACKAGE(4SEAT),BLACK,TRIM1#,23,51; EXECUTIVE PACKAGE(5SEAT),BLACK,TRIM1#,23,51; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT),BLACK,TRIM1#,23,51; VERSION L,BLACK,TRIM1#,23,51

main58890-50061-E0i201309-201410

EXECUTIVE PACKAGE(4SEAT),DK.BROWN,TRIM01,20,50; EXECUTIVE PACKAGE(5SEAT),DK.BROWN,TRIM01,20,50; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT),DK.BROWN,TRIM01,20,50; VERSION L,DK.BROWN,TRIM01,20,50

main58890-50061-E2i201309-201410

EXECUTIVE PACKAGE(4SEAT),BROWN,TRIM4#; EXECUTIVE PACKAGE(5SEAT),BROWN,TRIM4#; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT),BROWN,TRIM4#; VERSION L,BROWN,TRIM4#

main58890-50061-F0i201309-201410

EXECUTIVE PACKAGE(4SEAT),NATURAL BROWN,TRIM04,24; EXECUTIVE PACKAGE(5SEAT),NATURAL BROWN,TRIM04,24; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT),NATURAL BROWN,TRIM04,24; VERSION L,NATURAL BROWN,TRIM04,24

main58890-50062-C0i201411-201708

EXECUTIVE PACKAGE(4SEAT),BLACK,TRIM1#,23,5#; EXECUTIVE PACKAGE(5SEAT),BLACK,TRIM1#,23,5#; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT),BLACK,TRIM1#,23,5#; VERSION L,BLACK,TRIM1#,23,43,5#; VERSION L,BLACK,TRIM1#,23,5#

main58890-50062-E0supersedes 58890-50042-E0i201411-201708

EXECUTIVE PACKAGE(4SEAT),DK.BROWN,TRIM0#; EXECUTIVE PACKAGE(5SEAT),DK.BROWN,TRIM0#; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT),DK.BROWN,TRIM0#; VERSION L,DK.BROWN,TRIM0#

main58890-50062-E2supersedes 58890-50042-E2i201411-201708

EXECUTIVE PACKAGE(4SEAT),BROWN,TRIM4#; EXECUTIVE PACKAGE(5SEAT),BROWN,TRIM4#; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT),BROWN,TRIM4#; VERSION L,BROWN,TRIM4#; VERSION L,BROWN,TRIM41

main58890-50062-F0supersedes 58890-50042-F0i201411-201708

EXECUTIVE PACKAGE(4SEAT),NATURAL BROWN,TRIM24; EXECUTIVE PACKAGE(5SEAT),NATURAL BROWN,TRIM24; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT),NATURAL BROWN,TRIM24; VERSION L,NATURAL BROWN,TRIM24

58959CCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060×2i201209-201708

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8271143020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-43020

9046710201

main90467-10201

9046710203

main90467-10203

9354055012

main93540-55012

9356854512

main93568-54512

9356855012

main93568-55012

20 parts on this diagram · 5 diagrams in section
