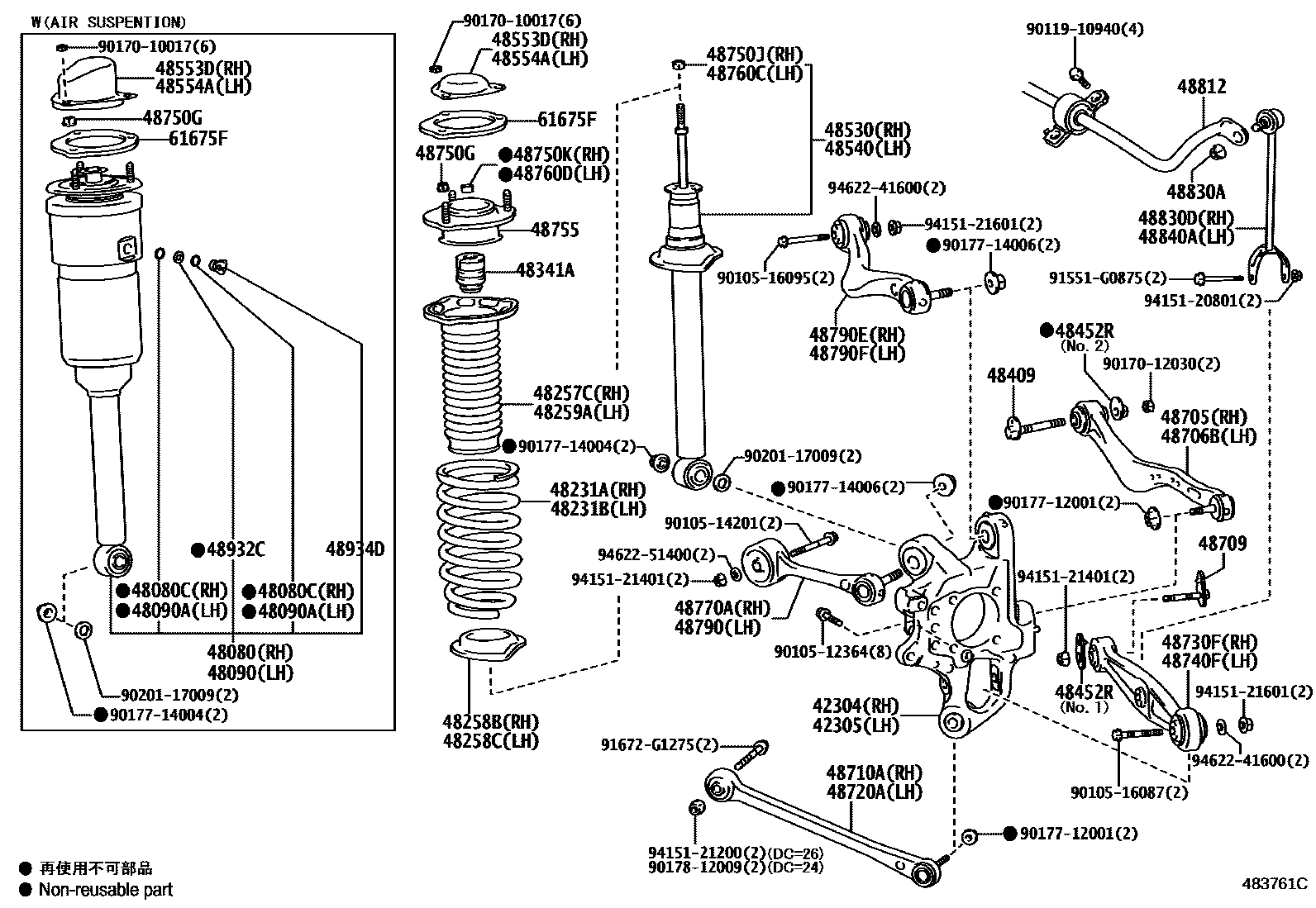

REAR SPRING & SHOCK ABSORBER

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-50100i201209-201708

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-50100i201209-201708

48080CYLINDER ASSY, PNEUMATIC, REAR RH W/SHOCK ABSORBER

main48080-50340i201209-201312

SUSPENSION-AIR SUSPENTION F SPORT

main48080-50341i201401

SUSPENSION-AIR SUSPENTION F SPORT

main48080-50360i201209-201312

SUSPENSION-AIR SUSPENTION

main48080-50361i201401

SUSPENSION-AIR SUSPENTION

main48080-50390i201209-201312

SUSPENSION-AIR SUSPENTION F SPORT

main48080-50391i201401

SUSPENSION-AIR SUSPENTION F SPORT

main48080-50410i201209-201312

SUSPENSION-AIR SUSPENTION

main48080-50411i201401

SUSPENSION-AIR SUSPENTION

48080CRING, O(FOR REAR PNEUMATIC CYLINDER RH)

main90301-04011×2i201209

SUSPENSION-AIR SUSPENTION; SUSPENSION-AIR SUSPENTION F SPORT

48090CYLINDER ASSY, PNEUMATIC, REAR LH W/SHOCK ABSORBER

main48090-50340i201209-201312

SUSPENSION-AIR SUSPENTION F SPORT

main48090-50341i201401

SUSPENSION-AIR SUSPENTION F SPORT

main48090-50360i201209-201312

SUSPENSION-AIR SUSPENTION

main48090-50361i201401

SUSPENSION-AIR SUSPENTION

main48090-50390i201209-201312

SUSPENSION-AIR SUSPENTION F SPORT

main48090-50391i201401

SUSPENSION-AIR SUSPENTION F SPORT

main48090-50410i201209-201312

SUSPENSION-AIR SUSPENTION

main48090-50411i201401

SUSPENSION-AIR SUSPENTION

48090ARING, O(FOR REAR PNEUMATIC CYLINDER LH)

main90301-04011×2i201209

SUSPENSION-AIR SUSPENTION; SUSPENSION-AIR SUSPENTION F SPORT

48231ASPRING, COIL, REAR RH

main48231-50330i201209

main48231-50340i201209

main48231-50350i201209

48231BSPRING, COIL, REAR LH

main48231-50330i201209

main48231-50340i201209

main48231-50350i201209

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-50030i201209

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48158-30020i201209

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48158-30020i201209

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-50030i201209

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-50080×2i201209

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-50020×2i201209

48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2

main48452-50010×2i201209

MARK 1,NO.1

main48452-50020×2i201209

MARK 2,NO.1

main48452-50030×2i201209

MARK 3,NO.1

main48452-50040×2i201209

NO.2

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-80643i201209-201401

MARK 48530-50230

main48530-80645i201209-201404

MARK 48530-50250

main48530-80723i201401

MRAK 48530-50231

main48530-80725i201404

MRAK 48530-50251

48540ABSORBER ASSY, SHOCK, REAR LH

main48540-59095i201209-201401

MARK 48540-50060

main48540-59096i201401

MARK 48540-50061

main48540-59115i201209-201404

MARK 48540-50080

main48540-59116i201404

MARK 48540-50081

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-50054supersedes 48553-50100i201209

SUSPENSION-AIR SUSPENTION; SUSPENSION-AIR SUSPENTION F SPORT

48554ACAP, REAR SHOCK ABSORBER, LH

main48554-50064supersedes 48553-50100i201209

SUSPENSION-AIR SUSPENTION; SUSPENSION-AIR SUSPENTION F SPORT

48705LINK SUB-ASSY, TOE CONTROL, RH

main48705-50030i201209

48706BLINK SUB-ASSY, TOE CONTROL, LH

main48706-50020i201209

48709ATTACHMENT SUB-ASSY, REAR SUSPENSION ARM

main48709-50040×2i201209

MARK 1

main48709-50050×2i201209

MARK 2

main48709-50060×2i201209

MARK 3

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-50080i201209

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-50080i201209

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-50111i201209

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-50111i201209

48750GNUT(FOR REAR SUSPENSION SUPPORT)

main90179-10088×6i201209

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90177-12002i201209

48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90387-12057i201209

48755SUPPORT, REAR SUSPENSION

main48755-50121×2i201209

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90177-12002i201209

48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90387-12057i201209

48770AARM ASSY, UPPER CONTROL, REAR RH

main48710-50090i201209

SUSPENSION-AIR SUSPENTION F SPORT

main48710-50100i201209

48790ARM ASSY, UPPER CONTROL, REAR LH

main48710-50090i201209

SUSPENSION-AIR SUSPENTION F SPORT

main48710-50100i201209

48790EARM ASSY, UPPER CONTROL, REAR RH NO.2

main48770-50060i201209

48790FARM ASSY, UPPER CONTROL, REAR LH NO.2

main48790-50080i201209

48812BAR, STABILIZER, REAR

main48805-50020i201209

main48805-50010i201209

SUSPENSION-AIR SUSPENTION; VERSION C&SUSPENSION-AIR SUSPENTION; VERSION L&SUSPENSION-AIR SUSPENTION

main48805-50040i201210

F SPORT&SUSPENSION-AIR SUSPENTION F SPORT

48830ANUT(FOR REAR STABILIZER LINK)

main90179-12151×2i201209

48830DLINK ASSY, REAR STABILIZER, RH

main48830-50040i201209

48840ALINK ASSY, REAR STABILIZER, LH

main48840-50020i201209

48932CPLATE, HEIGHT CONTROL TUBE

main48932-30010×2i201209

SUSPENSION-AIR SUSPENTION; SUSPENSION-AIR SUSPENTION F SPORT

48934DCONNECTOR, HEIGHT CONTROL TUBE

main48934-30010×2i201209

SUSPENSION-AIR SUSPENTION; SUSPENSION-AIR SUSPENTION F SPORT

61675FREINFORCEMENT, REAR SUSPENSION SPRING SUPPORT

main61675-50030×2i201209

9010512364

main90105-12364

9010514201

main90105-14201

9010516087

main90105-16087

9010516095

main90105-16095

9011910940

main90119-10940

9017010017

main90170-10017

9017012030

main90170-12030

9017712001

main90177-12001

9017714004

main90177-14004

9017714006

main90177-14006

9017812009

main90178-12009

9020117009

main90201-17009

91551G0875

main91551-G0875

91672G1275

main91672-G1275

9415120801

main94151-20801

9415121200

main94151-21200

9415121401

main94151-21401

9415121601

main94151-21601

9462241600

main94622-41600

9462251400

main94622-51400

63 parts on this diagram · 1 diagram in section
