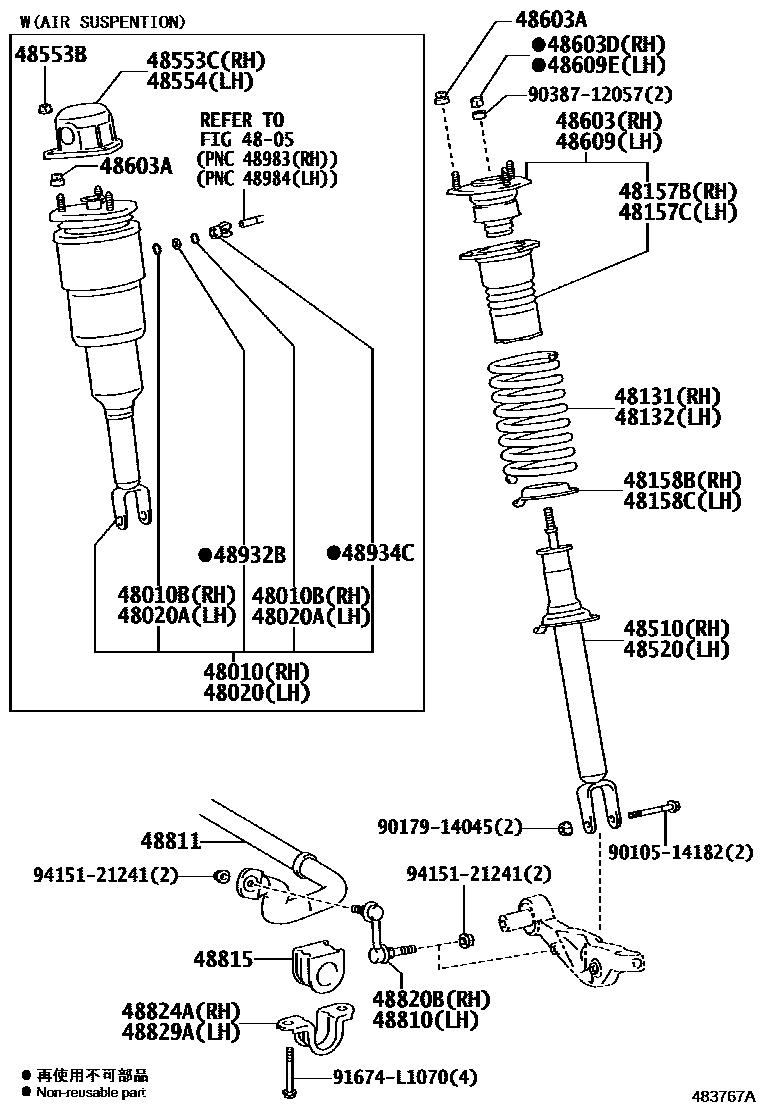

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48010CYLINDER ASSY, PNEUMATIC, FRONT RH W/SHOCK ABSORBER

main48010-50320iUSF40201209-201312

SUSPENSION-AIR SUSPENTION F SPORT

main48010-50321iUSF40201401

SUSPENSION-AIR SUSPENTION F SPORT

main48010-50340iUSF45,46201209-201312

SUSPENSION-AIR SUSPENTION

main48010-50341iUSF45,46201401

SUSPENSION-AIR SUSPENTION

main48010-50350iUSF45201209-201312

SUSPENSION-AIR SUSPENTION F SPORT

main48010-50351iUSF45201401

SUSPENSION-AIR SUSPENTION F SPORT

main48010-50360iUSF40,41201209-201312

SUSPENSION-AIR SUSPENTION

main48010-50361iUSF40,41201401

SUSPENSION-AIR SUSPENTION

48010BRING, O(FOR FRONT PNEUMATIC CYLINDER RH)

main90301-04011×2iUSF4#; USF40,45201209

SUSPENSION-AIR SUSPENTION; SUSPENSION-AIR SUSPENTION F SPORT

48020CYLINDER ASSY, PNEUMATIC, FRONT LH W/SHOCK ABSORBER

main48020-50320iUSF40201209-201312

SUSPENSION-AIR SUSPENTION F SPORT

main48020-50321iUSF40201401

SUSPENSION-AIR SUSPENTION F SPORT

main48020-50340iUSF45,46201209-201312

SUSPENSION-AIR SUSPENTION

main48020-50341iUSF45,46201401

SUSPENSION-AIR SUSPENTION

main48020-50350iUSF45201209-201312

SUSPENSION-AIR SUSPENTION F SPORT

main48020-50351iUSF45201401

SUSPENSION-AIR SUSPENTION F SPORT

main48020-50360iUSF40,41201209-201312

SUSPENSION-AIR SUSPENTION

main48020-50361iUSF40,41201401

SUSPENSION-AIR SUSPENTION

48020ARING, O(FOR FRONT PNEUMATIC CYLINDER LH)

main90301-04011×2iUSF4#; USF40,45201209

SUSPENSION-AIR SUSPENTION; SUSPENSION-AIR SUSPENTION F SPORT

4805HEIGHT CONTROL (AUTO-LEVELER)

→ Go to FIG 48-05

48131SPRING, FRONT COIL, RH

main48131-50240iUSF40201209

main48131-50250iUSF41201209

main48131-50261iUSF45,46201209

48132SPRING, FRONT COIL, LH

main48131-50240iUSF40201209

main48131-50250iUSF41201209

main48131-50261iUSF45,46201209

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-50030iUSF40,41201209

main48157-50050iUSF45,46201209

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-50030iUSF40,41201209

main48157-50060iUSF45,46201209

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-30020iUSF40,41201209

main48158-50010iUSF45,46201209

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-30020iUSF40,41201209

main48158-50010iUSF45,46201209

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80586iUSF40,41201209-201401

MARK 48510-50240

main48510-80589iUSF45,46201209-201404

MARK 48510-50260

main48510-80682iUSF40,41201401

MARK 48510-50241

main48510-80684iUSF45,46201404

MARK 48510-50261

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-80586iUSF40,41201209-201401

MARK 48510-50240

main48510-80682iUSF40,41201401

MARK 48510-50241

main48520-59685iUSF45,46201209-201404

MARK 48520-50020

main48520-80378iUSF45,46201404

MARK 48520-50021

48553BNUT(FOR FRONT SHOCK ABSORBER CAP)

main90179-10174×6iUSF4#; USF40,45201209

SUSPENSION-AIR SUSPENTION; SUSPENSION-AIR SUSPENTION F SPORT

48553CCAP, FRONT SHOCK ABSORBER, RH

main48553-50120iUSF45; USF45,46201209

SUSPENSION-AIR SUSPENTION; SUSPENSION-AIR SUSPENTION F SPORT

main48553-50130iUSF40; USF40,41201209

SUSPENSION-AIR SUSPENTION; SUSPENSION-AIR SUSPENTION F SPORT

48554CAP, FRONT SHOCK ABSORBER, LH

main48553-50120iUSF45; USF45,46201209

SUSPENSION-AIR SUSPENTION; SUSPENSION-AIR SUSPENTION F SPORT

main48553-50130iUSF40; USF40,41201209

SUSPENSION-AIR SUSPENTION; SUSPENSION-AIR SUSPENTION F SPORT

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48680-50120iUSF40,41201209

main48680-50190iUSF45,46201209

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10014×6iUSF4#201209

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90177-12002iUSF4#201209

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48680-50120iUSF40,41201209

main48680-50200iUSF45,46201209

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90177-12002iUSF4#201209

48810LINK ASSY, FRONT STABILIZER, LH

main48810-50020iUSF4#201209

48811BAR, STABILIZER, FRONT

main48811-50120iUSF40,41201209

main48811-50220iUSF45,46201209

main48811-50150iUSF45201609

F SPORT FOR USA&SUSPENSION-AIR SUSPENTION F SPORT

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-50200×2iUSF40,41201209

main48815-50220×2iUSF45,46201209

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-50030iUSF4#201209

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-50040iUSF40,41201209

main48824-50060iUSF45,46201209

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-50050iUSF40,41201209

main48829-50010iUSF45,46201209

48932BPLATE, HEIGHT CONTROL TUBE

main48932-30010×2iUSF4#; USF40,45201209

SUSPENSION-AIR SUSPENTION; SUSPENSION-AIR SUSPENTION F SPORT

48934CCONNECTOR, HEIGHT CONTROL TUBE

main48934-30010×2iUSF4#; USF40,45201209

SUSPENSION-AIR SUSPENTION; SUSPENSION-AIR SUSPENTION F SPORT

9010514182

main90105-14182

9017914045

main90179-14045

9038712057

main90387-12057

91674L1070

main91674-L1070

9415121241

main94151-21241

34 parts on this diagram · 2 diagrams in section
