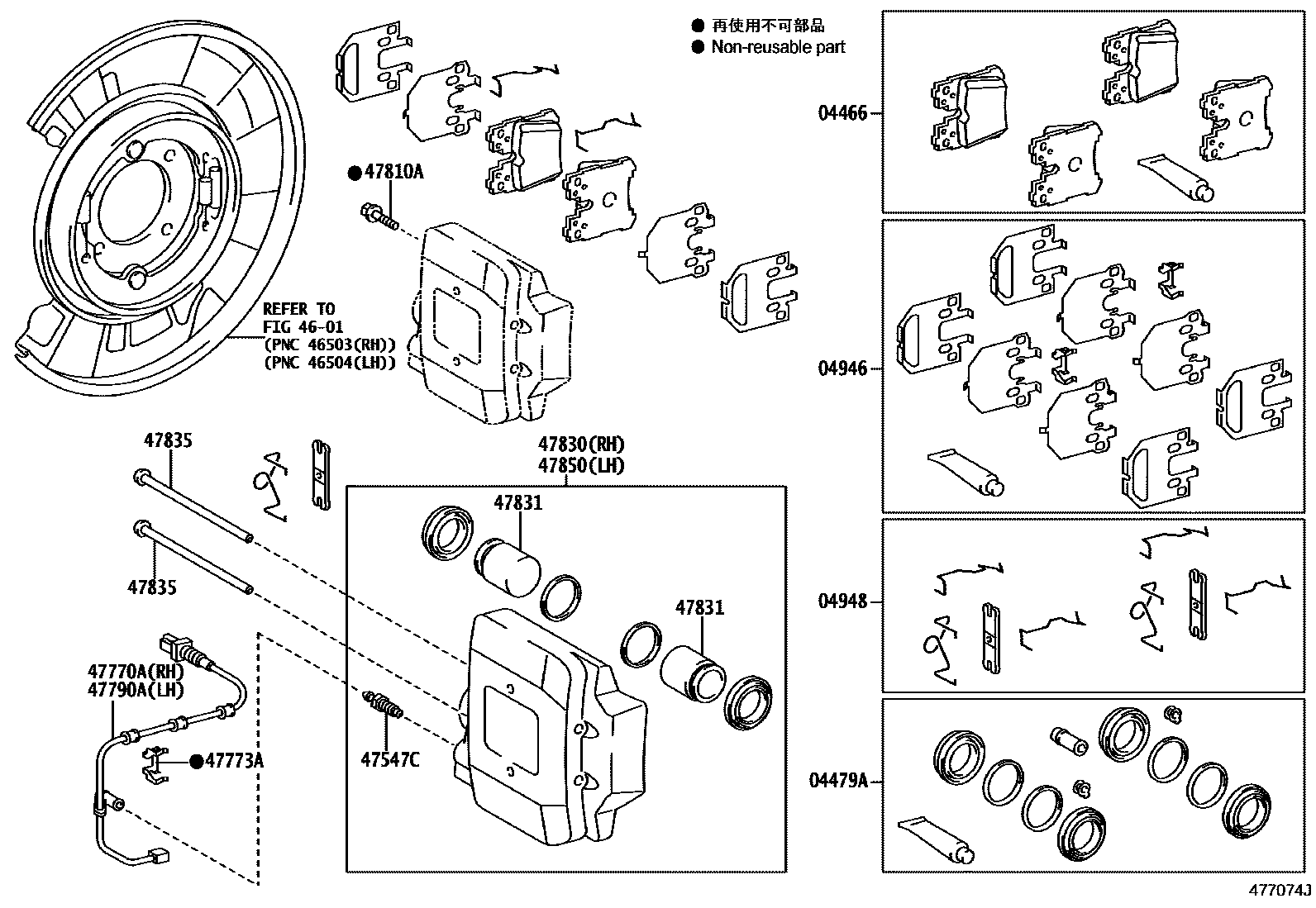

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-50130iUSF40,41201209-201708

MARK ADVICS PV565H

main04466-50160iUSF45,46201209-201708

MARK ADVICS PV565H

main04466-50170iUSF40,45201209-201708

MARK TEXTAR T4146,FRONT WHEEL BRAKE-19INCHES DISC

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-50180iUSF4#201209

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-50090iUSF40,41201209

main04946-50100iUSF40; USF45,46201209

FRONT WHEEL BRAKE-19INCHES DISC

04948FITTING KIT, DISC BRAKE, REAR

main04948-50060iUSF4#201209

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-50010×2iUSF4#201209

47770AWIRE ASSY, PAD WEAR INDICATOR, RH

main47770-50080iUSF40,41201209

main47770-50100iUSF40; USF45,46201209

FRONT WHEEL BRAKE-19INCHES DISC

47773ARETAINER, PAD WEAR INDICATOR

main47773-50030×2iUSF4#201209

47790AWIRE ASSY, PAD WEAR INDICATOR, LH

main47790-50040iUSF40,41201209

main47790-50060iUSF40; USF45,46201209

FRONT WHEEL BRAKE-19INCHES DISC

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main91552-L1245×4iUSF4#201209-201708

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-50140iUSF40,41201209

main47830-50150iUSF45,46201209

main47830-50190iUSF40,45201209

FRONT WHEEL BRAKE-19INCHES DISC

47831PISTON, REAR DISC BRAKE

main47831-50140×4iUSF4#201209

47835PIN, REAR DISC BRAKE PAD GUIDE

main47835-50140×4iUSF4#201209

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-50140iUSF40,41201209

main47850-50150iUSF45,46201209

main47850-50190iUSF40,45201209

FRONT WHEEL BRAKE-19INCHES DISC

14 parts on this diagram · 1 diagram in section
