MIRROR

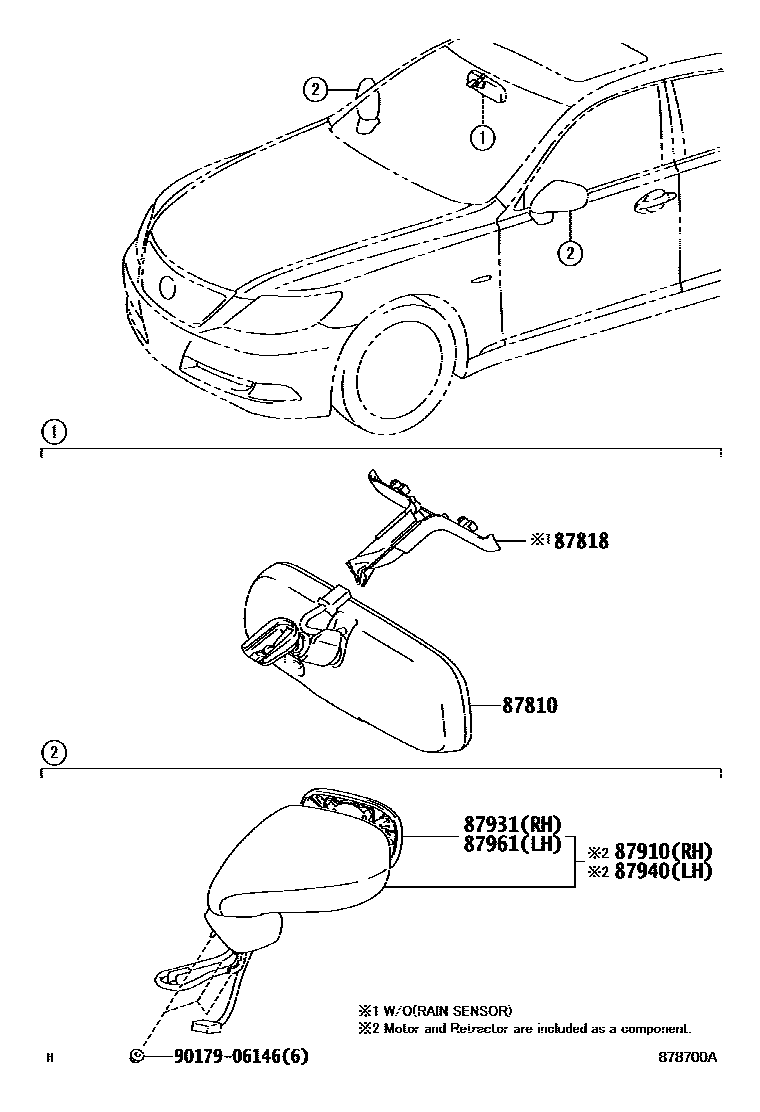

87810MIRROR ASSY, INNER REAR VIEW
HEADLAMP-*AFLS & *AHB; HEADLAMP-*AFLS & *AHB&WITH(EMV) & WITHOUT(NAVIGATION)
PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *STC)&WITH(EMV & HDD NAVIGATION)
HEADLAMP-*AFLS & *AHB&WITH(EMV & HDD NAVIGATION); WITH(EMV & HDD NAVIGATION)
KOREA SPEC&WITH(EMV & DVD NAVIGATION); USA POSSESSIONS&WITH(EMV & HDD NAVIGATION)
USA POSSESSIONS; USA POSSESSIONS&WITH(EMV) & WITHOUT(NAVIGATION)
EMV & NAVIGATION SYSTEM-WITH(EMV & HDD NAVIGATION)
INTERMITTENT WIPER-AUTO(RAIN SENSOR)&EMV & NAVIGATION SYSTEM-WITH(EMV & HDD NAVIGATION); KOREA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&EMV & NAVIGATION SYSTEM-WITH(EMV &DVD NAVIGATION)
PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *PB)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&EMV & NAVIGATION SYSTEM-WITH(EMV & HDD NAVIGATION)
PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *PB)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&EMV & NAVIGATION SYSTEM-WITH(EMV & HDD NAVIGATION)
87818COVER, INNER RR VIEW MIRROR
87910MIRROR ASSY, OUTER REAR VIEW, RH
WHITE PEARL CS.,077
PREMIUM SILVER,1F2
DK.GRAY MC.,1G0
FROSTY PEARL MC.,1G5
MERCURY GRAY MC.,1H9
BLACK,212
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
SABLE M.M.,4T5
SLEEK ECRU ME.,4U7
DEEP PERIDOT MC.,6V6
LAPIS LAZULI MC.,8V3
SHADOW SAPPHIRE ME.,8V4
BLUISH PEARL CS.,074
WHITE PEARL CS.,077
PREMIUM SILVER,1F2
DK.GRAY MC.,1G0
FROSTY PEARL MC.,1G5
BLACK,212
DK.RED MC.CS.,3R7
BEIGE ME.,4T1
SABLE M.M.,4T5
JADE GREEN ME.,6V0
DK.BLUE MC. CC.,8U0
WHITE PEARL CS.,077
PREMIUM SILVER,1F2
DK.GRAY MC.,1G0
FROSTY PEARL MC.,1G5
BLACK,212
DK.RED MC.CS.,3R7
BEIGE ME.,4T1
SABLE M.M.,4T5
JADE GREEN ME.,6V0
DK.BLUE MC. CC.,8U0
87931OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
WHITE PEARL CS.,077
PREMIUM SILVER,1F2
DK.GRAY MC.,1G0
FROSTY PEARL MC.,1G5
MERCURY GRAY MC.,1H9
BLACK,212
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
SABLE M.M.,4T5
SLEEK ECRU ME.,4U7
DEEP PERIDOT MC.,6V6
LAPIS LAZULI MC.,8V3
SHADOW SAPPHIRE ME.,8V4
BLUISH PEARL CS.,074
WHITE PEARL CS.,077
PREMIUM SILVER,1F2
DK.GRAY MC.,1G0
FROSTY PEARL MC.,1G5
BLACK,212
DK.RED MC.CS.,3R7
BEIGE ME.,4T1
SABLE M.M.,4T5
JADE GREEN ME.,6V0
DK.BLUE MC. CC.,8U0
WHITE PEARL CS.,077
PREMIUM SILVER,1F2
DK.GRAY MC.,1G0
FROSTY PEARL MC.,1G5
BLACK,212
DK.RED MC.CS.,3R7
BEIGE ME.,4T1
SABLE M.M.,4T5
JADE GREEN ME.,6V0
DK.BLUE MC. CC.,8U0
87961MIRROR OUTER, LH
9017906146
main90179-06146
7 parts on this diagram · 2 diagrams in section
