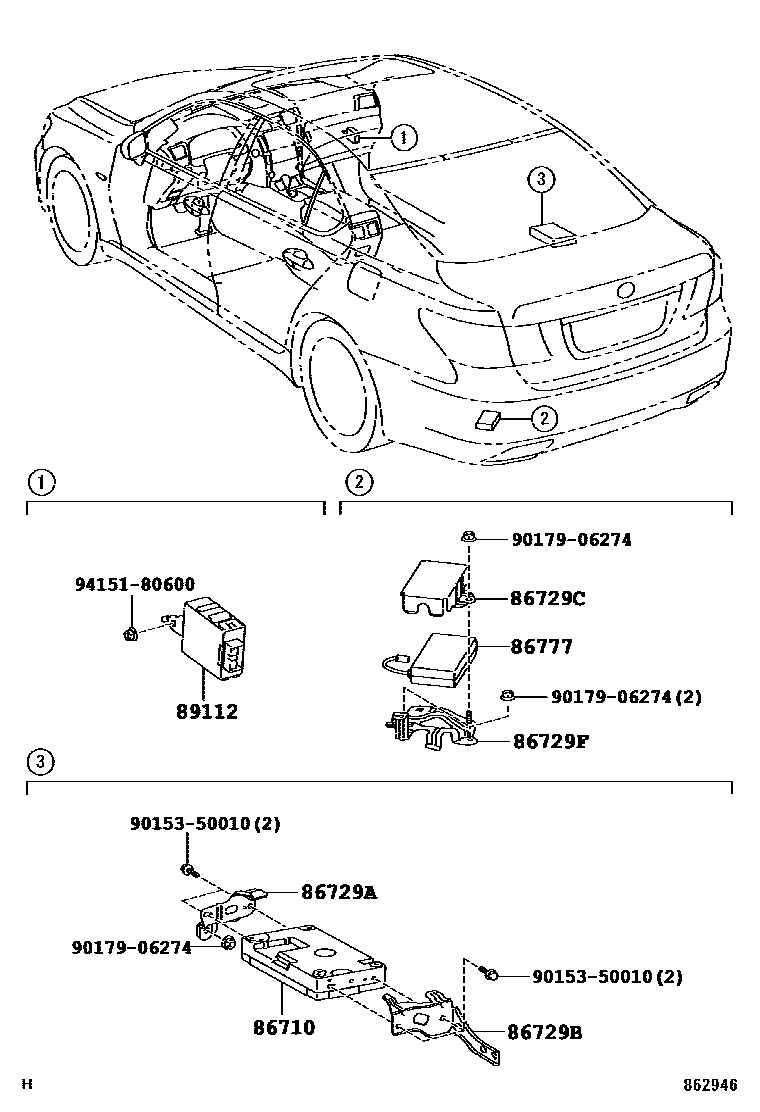

TELEPHONE & MAYDAY

0001 1 0002 1

86710COMPUTER ASSY, TELEPHONE

main86710-0W070iUSF4#200608-200809

MAYDAY SYSTEM-WITH(LEXUS LINK)

86729ABRACKET, MOBILEPHONE, NO.1

main86729-50270iUSF4#200809-200909

MAYDAY SYSTEM-WITH(LEXUS LINK)

86729BBRACKET, MOBILEPHONE, NO.2

main86729-50280iUSF4#200608-200809

MAYDAY SYSTEM-WITH(LEXUS LINK)

main86729-50320iUSF4#200809-200909

MAYDAY SYSTEM-WITH(LEXUS LINK)

86729CBRACKET, MOBILEPHONE, NO.3

main86729-50290iUSF4#200809-200909

MAYDAY SYSTEM-WITH(LEXUS LINK)

86729FBRACKET, MOBILEPHONE, NO.4

main86729-50300iUSF4#200608-200809

MAYDAY SYSTEM-WITH(LEXUS LINK)

86777BATTERY, MAYDAY

main86777-0W040iUSF4#200608-200809

MAYDAY SYSTEM-WITH(LEXUS LINK)

89112COMPUTER, BUS BUFFER

main89112-50030iUSF4#200608-200809

MAYDAY SYSTEM-WITH(LEXUS LINK)

9015350010

main90153-50010

9017906274

main90179-06274

9415180600

main94151-80600

10 parts on this diagram · 2 diagrams in section
