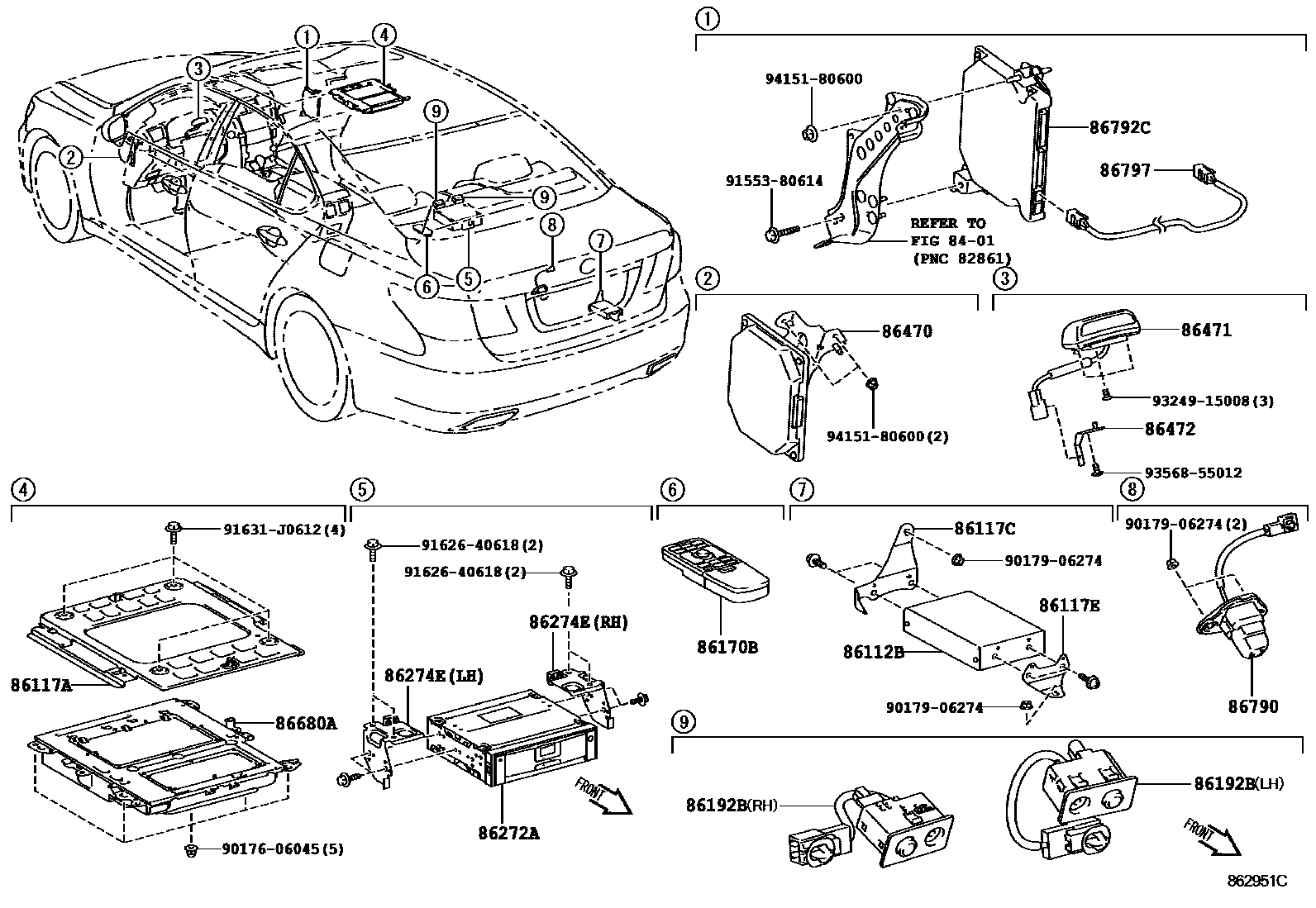

CAMERA & REAR MONITOR DISPLAY
8401
86112BSELECTOR, MULTI-DISPLAY
WITH(REAR DISPLAY)
86117ABRACKET, TELEVISION DISPLAY, A
WITH(REAR DISPLAY)
86117CBRACKET, MULTI-DISPLAY CONTROLLER, NO.2
WITH(REAR DISPLAY)
86117EBRACKET, MULTI-DISPLAY CONTROLLER, NO.3
WITH(REAR DISPLAY)
86170BSWITCH & VOLUME ASSY, TELEVISION
WITH(DVD PLAYER & REAR DISPLAY)&EMV & NAVIGATION SYSTEM-WITH(EMV & HDD NAVIGATION)
USA POSSESSIONS&WITH(DVD PLAYER & REAR DISPLAY)&EMV & NAVIGATION SYSTEM-WITH(EMV)& WITHOUT(NAVIGATION )
WITH(LUXURY2)&SATELLITE RADIO-WITH&WITH(DVD PLAYER & REAR DISPLAY)
USA POSSESSIONS&WITH(REAR DISPLAY)
KOREA SPEC&VERSION U OR U I PACKAGE OR KOREA SPEC&WITH(EMV & DVD NAVIGATION)
KOREA SPEC&VERSION U OR U I PACKAGE OR KOREA SPEC&WITH(EMV & DVD NAVIGATION)
USA POSSESSIONS&W(OTTOMAN:5 SEAT)&WITH(EMV & HDD NAVIGATION)
USA POSSESSIONS&W(OTTOMAN:5 SEAT)
86192BTERMINAL, HEADPHONE
REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V)&WITH(DVD PLAYER & REAR DISPLAY:ROOF),RH
REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER)&WITH(DVD PLAYER & REAR DISPLAY:ROOF),LH
REAR ARMREST-W(OTTOMAN:5SEAT+*RSE)&WITH(DVD PLAYER & REAR DISPLAY:CONSOLE),LH
REAR ARMREST-W(OTTOMAN:5SEAT+*RSE)&WITH(DVD PLAYER & REAR DISPLAY:CONSOLE),RH
86272ACONTROLLER, DISC PLAYER
REAR SEAT ADJUSTER-W(OTTOMAN)&WITH(DVD PLAYER & REAR DISPLAY)
KOREA SPEC&REAR SEAT ADJUSTER-W(OTTOMAN)&WITH(DVD PLAYER & REAR DISPLAY)
sub86272-50041
86274EBRACKET, DISC PLAYER
KOREA SPEC&W(OTTOMAN:4 SEAT)&AUDIO-DVD CHANGER,MARK LEVINSON,LH
USA POSSESSIONS&W(OTTOMAN:4 SEAT)&AUDIO-DVD CHANGER,MARK LEVINSON,RH
KOREA SPEC&W(OTTOMAN:5 SEAT)&AUDIO-DVD CHANGER,MARK LEVINSON,RH
W(OTTOMAN:5 SEAT)&AUDIO-DVD CHANGER,MARK LEVINSON,SDARS,LH
86470COMPUTER ASSY, DRIVER MONITOR
PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *PB)
PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *STC)
86471CAMERA, DRIVER MONITOR
PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *STC),BLACK,TRIM1#,2#
PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *PB),ORCHID BROWN,TRIM00,01
86472BRACKET, DRIVER MONITOR
PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *PB)
86680ADISPLAY ASSY, TELEVISION
DENSO,WITH(DVD PLAYER & REAR DISPLAY),IVORY,TRIM00
sub86680-50081
DENSO,WITH(DVD PLAYER & REAR DISPLAY),MELLOW WHITE,TRIM01
sub86680-50081
PANASONIC,W(OTTOMAN:4 SEAT),MELLOW WHITE,TRIM01,07
sub86680-50121
PANASONIC,KOREA SPEC&VERSION U OR U I PACKAGE OR KOREA SPEC,IVORY,TRIM00,06
sub86680-50121
86790CAMERA ASSY, TELEVISION
BACK MONITOR (REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST)
BACK MONITOR(REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST)
sub86790-50030
86792CCOMPUTER, PARKING ASSIST
SATELLITE RADIO-WITH&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST)
SATELLITE RADIO-WITH&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST)
SATELLITE RADIO-WITH&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST)
USA POSSESSIONS&WITH(EMV & HDD NAVIGATION)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST)
86797WIRE, TELEVISION CAMERA, NO.2
SATELLITE RADIO-WITH&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST)
USA POSSESSIONS&WITH(EMV & HDD NAVIGATION)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST)
9017606045
main90176-06045
9017906274
main90179-06274
9155380614
main91553-80614
9162640618
main91626-40618
91631J0612
main91631-J0612
9324915008
main93249-15008
9356855012
main93568-55012
9415180600
main94151-80600
24 parts on this diagram · 4 diagrams in section
