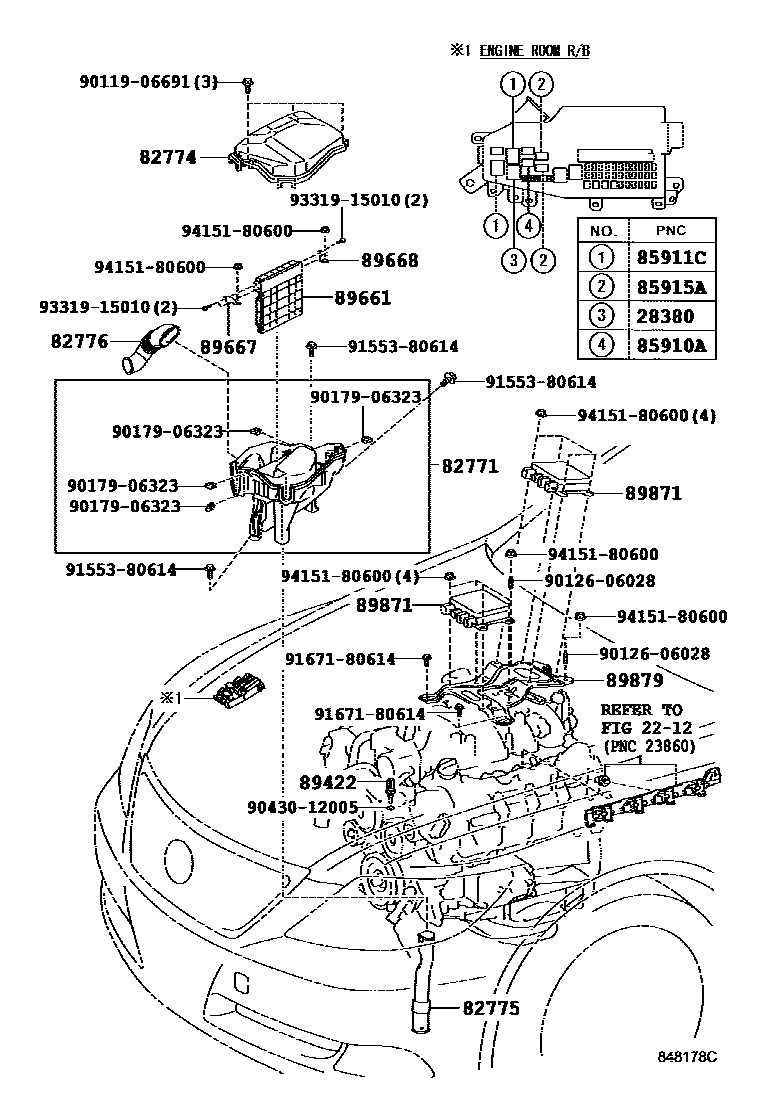

ELECTRONIC FUEL INJECTION SYSTEM

2212

28380RELAY ASSY, FUEL PUMP

main90987-03003i200809-200909

82771BOX, ENGINE ROOM ECU

main82771-50020i200608-200703

main82771-50030i200703-200809

82774COVER, ENGINE ROOM ECU

main82774-50020i200608-200703

main82774-50030i200703-200809

82775DUCT, ENGINE ROOM ECU INLET

main82775-50020i200608-200809

82776DUCT, ENGINE ROOM ECU OUTLET

main82776-50020i200608-200809

main82776-50030i200909

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02027i200809-200909

85911CRELAY, EFI 2

main90987-02025×2i200608-200809

85915ARELAY, MAIN

main90987-02027×2i200909-201209

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030i200608-200809

89661COMPUTER, ENGINE CONTROL

main89661-50C00i200708-200710

main89661-50C01i200710-200805

main89661-50F21i201007-201009

main89661-50F91i201007-201009

main89661-50J00i201009-201101

main89661-50J30i201009-201101

main89661-50A60supersedes 89661-50A12i200608-200708

KOREA SPEC

main89661-50C50i200708-200809

KOREA SPEC

main89661-50D40supersedes 89661-50J01i200809-200909

KOREA SPEC

main89661-50E00supersedes 89661-50K20i200809-200909

KOREA SPEC

main89661-50F80supersedes 89661-50J01i200909-201111

KOREA SPEC

main89661-50F81supersedes 89661-50J01i201112-201209

KOREA SPEC

main89661-50G50i200909-201009

KOREA SPEC

main89661-50G51i201112-201209

KOREA SPEC

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-50040i200608-200809

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-50040i200608-200809

89871DRIVER, INJECTOR

main89871-50010×2i200608-200809

89879BRACKET, INJECTOR DRIVER

main89879-50010i200608-200809

9011906691

main90119-06691

9012606028

main90126-06028

9017906323

main90179-06323

9043012005

main90430-12005

9155380614

main91553-80614

9167180614

main91671-80614

9331915010

main93319-15010

9415180600

main94151-80600

23 parts on this diagram · 1 diagram in section
