REAR COMBINATION LAMP

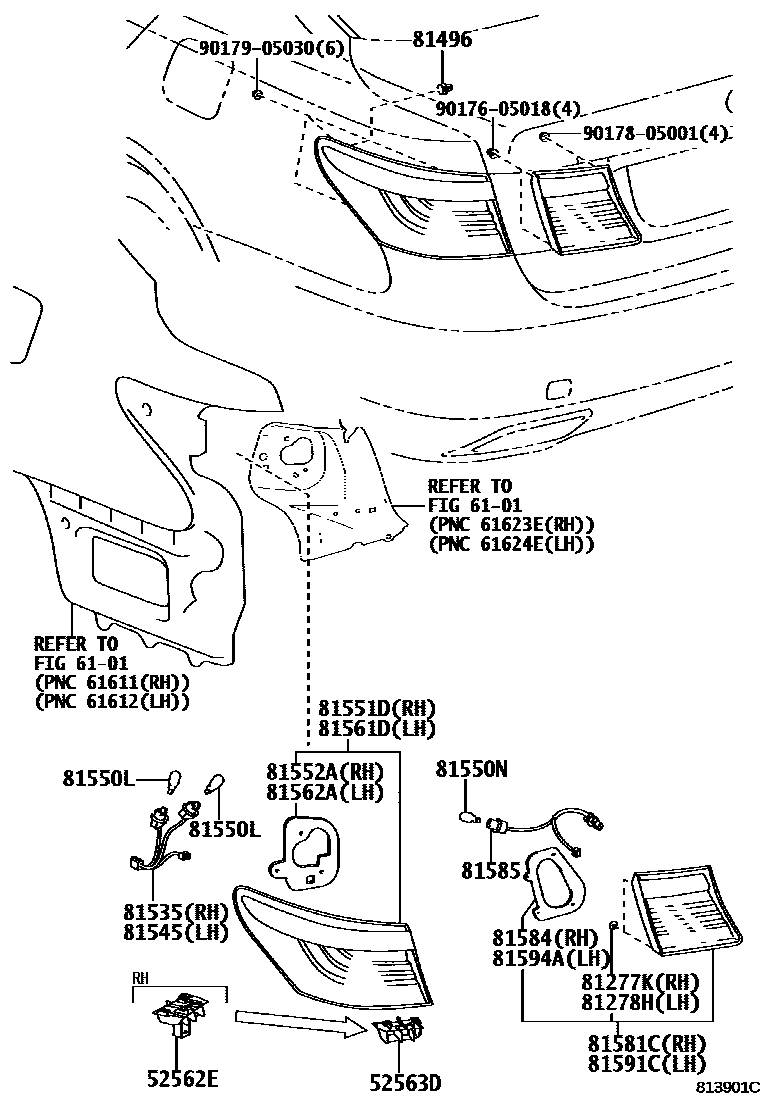

Parts diagram

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-50010i200608-200809

main52562-50020i200909

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-50010i200608-200809

main52563-50020i200909

6101SIDE MEMBER

→ Go to FIG 61-01

81277KSHADE, LICENSE PLATE LAMP, RH

main81277-20240×2i200608-200809

81278HSHADE, LICENSE PLATE LAMP, LH

main81277-20240×2i200608-200809

81496GUIDE, REAR COMBINATION LAMP

main81496-50010×2i200608-200809

81535SOCKET & WIRE, REAR TURN SIGNAL LAMP, RH

main81555-50170i200608-200809

main81555-50210i200909

81545SOCKET & WIRE, REAR TURN SIGNAL LAMP, LH

main81555-50170i200608-200809

main81555-50210i200909

81550LBULB, REAR TURN SIGNAL LAMP

main90981-11059×4i200608-200809

main90981-13043×2i200909-201209

81550NBULB, BACK UP LAMP

main90981-11059×2i200608-200809

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-50160i200608-200809

main81551-50200i200909

81552AGASKET, REAR COMBINATION LAMP, RH

main81552-50170i200608-200809

main81552-50210i200909

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-50160i200608-200809

main81561-50200i200909

81562AGASKET, REAR COMBINATION LAMP, LH

main81562-50170i200608-200809

main81562-50210i200909

81581CLENS AND BODY, REAR LAMP, RH

main81581-50150i200608-200809

main81581-50220i200909

81584PACKING, REAR LAMP RH

main81582-50160i200608-200809

main81584-50230i200909

81585SOCKET & WIRE, REAR LAMP

main81585-50160×2i200608-200809

main81585-50220×2i200909

81591CLENS, REAR LAMP, LH

main81591-50150i200608-200809

main81591-50220i200909

81594AGASKET, REAR LAMP LH

main81592-50160i200608-200809

main81594-50230i200909

9017605018

main90176-05018

9017805001

main90178-05001

9017905030

main90179-05030

22 parts on this diagram · 2 diagrams in section
