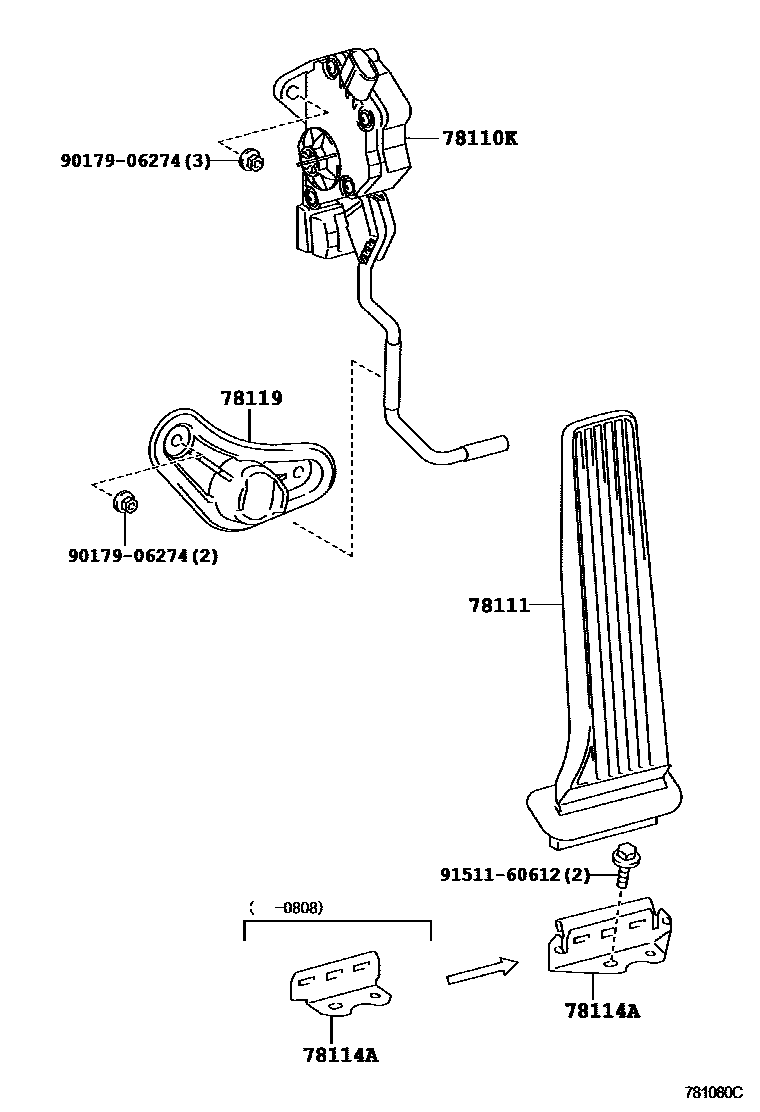

ACCELERATOR LINK

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-50010iUSF4#200608-200809

78111PEDAL, ACCELERATOR

main78111-30130iUSF4#200608-200809

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main55155-50010iUSF4#200608-200809

main78108-50030iUSF4#200809-200909

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-50070iUSF4#200608-200809

9017906274

main90179-06274

9151160612

main91511-60612

6 parts on this diagram · 1 diagram in section
