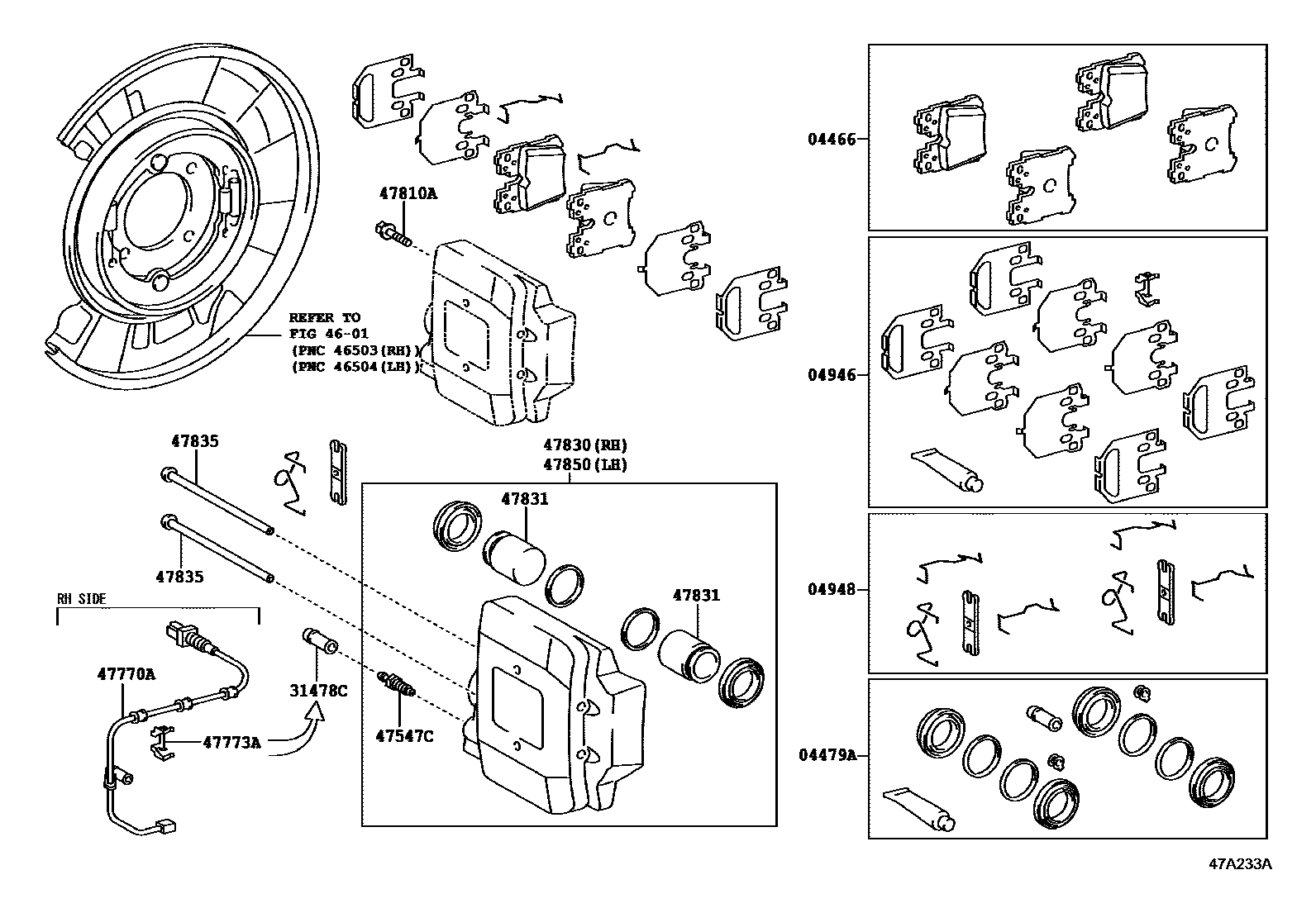

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-50130iUSF4#200608-200809

MARK ADVICS PV565H

main04466-50150iUSF45,46200909-201101

MARK ADVICS PV565H

main04466-50160iUSF45,46201101-201209

MARK ADVICS PV565H

main04466-0W010iUSF41200608-200704

MARK TEXTAR T4146,SPORTS PACKAGE

main04466-0W020iUSF41200704-200809

MARK TEXTAR T4146,SPORTS PACKAGE

main04466-50170iUSF40201208-201209

MARK TEXTAR T4146,FRONT WHEEL BRAKE-19INCHES DISC

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-50180iUSF4#200608-200809

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-50050iUSF40,41200809-200909

main04946-50080iUSF45,46200809-200909

main04946-50090iUSF40,41200909

main04946-50100iUSF45,46201101

main04946-50110iUSF45,46200909-201012

main04946-50070iUSF41200809-200909

SPORTS PACKAGE

04948FITTING KIT, DISC BRAKE, REAR

main04948-50060iUSF4#200909

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-14010iUSF4#200608-200809

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-50010×2iUSF4#200608-200809

47770AWIRE ASSY, PAD WEAR INDICATOR, RH

main47770-50080iUSF4#200608-200809

main47770-50100iUSF40; USF45,46200909

FRONT WHEEL BRAKE-19INCHES DISC

47773ARETAINER, PAD WEAR INDICATOR

main47773-50030iUSF4#200909-201209

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main91552-L1245×4iUSF4#200608-200809

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-50140iUSF40,41200909

main47830-50150iUSF41; USF45,46200809-200909

SPORTS PACKAGE

main47830-50190iUSF40200909

FRONT WHEEL BRAKE-19INCHES DISC

47831PISTON, REAR DISC BRAKE

main47831-50140×4iUSF4#200909

47835PIN, REAR DISC BRAKE PAD GUIDE

main47835-50140×4iUSF4#200809-200909

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-50140iUSF4#200608-200809

main47850-50150iUSF41; USF45,46200809-200909

SPORTS PACKAGE

main47850-50190iUSF40200909

FRONT WHEEL BRAKE-19INCHES DISC

14 parts on this diagram · 2 diagrams in section
