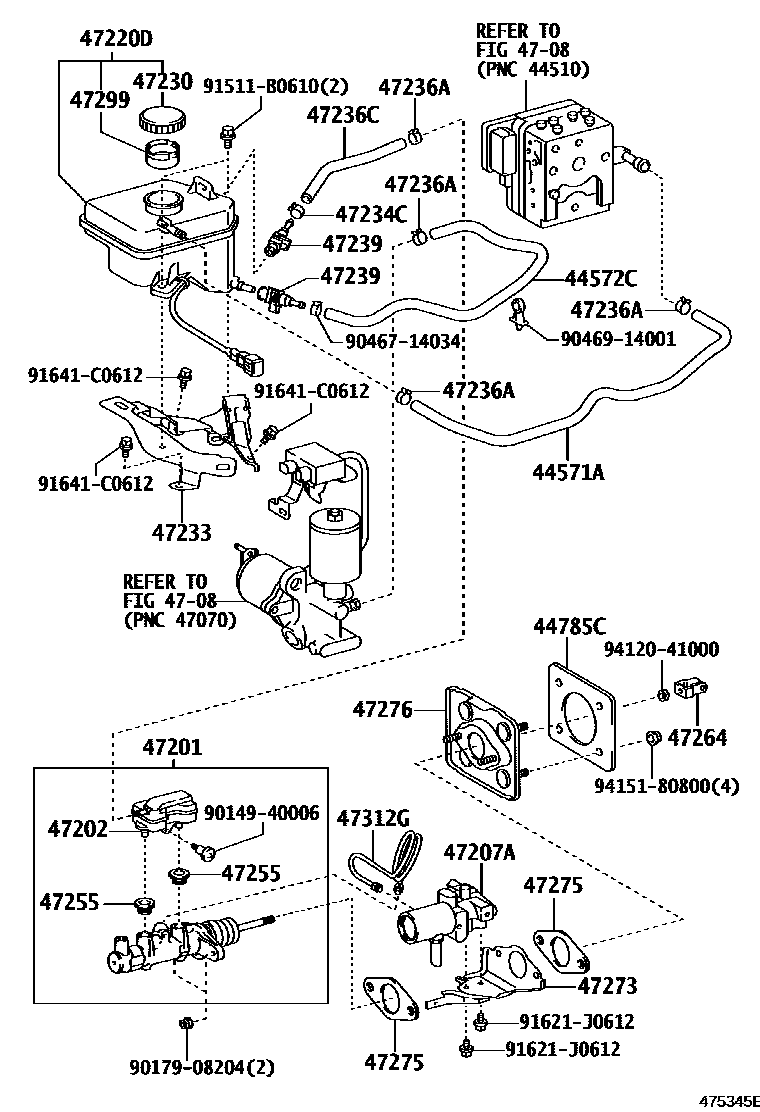

BRAKE MASTER CYLINDER

44571AHOSE, BRAKE ACTUATOR, NO.1

main44571-50110iUSF4#200608-200809

44572CHOSE, BRAKE ACTUATOR, NO.2

main44572-50080iUSF4#200608-200809

44785CGASKET, BRAKE BOOSTER

main44785-47010iUSF4#200608-200809

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-50350iUSF4#200608-200809

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47221-50080iUSF4#200608-200809

47207ACYLINDER SUB-ASSY, BRAKE STROKE SIMULATOR

main47207-50020iUSF4#200608-200809

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-50230iUSF4#200608-200809

main47220-50260iUSF4#200909-201209

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-58010iUSF4#200608-200809

47233BRACKET, RESERVOIR

main47233-50020iUSF4#200608-200809

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main90467-14034iUSF4#200608-200809

47236ACLIP(FOR RESERVOIR TUBE)

main96135-51300×4iUSF4#200608-200809

47236CHOSE, RESERVOIR TUBE

main47234-50020iUSF4#200608-200809

47239CONNECTOR, BRAKE MASTER CYLINDER RESERVOIR

main47231-50010×2iUSF4#200608-200809

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010×2iUSF4#200608-200809

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-26030iUSF4#200608-200809

47273BRACKET, BRAKE STROKE SIMULATOR

main47273-50020iUSF4#200608-200809

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020×2iUSF4#200608-200809

47276BRACKET, BRAKE MASTER CYLINDER

main47276-30040iUSF4#200608-200809

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-30190iUSF4#200608-200809

47312GTUBE, BRAKE STROKE SIMULATOR

main44255-50050iUSF4#200608-200809

9014940006

main90149-40006

9017908204

main90179-08204

9046714034

main90467-14034

9046914001

main90469-14001

91511B0610

main91511-B0610

91621J0612

main91621-J0612

91641C0612

main91641-C0612

9412041000

main94120-41000

9415180800

main94151-80800

30 parts on this diagram · 1 diagram in section
