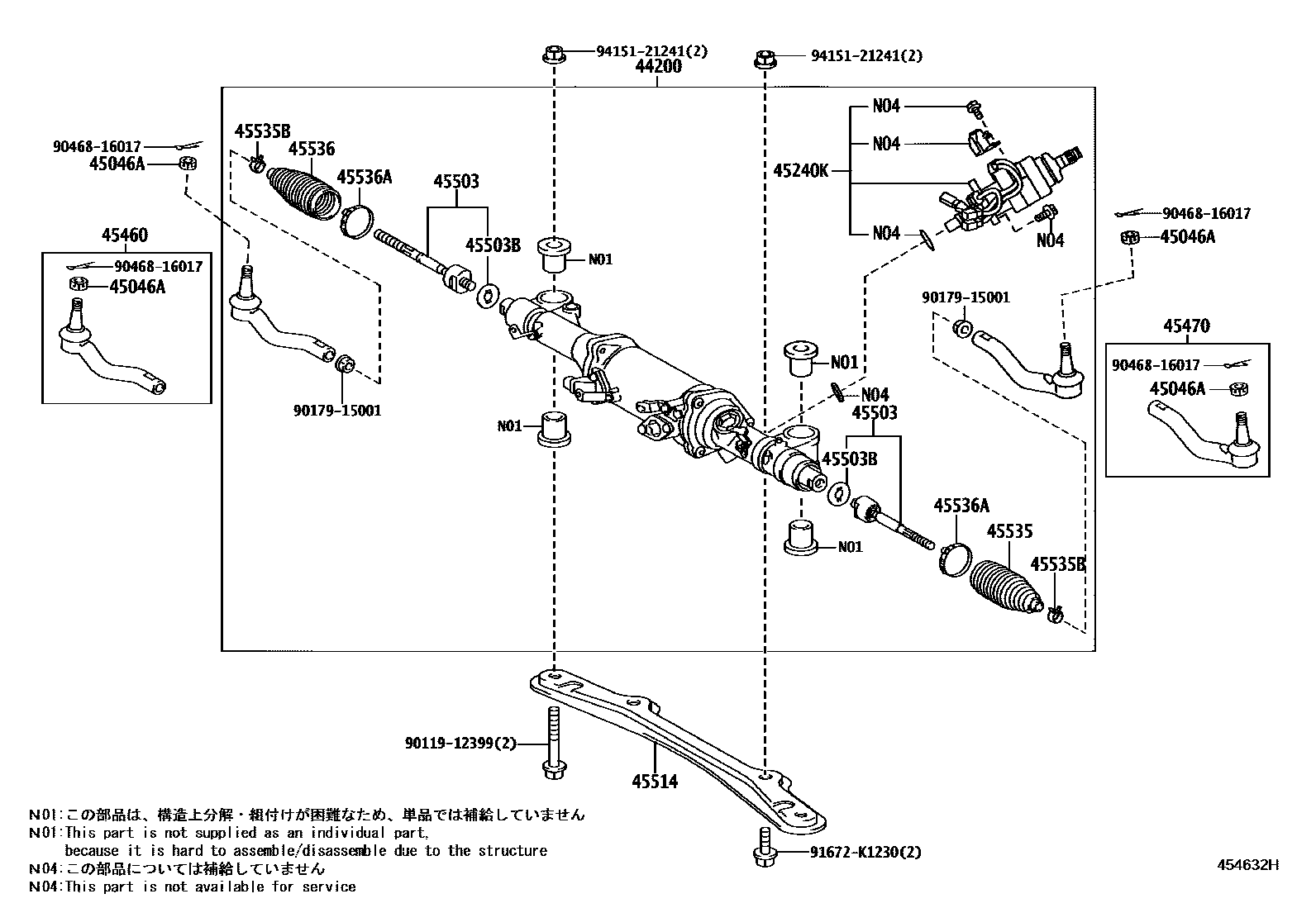

FRONT STEERING GEAR & LINK
44200LINK ASSY, POWER STEERING
45046ANUT, CASTLE(FOR TIE ROD END)
45240KACTUATOR ASSY, STEERING
45503END SUB-ASSY, STEERING RACK
W/O MARK
MARK=YELLOW
45503BWASHER, CLAW(FOR STEERING RACK END)
OD=42
45514BRACKET, STEERING RACK HOUSING, NO.1
45535BOOT, STEERING RACK, NO.1
MARK=YELLOW
W/O MARK
45535BCLIP(FOR STEERING RACK BOOT)
W/O MARK
MARK=YELLOW
45536BOOT, STEERING RACK, NO.2
MARK=YELLOW
W/O MARK
45536ACLAMP(FOR STEERING RACK BOOT NO.2)
9011912399
main90119-12399
9017915001
main90179-15001
9046816017
main90468-16017
91672K1230
main91672-K1230
9415121241
main94151-21241
17 parts on this diagram · 6 diagrams in section
