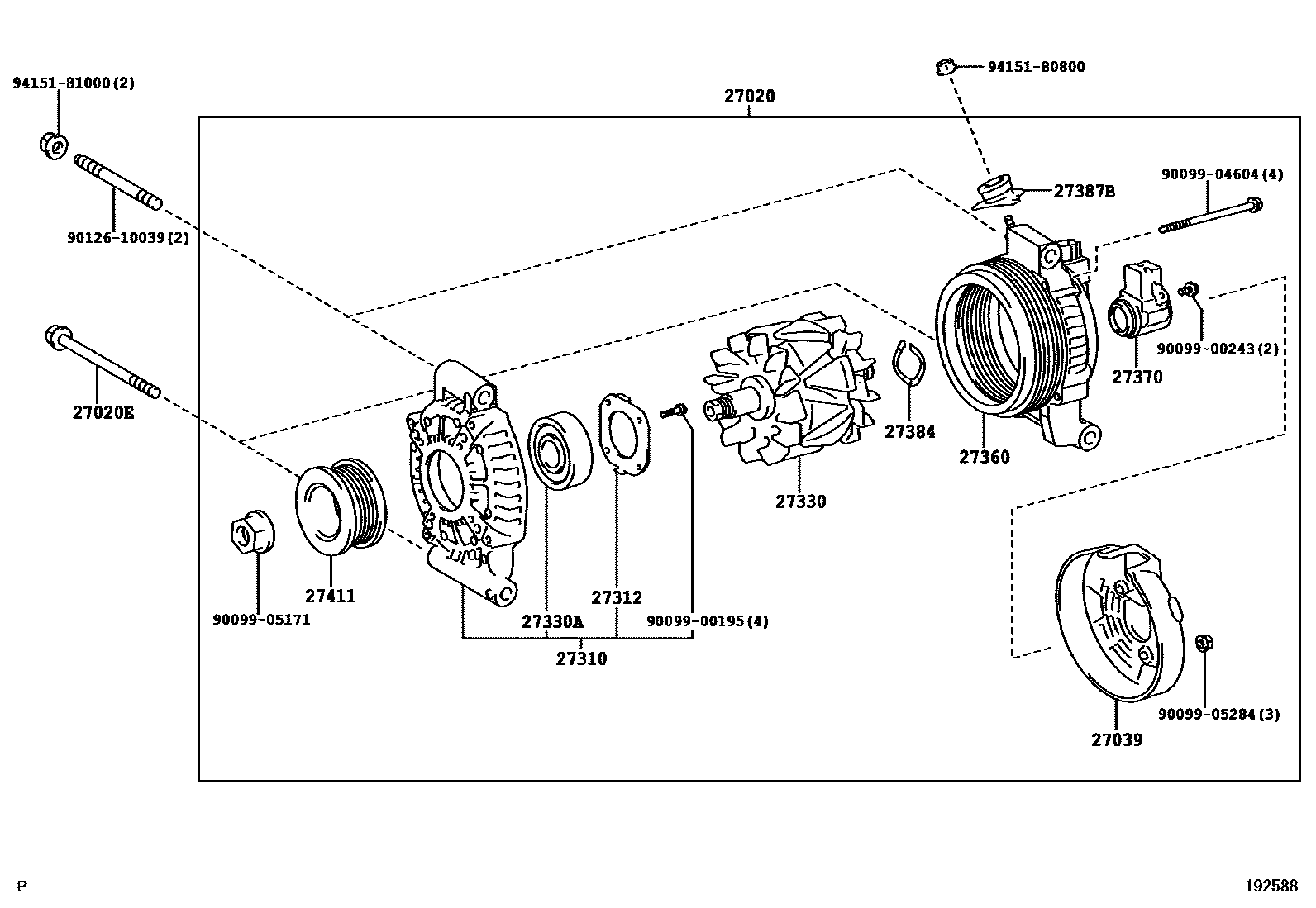

ALTERNATOR

27020ALTERNATOR ASSY

main27060-38040i1URFSE..USF4#200608-200707

12V 180A

main27060-38041i1URFSE..USF4#200708-200809

12V 180A

27020EBOLT(FOR ALTERNATOR)

main90105-10557×2i1URFSE..USF4#200608-200809

27039COVER, ALTERNATOR REAR END

main27039-38130i1URFSE..USF4#200608-200809

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-38130i1URFSE..USF4#200608-200809

27312PLATE, RETAINER

main27312-42010i1URFSE..USF4#200608-200809

27330ROTOR ASSY, ALTERNATOR

main27330-38130i1URFSE..USF4#200608-200805

main27330-38140i1URFSE..USF4#200805-200809

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10219i1URFSE..USF4#200608-200611

main90099-10226i1URFSE..USF4#200612-200809

27360COIL ASSY, ALTERNATOR

main27360-38130i1URFSE..USF4#200608-200809

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-58460i1URFSE..USF4#200608-200809

27384WASHER

main27384-38130i1URFSE..USF4#200608-200809

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-38130i1URFSE..USF4#200608-200809

27411PULLEY, ALTERNATOR

main27411-50030i1URFSE..USF4#200608-200809

9009900195

main90099-00195

9009900243

main90099-00243

9009904604

main90099-04604

9009905171

main90099-05171

9009905284

main90099-05284

9012610039

main90126-10039

9415180800

main94151-80800

9415181000

main94151-81000

20 parts on this diagram · 1 diagram in section
