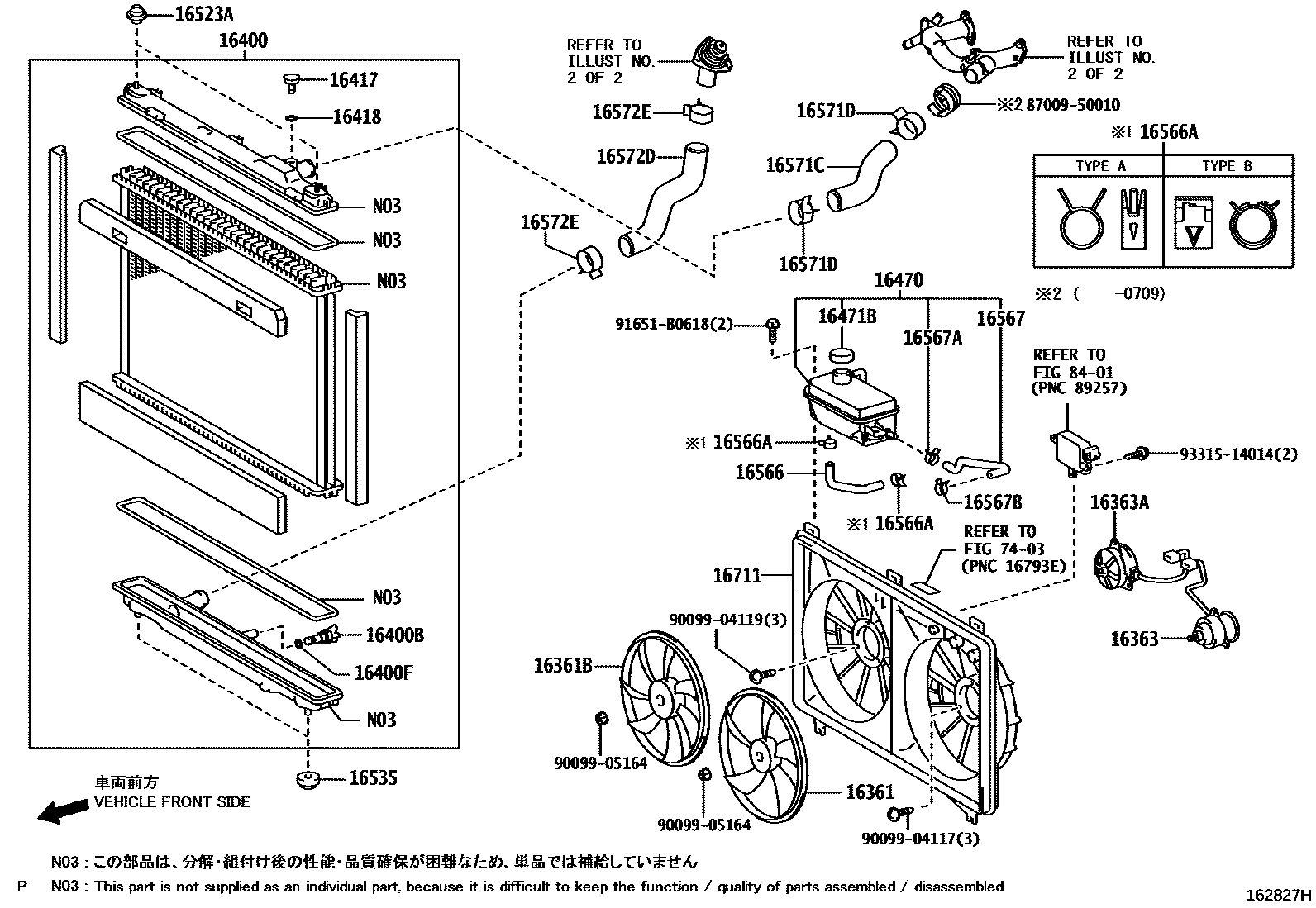

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1

16361FAN

main16361-38030i1URFSE..USF40,41200809-200909

main16361-38070i1URFSE..USF45,46200909

16361BFAN, NO.2

main16361-38040i1URFSE..USF40,41200809-200909

main16361-38080i1URFSE..USF45,46200809-200909

16363MOTOR, COOLING FAN

main16363-31010i1URFSE..USF40,41200809-200909

main16363-38070i1URFSE..USF45,46200909

16363AMOTOR, COOLING FAN, NO.2

main16363-38010i1URFSE..USF40,41200909

main16363-38080i1URFSE..USF45,46200909

16400RADIATOR ASSY

main16400-38170i1URFSE..USF40,41200809-200909

main16400-38171i1URFSE..USF40,41201006-201209

main16400-38200i1URFSE..USF45,46200909-201010

PNC 16567=TYPE A

main16400-38201i1URFSE..USF45,46201112-201209

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280i1URFSE..USF4#200608-200809

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i1URFSE..USF4#200608-200809

16417COCK

main16417-28530i1URFSE..USF4#200608-200809

16418PACKING

main16418-20290i1URFSE..USF4#200608-200809

16470TANK ASSY, RADIATOR RESERVE

main16470-38020i1URFSE..USF4#200608-200809

main16470-38021i1URFSE..USF45,46201010-201112

PNC 16567=TYPE B

16471BCAP, RESERVE TANK

main16475-28120i1URFSE..USF4#200608-200803

main16475-51010i1URFSE..USF4#200804-200809

16523ACUSHION, RADIATOR SUPPORT

main16523-38010×2i1URFSE..USF4#200809-200909

16535SUPPORT, RADIATOR, LOWER

main90480-40021×2i1URFSE..USF4#200608-200809

16566HOSE, RESERVE TANK OUTLET

main16566-38010i1URFSE..USF40,41200909

main16566-38020i1URFSE..USF45,46200809-200909

16566ACLIP(FOR RESERVE TANK OUTLET)

main90467-13054×2i1URFSE..USF4#200909-201112

TYPE A:REFER ILLUST.

main96135-51300×2i1URFSE..USF4#200608-200809

TYPE A:REFER ILLUST.

main96137-41501×2i1URFSE..USF4#200608-200809

TYPE B:REFER ILLUST.

16567HOSE(FOR RADIATOR RESERVE TANK)

main16567-38010i1URFSE..USF4#200608-200809

main16567-38011i1URFSE..USF40,41201006-201209

16567ACLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-16037i1URFSE..USF4#200809-200909

16567BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.2)

main90467-16037i1URFSE..USF4#200608-200809

main96136-42101i1URFSE..USF40,41201006-201209

16571CHOSE, RADIATOR, NO.1

main16571-38050i1URFSE..USF40,41200909-201111

main16571-38051i1URFSE..USF40,41201111

main16571-38060i1URFSE..USF45,46200909-201111

main16571-38061i1URFSE..USF45,46201111

16571DCLIP, RADIATOR HOSE, NO.1

main90466-39002×2i1URFSE..USF4#201111

main96136-44801×2i1URFSE..USF4#200909-201111

main96136-54801×2i1URFSE..USF4#200809-200907

16572DHOSE, RADIATOR, NO.2

main16572-38100i1URFSE..USF4#200608-200809

main16572-38101i1URFSE..USF40,41201111

main16572-38110i1URFSE..USF45,46200909-201111

main16572-38111i1URFSE..USF45,46201111

16572ECLIP, RADIATOR HOSE, NO.2

main90466-39002×2i1URFSE..USF4#201111

main96136-44801×2i1URFSE..USF4#200908-200909

main96136-54801×2i1URFSE..USF4#200809-200907

16711SHROUD, FAN

main16711-38060i1URFSE..USF40,41200909

main16711-38100i1URFSE..USF45,46200909

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8700950010HOSE SET, WATER, NO.1

main87009-50010

9009904117

main90099-04117

9009904119

main90099-04119

9009905164

main90099-05164

91651B0618

main91651-B0618

9331514014

main93315-14014

31 parts on this diagram · 3 diagrams in section
