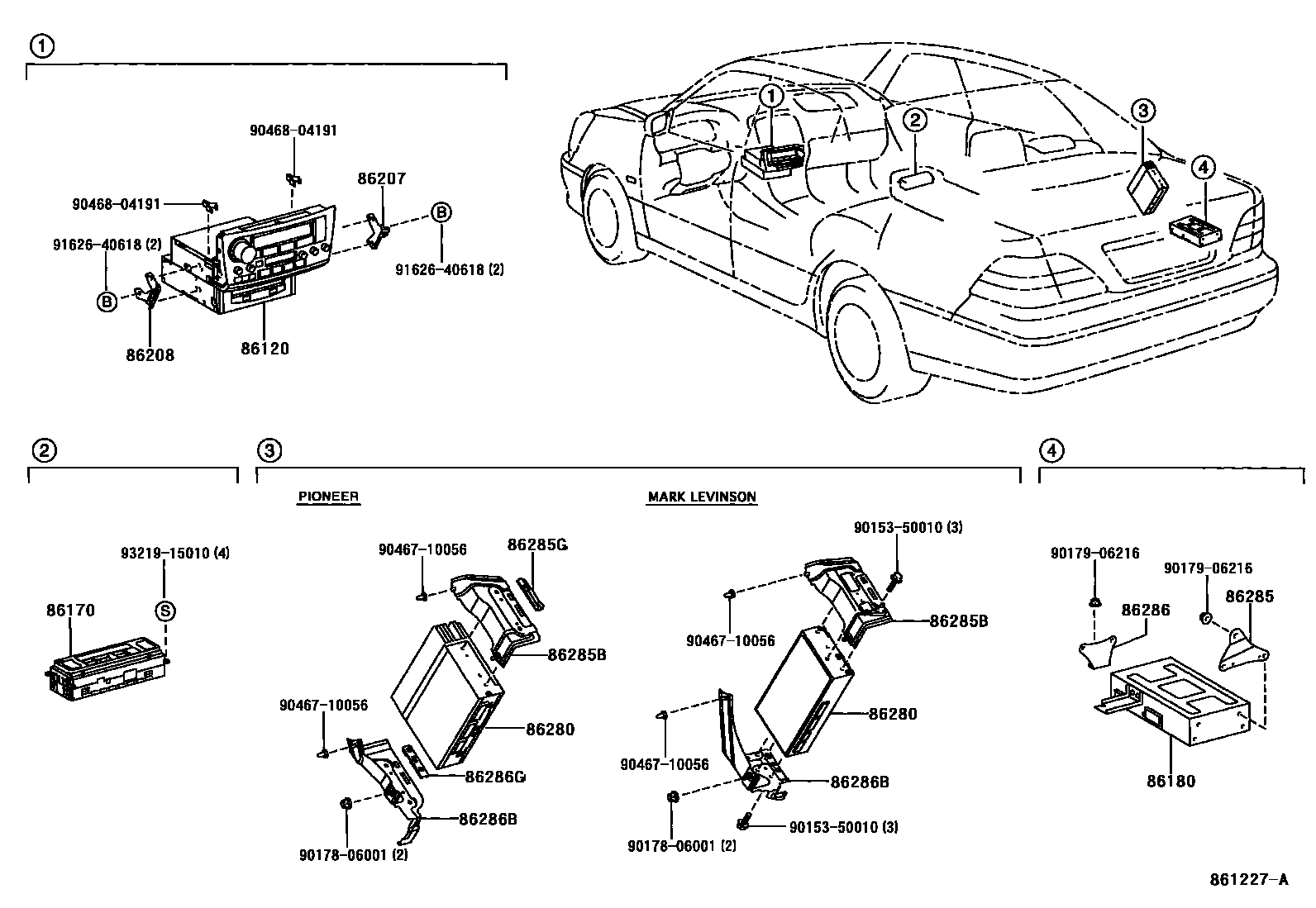

RADIO RECEIVER & AMPLIFIER & CONDENSER

86120RECEIVER ASSY, RADIO

main86120-50750i200008-200107

PIONEER,ID=P6814,TYPE A:REFER TO ILLUSTRATION, W(AM/FM CASSETTE EMV MARK LEVINSON7 SPEAKER)

main86120-50751i200107-200307

PIONEER,ID=P6819,TYPE A:REFER TO ILLUSTRATION, W(AM/FM CASSETTE EMV MARK LEVINSON7 SPEAKER)

main86120-50760i200008-200107

PIONEER,ID=P6810,TYPE A:REFER TO ILLUSTRATION, W(AM/FM CASSETTE EMV 7 SPEAKER)

main86120-50761i200107-200307

PIONEER,ID=P6820,TYPE A:REFER TO ILLUSTRATION, W(AM/FM CASSETTE EMV 7 SPEAKER)

main86120-50820i200008-200307

PIONEER,ID=P6815,TYPE B:REFER TO ILLUSTRATION ,W(AM/FM CASSETTE MARK LEVINSON 7 SPEAKER)

main86120-50830i200008-200307

PIONEER,ID=P6811,TYPE B:REFER TO ILLUSTRATION ,W(AM/FM CASSETTE 7 SPEAKER)

main86120-50B30i200307

PIONEER,ID=P6836,TYPE A:REFER TO ILLUSTRATION

main86120-50B50i200307

PIONEER,ID=P6837,TYPE B:REFER TO ILLUSTRATION

main86120-50B70i200307

PIONEER,ID=P6834,TYPE C:REFER TO ILLUSTRATION

main86120-50B90i200307

PIONEER,ID=P6835,TYPE D:REFER TO ILLUSTRATION

main86120-50C30i200307

PIONEER,ID=P7825,TYPE E:REFER TO ILLUSTRATION

main86120-50E10i200307

PIONEER,ID=P7826,TYPE F:REFER TO ILLUSTRATION

86170SWITCH AND VOLUME ASSY, RADIO

main86170-50110i200008-200307

main86170-50160i200307-200608

86180TUNER ASSY, STEREO COMPONENT

main86180-50110i200008-200107

main86180-50111i200107-200208

main86180-50112i200208-200307

main86180-50151i200307-200408

TYPE A:REFER TO ILLUSTRATION

main86180-50152i200408

TYPE A:REFER TO ILLUSTRATION

main86180-50200i200307

TYPE B:REFER TO ILLUSTRATION

86207BRACKET SUB-ASSY, RADIO RECEIVER, RH

main86207-50010i200008-200307

86208BRACKET SUB-ASSY, RADIO RECEIVER, LH

main86208-50010i200008-200307

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0W040i200008-200108

MARK LEVINSON

main86280-0W041i200108-200307

MARK LEVINSON

main86280-0W250i200307

MARK LEVINSON

main86280-50260i200008-200107

PIONEER

main86280-50261i200107-200307

PIONEER

main86280-50330i200307

PIONEER

86285BRACKET, AMPLIFIER, NO.1

main86285-50100i200008-200307

86285BBRACKET, AMPLIFIER, NO.1

main86285-50090i200008-200307

PIONEER

main86285-50110i200008-200307

MARK LEVINSON

main86285-50110i200307

86285GGUIDE, AMPLIFIER BRACKET, NO.1

main82876-22010i200008-200307

86286BRACKET, AMPLIFIER, NO.2

main86286-50030i200008-200307

86286BBRACKET, AMPLIFIER, NO.2

main86286-50020i200008-200307

PIONEER

main86286-50040i200008-200307

MARK LEVINSON

main86286-50040i200307

86286GGUIDE, AMPLIFIER BRACKET, NO.2

main82871-22010i200008-200307

9015350010

main90153-50010

9017806001

main90178-06001

9017906216

main90179-06216

9046710056

main90467-10056

9046804191

main90468-04191

9162640618

main91626-40618

9321915010

main93219-15010

19 parts on this diagram · 5 diagrams in section
