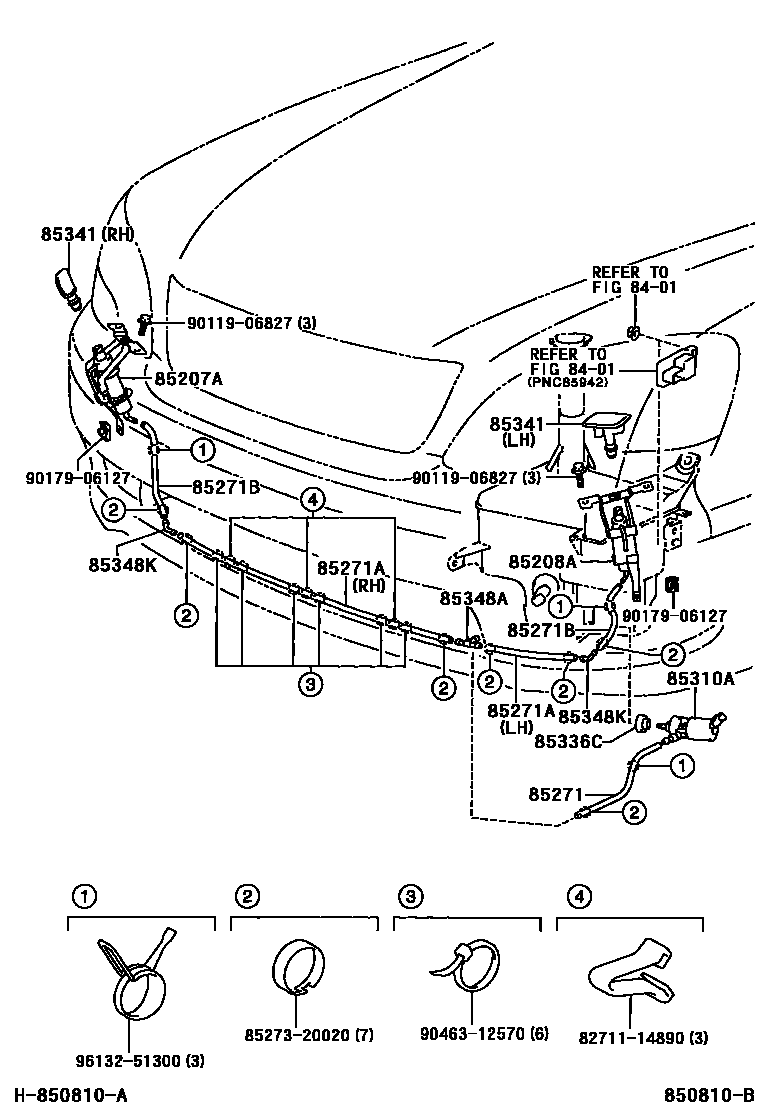

HEADLAMP CLEANER
8401SWITCH & RELAY & COMPUTER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85271AHOSE, HEADLAMP CLEANER, NO.2
L=135
L=1600,RH
L=190,LH
85271BHOSE, HEADLAMP CLEANER, NO.3
L=135
85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85336CPACKING, HEADLAMP CLEANER MOTOR
85341NOZZLE, HEADLAMP CLEANER WASHER
WHITE PEARL CS.,062,RH
IVORY PEARL CS.,066,RH
SILVER ME.,1C0,RH
BLACK,202,RH
BORDEAUX MC.,3P2,RH
ROSE M.M.,3P4,RH
BEIGE ME.,4P7,RH
GREEN M.M.,6S5,RH
DARK GREEN M.M.,6S6,RH
DARK BLUE MC.,8P8,RH
LT. BLUE M.M.,8P7,RH
WHITE PEARL CS.,062,RH
SILKY WHITE PEARL CS,072,RH
DK.GRAY MC.,1E0,RH
PREMIUM SILVER,1F2,RH
BLACK,202,RH
BORDEAUX MC.,3P2,RH
BEIGE ME.,4P7,RH
GRAYISH BROWN M.M.,4S1,RH
OLIVE M.M.,6T7,RH
DARK BLUE MC.,8P8,RH
WHITE PEARL CS.,062,LH
IVORY PEARL CS.,066,LH
SILVER ME.,1C0,LH
BLACK,202,LH
BORDEAUX MC.,3P2,LH
ROSE M.M.,3P4,LH
BEIGE ME.,4P7,LH
GREEN M.M.,6S5,LH
DARK GREEN M.M.,6S6,LH
DARK BLUE MC.,8P8,LH
LT. BLUE M.M.,8P7,LH
WHITE PEARL CS.,062,LH
SILKY WHITE PEARL CS,072,LH
DK.GRAY MC.,1E0,LH
PREMIUM SILVER,1F2,LH
BLACK,202,LH
BORDEAUX MC.,3P2,LH
BEIGE ME.,4P7,LH
GRAYISH BROWN M.M.,4S1,LH
OLIVE M.M.,6T7,LH
DARK BLUE MC.,8P8,LH
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
NO.1
NO.2
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
8271114890WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14890
8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH
main85273-20020
9011906827
main90119-06827
9017906127
main90179-06127
9046312570
main90463-12570
9613251300
main96132-51300
17 parts on this diagram · 2 diagrams in section
