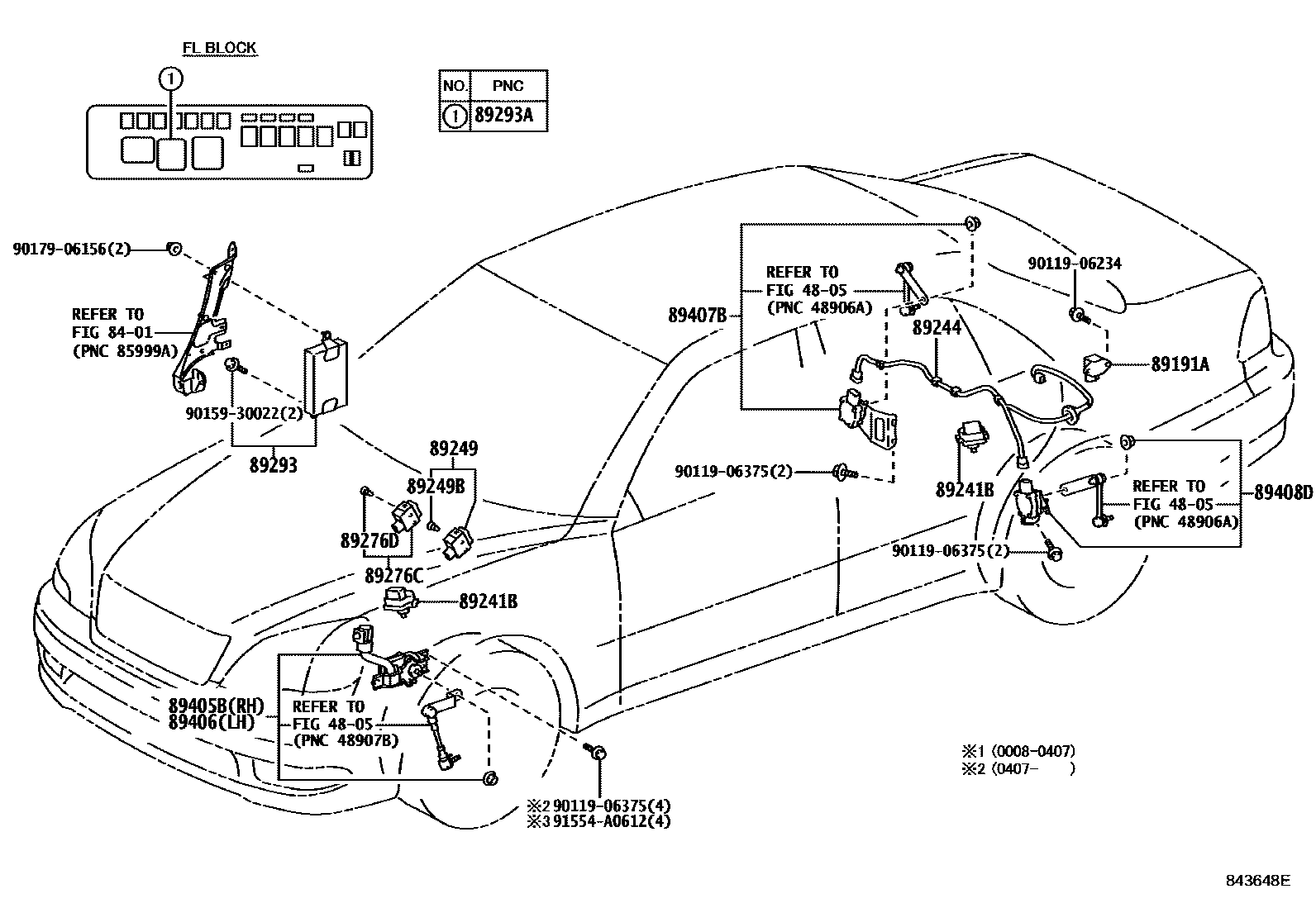

ELECTRONIC MODULATED SUSPENSION

4805HEIGHT CONTROL (AUTO-LEVELER)

→ Go to FIG 48-05

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89191ASENSOR, ACCELERATION

main89191-30020iUCF30200008-200307

main89191-50020iUCF30200307

89241BACTUATOR, ABSORBER CONTROL

main89241-30040×4iUCF30200008-200307

89244WIRE, ABSORBER CONTROL, REAR

main89244-50010iUCF30200008-200307

main89244-50020iUCF30200307

89249SWITCH, ABSORBER CONTROL

main89249-50020iUCF30200008-200307

89249BBULB, ABSORBER CONTROL SWITCH

main90010-01059iUCF30200008-200307

14V0.84W,W/GREEN CAP

89276CSWITCH, HEIGHT CONTROL

main89276-50020iUCF30200008-200307

89276DBULB, (FOR HEIGHT CONTROL SWITCH)

main90010-01059iUCF30200008-200307

14V0.84W,W/GREEN CAP

89293COMPUTER, SUSPENSION CONTROL

main89293-50110iUCF30200008-200107

main89293-50111iUCF30200107-200307

main89293-50130iUCF30200307

89293ARELAY, SUSPENSION CONTROL

main90987-02006iUCF30200008-200307

89405BSENSOR SUB-ASSY, HEIGHT CONTROL, FRONT RH

main89405-50060iUCF30200008-200307

89406SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT LH

main89406-50060iUCF30200008-200307

main89406-50080iUCF30200307

89407BSENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH

main89407-50060iUCF30200008-200307

89408DSENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH

main89408-50060iUCF30200008-200307

9011906234

main90119-06234

9011906375

main90119-06375

9015930022

main90159-30022

9017906156

main90179-06156

91554A0612

main91554-A0612

20 parts on this diagram · 1 diagram in section
