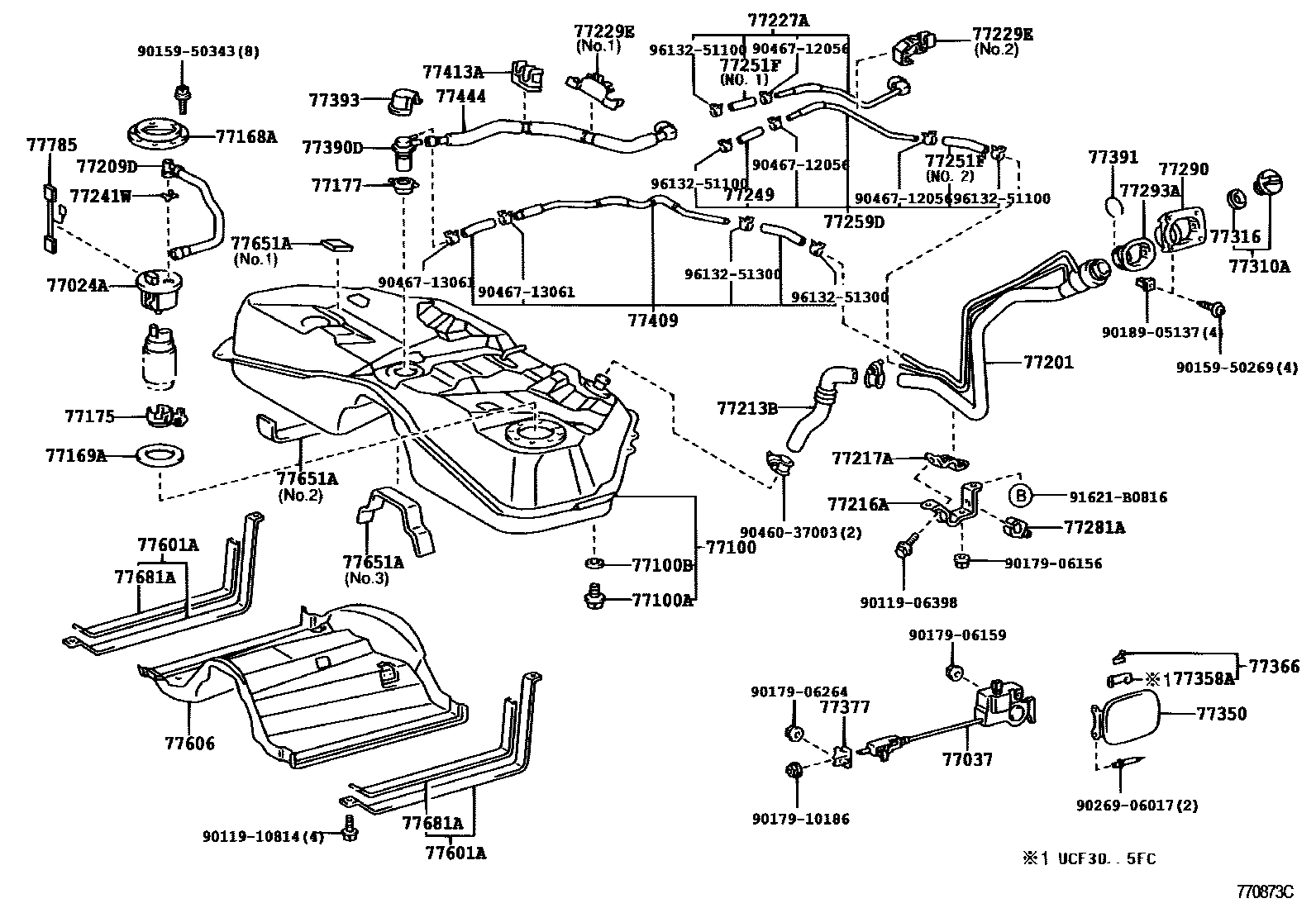

FUEL TANK & TUBE
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77209DTUBE SUB-ASSY, FUEL TANK MAIN
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77227ATUBE, FUEL TANK EVAPORATION VENT
77229ECLAMP, BREATHER TUBE
NO.1:REFER ILLUST.
NO.1:REFER TO ILLUSTRATION
NO.2:REFER TO ILLUSTRATION
NO.2:REFER ILLUST.
77241WCLIP, TUBE JOINT
77249HOSE, FUEL EMISSION
77259DHOSE, FUEL, NO.1
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77293ASHIELD, FUEL TANK FILLER PIPE, NO.3
77350LID ASSY, FUEL FILLER OPENING
77358ASTOPPER, FUEL FILLER OPENING LID
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77390DVALVE ASSY, FUEL TANK OVER FILL CHECK
77391RING, FUEL INLET BOX
77393PROTECTOR, CHECK VALVE
77409HOSE SUB-ASSY, FUEL, NO.3
77413ASUPPORT, FUEL TUBE GROMMET, NO.3
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77651ACUSHION, FUEL TANK, NO.1
NO.1:REFER ILLUST.
NO.1:REFER TO ILLUSTRATION
NO.2:REFER ILLUST.
NO.2:REFER TO ILLUSTRATION
NO.3:REFER TO ILLUSTRATION
NO.3:REFER ILLUST.
77681ASEAT, FUEL TANK BAND
77785HARNESS, FUEL PUMP
9011906398
main90119-06398
9011910814
main90119-10814
9015950269
main90159-50269
9015950343
main90159-50343
9017906156
main90179-06156
9017906159
main90179-06159
9017906264
main90179-06264
9017910186
main90179-10186
9018905137
main90189-05137
9026906017
main90269-06017
9046037003
main90460-37003
9046712056
main90467-12056
9046713061
main90467-13061
91621B0816
main91621-B0816
9613251100
main96132-51100
9613251300
main96132-51300
56 parts on this diagram · 4 diagrams in section
