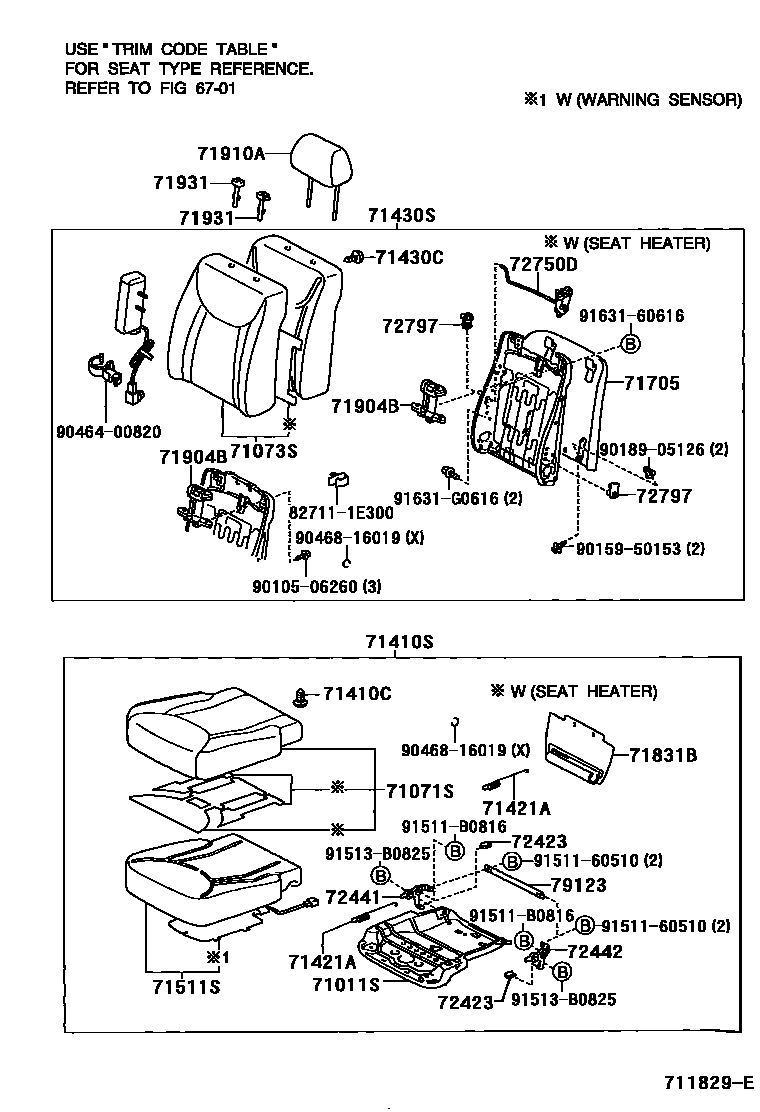

FRONT SEAT & SEAT TRACK
71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
SEAT = TYPE C-*104,ECRU,TRIM03
SEAT = TYPE C-*104,IVORY,TRIM04
SEAT = TYPE C-*104,CHARCOAL,TRIM1#
SEAT = TYPE C-*104,BLACK,TRIM2#
SEAT = TYPE C-*104 & W(SEAT HEATER),ECRU,TRIM03
SEAT = TYPE C-*104 & W(SEAT HEATER),IVORY,TRIM04
SEAT = TYPE C-*104 & W(SEAT HEATER),BLACK,TRIM2#
SEAT = TYPE C-*104 & W(SEAT HEATER),CHARCOAL,TRIM1#
SEAT = TYPE A-*104 & W(SEAT HEATER),NEW GRAY,TRIM1#
SEAT = TYPE B OR TYPE C-*104 & W(CLIMATE CONTROL SEAT),ECRU,TRIM03,05
SEAT = TYPE C-*104 & W(CLIMATE CONTROL SEAT),IVORY,TRIM04
SEAT = TYPE C-*104 & W(CLIMATE CONTROL SEAT),BLACK,TRIM2#
SEAT = TYPE A-*104,SADDLE TAN,TRIM2#
SEAT = TYPE A-*104,SADDLE TAN,TRIM2#
SEAT = TYPE C-*104 & W(CLIMATE CONTROL SEAT),CHARCOAL,TRIM1#
SEAT = TYPE A-*104,BLACK,TRIM20,29; SEAT = TYPE A-*104,BLACK,TRIM29
SEAT = TYPE A-*104,BORDEAUX,TRIM27
SEAT = TYPE B-*104 & W(CLIMATE CONTROL SEAT),BLACK,TRIM2#
SEAT = TYPE A-*104,BLACK,TRIM2#
SEAT = TYPE A-*104,NEW IVORY,TRIM01,07
SEAT = TYPE A-*104,ECRU,TRIM00
SEAT = TYPE A-*104,NEW GRAY,TRIM1#
SEAT = TYPE A-*104,BLACK,TRIM2#
SEAT = TYPE A-*104 & W(SEAT HEATER),NEW IVORY,TRIM01,07
SEAT = TYPE A-*104 & W(SEAT HEATER),ECRU,TRIM00
SEAT = TYPE A-*104 & W(SEAT HEATER),BLACK,TRIM2#
SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),NEW IVORY,TRIM01,07
SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),ECRU,TRIM00,02,08
SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),NEW GRAY,TRIM1#
SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),BLACK,TRIM2#
SEAT = TYPE A-*104 & W(SEAT HEATER),SADDLE TAN,TRIM2#
SEAT = TYPE A-*104 & W(SEAT HEATER),SADDLE TAN,TRIM2#
SEAT = TYPE B-*104 & W(SEAT HEATER),BLACK,TRIM2#
SEAT = TYPE B-*104 & W(SEAT HEATER),BLACK,TRIM2#
SEAT = TYPE A-*104 & W(SEAT HEATER),ECRU,TRIM00,08
SEAT = TYPE A-*104 & W(SEAT HEATER),IVORY,TRIM07
SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),BLACK,TRIM2#
SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),GRAY,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
SEAT = TYPE C-*104,ECRU,TRIM03
SEAT = TYPE C-*104,IVORY,TRIM04
SEAT = TYPE C-*104,CHARCOAL,TRIM10
SEAT = TYPE C-*104,BLACK,TRIM24
SEAT = TYPE C-*104 & W(SEAT HEATER),ECRU,TRIM03
SEAT = TYPE C-*104 & W(SEAT HEATER),IVORY,TRIM04
SEAT = TYPE C-*104 & W(SEAT HEATER),CHARCOAL,TRIM1#
SEAT = TYPE C-*104 & W(SEAT HEATER),BLACK,TRIM2#
SEAT = TYPE C-*104 & W(SEAT HEATER),ECRU,TRIM03
SEAT = TYPE C-*104 & W(SEAT HEATER),IVORY,TRIM04
SEAT = TYPE C-*104 & W(SEAT HEATER),CHARCOAL,TRIM1#
SEAT = TYPE C-*104 & W(SEAT HEATER),BLACK,TRIM2#
SEAT = TYPE A-*104,BLACK,TRIM20,29; SEAT = TYPE A-*104,BLACK,TRIM29
SEAT = TYPE A-*104,BORDEAUX,TRIM27
SEAT = TYPE B OR TYPE C-*104 & W(CLIMATE CONTROL SEAT),ECRU,TRIM03,05
SEAT = TYPE C-*104 & W(CLIMATE CONTROL SEAT),IVORY,TRIM04
SEAT = TYPE C-*104 & W(CLIMATE CONTROL SEAT),CHARCOAL,TRIM1#
SEAT = TYPE C-*104 & W(CLIMATE CONTROL SEAT),BLACK,TRIM2#
SEAT = TYPE A-*104,BLACK,TRIM2#
SEAT = TYPE A-*104,NEW IVORY,TRIM07
SEAT = TYPE A-*104,ECRU,TRIM00
SEAT = TYPE A-*104,NEW GRAY,TRIM1#
SEAT = TYPE A-*104,BLACK,TRIM2#
SEAT = TYPE A-*104 & W(SEAT HEATER),NEW IVORY,TRIM07
SEAT = TYPE A-*104 & W(SEAT HEATER),ECRU,TRIM00
SEAT = TYPE B-*104 & W(SEAT HEATER),NEW GRAY,TRIM1#
SEAT = TYPE A-*104 & W(SEAT HEATER),BLACK,TRIM2#
SEAT = TYPE B-*104 & W(CLIMATE CONTROL SEAT),BLACK,TRIM2#
SEAT = TYPE B-*104 & W(CLIMATE CONTROL SEAT),BLACK,TRIM2#
SEAT = TYPE A-*104,SADDLE TAN,TRIM2#
SEAT = TYPE A-*104,SADDLE TAN,TRIM2#
SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),NEW IVORY,TRIM07
SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),ECRU,TRIM00,08
SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),NEW GRAY,TRIM1#
SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),BLACK,TRIM2#
SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),ECRU,TRIM00,08
SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),IVORY,TRIM07
SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),GRAY,TRIM1#
SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),BLACK,TRIM2#
SEAT = TYPE B-*104 & W(SEAT HEATER),BLACK,TRIM2#
SEAT = TYPE B-*104 & W(SEAT HEATER),BLACK,TRIM2#
SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),SADDLE TAN,TRIM2#
SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),SADDLE TAN,TRIM2#
71410CCLIP(FOR FRONT SEAT CUSHION)
IVORY,TRIM00,07,08,1#,21,24,25,NO.1
BLACK,TRIM03,04,05,1#,20,27&062 ,066 ,1C0 ,202 ,3P2 ,3P4 ,4P7 ,6S5 ,6S6 ,8P8,NO.2
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
***,SEAT = TYPE C-*104,ECRU,TRIM03
***,SEAT = TYPE C-*104,IVORY,TRIM04
***,SEAT = TYPE C-*104,MD.CHARCOL,TRIM1#
***,SEAT = TYPE C-*104,BLACK,TRIM2#
***,SEAT = TYPE B-*104,ECRU,TRIM03; ***,SEAT = TYPE C-*104 & W(SEAT HEATER),ECRU,TRIM03
***,SEAT = TYPE B-*104,IVORY,TRIM04; ***,SEAT = TYPE C-*104 & W(SEAT HEATER),IVORY,TRIM04
***,SEAT = TYPE B-*104,MD.CHARCOL,TRIM1#; ***,SEAT = TYPE C-*104 & W(SEAT HEATER),MD.CHARCOL,TRIM1#
***,SEAT = TYPE B-*104,BLACK,TRIM2#; ***,SEAT = TYPE C-*104 & W(SEAT HEATER),BLACK,TRIM2#
***,SEAT = TYPE B OR TYPE C-*104 & W(CLIMATE CONTROL SEAT),ECRU,TRIM03,05
***,SEAT = TYPE B OR TYPE C-*104 & W(CLIMATE CONTROL SEAT),IVORY,TRIM04
***,SEAT = TYPE B OR TYPE C-*104 & W(CLIMATE CONTROL SEAT),MD.CHARCOL,TRIM1#
***,SEAT = TYPE B OR TYPE C-*104 & W(CLIMATE CONTROL SEAT),BLACK,TRIM2#
***,SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),BLACK/BLACK,TRIM20,29; ***,SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),BLACK/BLACK,TRIM29
***,SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),BLACK/BORDEAUX,TRIM27
SEAT = TYPE A-*104,BLACK,TRIM2#
71421ASPRING, FRONT SEAT CUSHION
71430CCLIP
IVORY,TRIM00,07,08,1#,21,24,25
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
SEAT = TYPE A-*104 & W(SEAT HEATER),ECRU,TRIM00
SEAT = TYPE A-*104 & W(SEAT HEATER),IVORY,TRIM07
SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1#
SEAT = TYPE A-*104 & W(SEAT HEATER),BLACK,TRIM2#
SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),ECRU,TRIM00,02,08
SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),IVORY,TRIM01,07
SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),GRAY,TRIM1#
SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),BLACK,TRIM2#
SEAT = TYPE B-*104 & W(CLIMATE CONTROL SEAT),BLACK,BLACK,TRIM2#
SEAT = TYPE B-*104 & W(CLIMATE CONTROL SEAT),BLACK,BLACK,TRIM2#
SEAT = TYPE A-*104,ECRU,TRIM00
SEAT = TYPE A-*104,IVORY,TRIM01,07
SEAT = TYPE A-*104,GRAY,TRIM1#
SEAT = TYPE A-*104,BLACK,TRIM20,24
SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),ECRU,TRIM00,08
SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),IVORY,TRIM07
SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),GRAY,TRIM1#
SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),BLACK,TRIM2#
SEAT = TYPE B-*104,BLACK,BLACK,TRIM2#
SEAT = TYPE B-*104,BLACK,BLACK,TRIM2#
SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),BLACK,SADDLE TAN,TRIM2#
SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),BLACK,SADDLE TAN,TRIM2#
SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),BLACK,SADDLE TAN,TRIM2#
SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),BLACK,SADDLE TAN,TRIM2#
SEAT = TYPE C-*104,ECRU,TRIM03
SEAT = TYPE C-*104,IVORY,TRIM04
SEAT = TYPE C-*104,MD. CHARCOL,TRIM1#
SEAT = TYPE C-*104,BLACK,TRIM2#
W(CLIMATE CONTROL SEAT) & SEAT = TYPE A-*104,BLACK/BORDEAUX,TRIM27
W(CLIMATE CONTROL SEAT) & SEAT = TYPE A-*104,BLACK/BLACK,TRIM20,29; W(CLIMATE CONTROL SEAT) & SEAT = TYPE A-*104,BLACK/BLACK,TRIM29
SEAT = TYPE B-*104,ECRU,TRIM03; SEAT = TYPE C-*104 & W(SEAT HEATER),ECRU,TRIM03
SEAT = TYPE C-*104 & W(SEAT HEATER),IVORY,TRIM04
SEAT = TYPE C-*104 & W(SEAT HEATER),MD. CHARCOL,TRIM1#
SEAT = TYPE C-*104 & W(SEAT HEATER),BLACK,TRIM2#
W(SEAT HEATER) & SEAT = TYPE B-*104,ECRU,TRIM05
SEAT = TYPE C-*104 & W(SEAT HEATER),IVORY,TRIM04; W(SEAT HEATER) & SEAT = TYPE C-*104,IVORY,TRIM0#
SEAT = TYPE C-*104 & W(SEAT HEATER),MD.CHARCOAL,TRIM1#
SEAT = TYPE C-*104 & W(SEAT HEATER),BLACK,TRIM2#
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B OR C-*104,ECRU,TRIM03,05
SEAT = TYPE C-*104 & W(CLIMATE CONTROL SEAT),IVORY,TRIM04
SEAT = TYPE C-*104 & W(CLIMATE CONTROL SEAT),MD. CHARCOL,TRIM1#
SEAT = TYPE C-*104 & W(CLIMATE CONTROL SEAT),BLACK,TRIM2#
SEAT = TYPE A-*104 & W(SEAT HEATER),BLACK,TRIM2#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71705BOARD SUB-ASSY, FRONT SEATBACK, RH
IVORY,TRIM04
ECRU,TRIM03,05
NEW IVORY,TRIM07
MD.CHARCOAL,TRIM1#
NEW GRAY,TRIM1#
BLACK,TRIM21,24
BORDEAUX,TRIM27
SADDLE TAN,TRIM25
71831BCOVER, FRONT SEAT HINGE, RH
ECRU,TRIM03
IVORY,TRIM04
CHARCOAL,TRIM11
BLACK,TRIM2#
NEW IVORY,TRIM07
ECRU,TRIM00,08
NEW GRAY,TRIM1#
BLACK,TRIM21,24,25
71904BADJUSTER SUB-ASSY, FRONT SEAT HEADREST
LH
RH
71910AHEADREST ASSY, FRONT SEAT
ECRU,TRIM03,05
IVORY,TRIM04
BLACK,TRIM2#
BLACK,SADDLE TAN,TRIM2#
BLACK,TRIM21
BLACK/BORDEAUX,TRIM27
MD. CHARCOL,TRIM1#
ECRU,TRIM00,08
IVORY,TRIM07
GRAY,TRIM1#
BLACK,TRIM2#; BLACK,TRIM20,24
71931SUPPORT, FRONT SEAT HEADREST
W/O(LOCK),IVORY,TRIM04
W/O(LOCK),ECRU,TRIM03,05
W/O(LOCK),NEW IVORY,TRIM07
W/O(LOCK),MD.CHARCOAL,TRIM1#
W/O(LOCK),NEW GRAY,TRIM1#
W/O(LOCK),BLACK,TRIM20,27,29
72423HOOK, VERTICAL ADJUSTER SPRING
72441LINK, VERTICAL TRAVEL
72442LINK, FRONT SEAT TRAVEL, NO.2
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
72797SPACER, LUMBAR SUPPORT
79123PLATE, NO.1 SEAT CUSHION
827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E300
9010506260
main90105-06260
9015950153
main90159-50153
9018905126
main90189-05126
9046400820
main90464-00820
9046816019
main90468-16019
9151160510
main91511-60510
91511B0816
main91511-B0816
91513B0825
main91513-B0825
9163160616
main91631-60616
91631G0616
main91631-G0616
31 parts on this diagram · 7 diagrams in section
