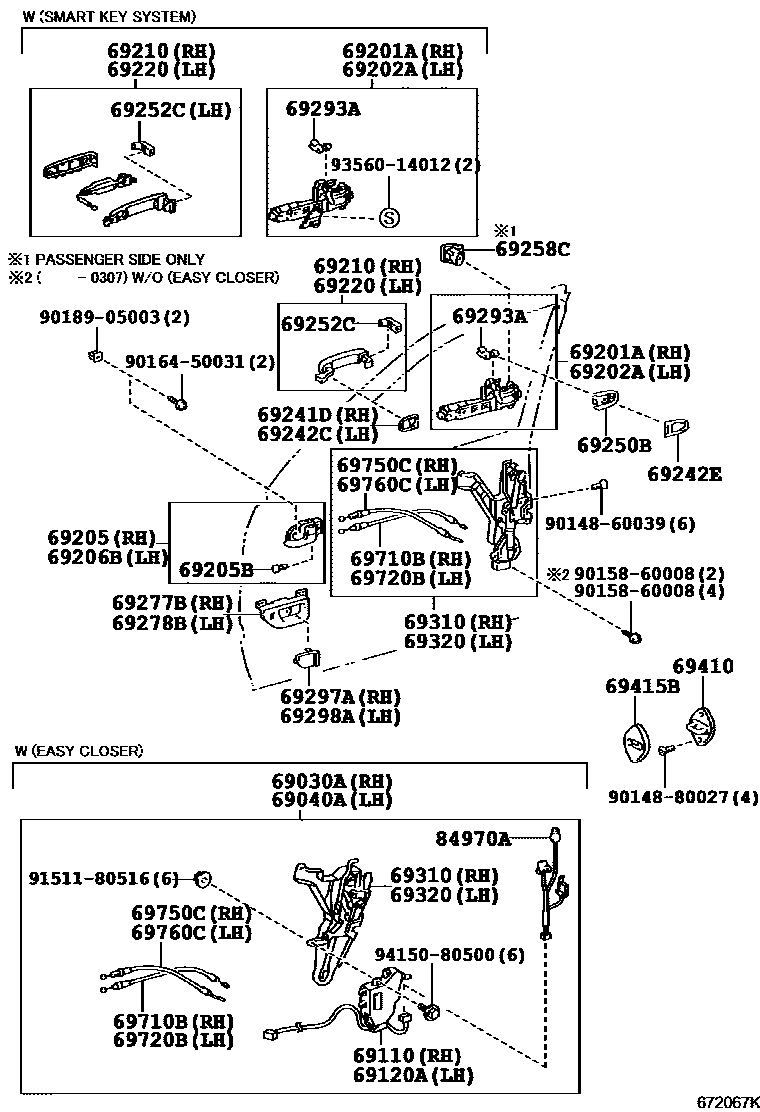

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
W(SMART KEY SYSTEM)
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
W(SMART KEY SYSTEM)
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
W(SMART KEY SYSTEM),WHITE PEARL CS.,062
W(SMART KEY SYSTEM),SILKY WHITE PEARL CS,072
W(SMART KEY SYSTEM),DK.GRAY MC.,1E0
W(SMART KEY SYSTEM),PREMIUM SILVER,1F2
W(SMART KEY SYSTEM),BLACK,202
W(SMART KEY SYSTEM),BORDEAUX MC.,3P2
W(SMART KEY SYSTEM),BEIGE ME.,4P7
W(SMART KEY SYSTEM),GRAYISH BROWN M.M.,4S1
W(SMART KEY SYSTEM),OLIVE M.M.,6T7
W(SMART KEY SYSTEM),DARK BLUE MC.,8P8
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
W(SMART KEY SYSTEM),WHITE PEARL CS.,062
W(SMART KEY SYSTEM),SILKY WHITE PEARL CS,072
W(SMART KEY SYSTEM),DK.GRAY MC.,1E0
W(SMART KEY SYSTEM),PREMIUM SILVER,1F2
W(SMART KEY SYSTEM),BLACK,202
W(SMART KEY SYSTEM),BORDEAUX MC.,3P2
W(SMART KEY SYSTEM),BEIGE ME.,4P7
W(SMART KEY SYSTEM),GRAYISH BROWN M.M.,4S1
W(SMART KEY SYSTEM),OLIVE M.M.,6T7
W(SMART KEY SYSTEM),DARK BLUE MC.,8P8
69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH
69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69250BCOVER ASSY, DOOR OUTSIDE HANDLE
69252CGUIDE, DOOR OUTSIDE HANDLE
69258CRETAINER, DOOR OUTSIDE HANDLE, RH
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
IVORY,TRIM04
ECRU,TRIM00,08
ECRU,TRIM03,05
NEW IVORY,TRIM07
MD.CHARCOAL,TRIM1#
NEW GRAY,TRIM1#
BLACK,TRIM20,27,29
BLACK,TRIM21,24,25
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
69297ABEZEL, DOOR INSIDE HANDLE, NO.2 RH
IVORY,TRIM04
ECRU,TRIM03,05
ECRU,TRIM00,08
NEW IVORY,TRIM07
MD.CHARCOAL,TRIM1#
NEW GRAY,TRIM1#
BLACK,TRIM21,24,25
BLACK,TRIM20,27,29
69298ABEZEL, DOOR INSIDE HANDLE, NO.2 LH
IVORY,TRIM04
ECRU,TRIM03,05
ECRU,TRIM00,08
NEW IVORY,TRIM07
MD.CHARCOAL,TRIM1#
NEW GRAY,TRIM1#
BLACK,TRIM20,27,29
BLACK,TRIM21,24,25
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
W(EASY CLOSER)
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
W(EASY CLOSER)
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
W(EASY CLOSER)
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
W(EASY CLOSER)
84970ASWITCH ASSY, COMBINATION
RH
LH
9014860039
main90148-60039
9014880027
main90148-80027
9015860008
main90158-60008
9016450031
main90164-50031
9018905003
main90189-05003
9151180516
main91511-80516
9356014012
main93560-14012
9415080500
main94150-80500
39 parts on this diagram · 1 diagram in section
