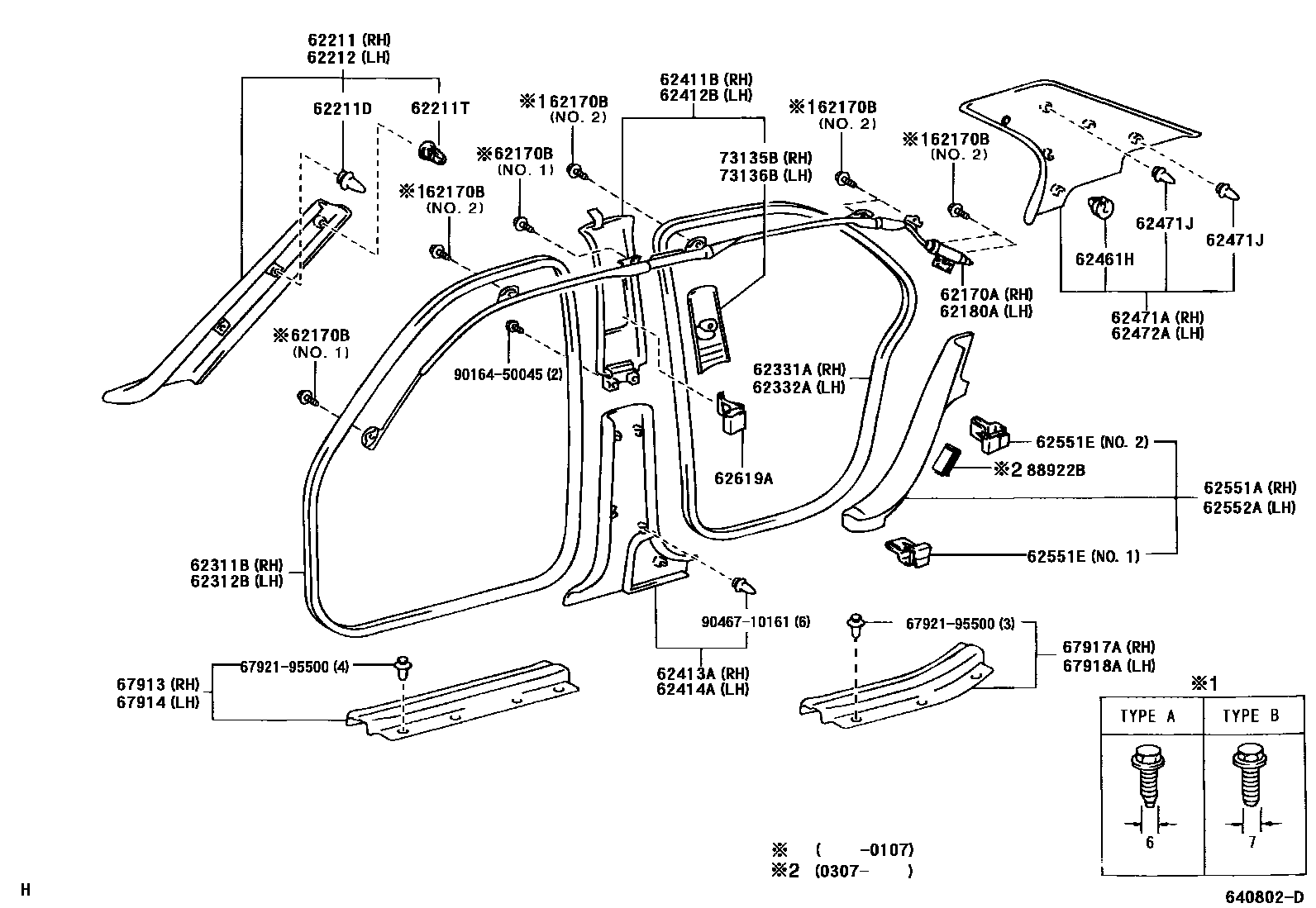

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
NO.1
TYPE A:REFER TO ILLUSTRATION,NO.2
TYPE B:REFER TO ILLUSTRATION,NO.2
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62211GARNISH, FRONT PILLAR, RH
IVORY,TRIM04
ECRU,TRIM03
MEDIUM CHARCOAL,TRIM11,20
IVORY,TRIM04
ECRU,TRIM00
ECRU,TRIM03
NEW IVORY,TRIM01,07
MEDIUM CHARCOAL,TRIM11,20
MARK = 62211-50011,NEW GRAY,TRIM1#,20,21,24
ECRU,TRIM05
CHARCOAL,TRIM27,29
ECRU,TRIM05
ECRU,TRIM02,08
CHARCOAL,TRIM27,29
MARK = 62211-50021,NEW GRAY,TRIM21,22,25
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
62211TCLIP(FOR FRONT PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
IVORY,TRIM04
ECRU,TRIM03
MEDIUM CHARCOAL,TRIM11,20
IVORY,TRIM04
ECRU,TRIM00
ECRU,TRIM03
NEW IVORY,TRIM01,07
MEDIUM CHARCOAL,TRIM11,20
MARK = 62212-50011,NEW GRAY,TRIM1#,20,21,24
ECRU,TRIM05
CHARCOAL,TRIM27,29
ECRU,TRIM05
ECRU,TRIM02,08
CHARCOAL,TRIM27,29
MARK = 62212-50021,NEW GRAY,TRIM21,22,25
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
DARKCHARCOAL,TRIM11
BLACK,TRIM20,27,29
CLOVEBROWN,TRIM03,05
SANDALWOOD,TRIM04
MD.GRAY,TRIM1#
BLACK,TRIM21,24,25
CLOVEBROWN,TRIM00,08
SANDALWOOD,TRIM07
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
DARKCHARCOAL,TRIM11
BLACK,TRIM20,27,29
CLOVEBROWN,TRIM03,05
SANDALWOOD,TRIM04
MD.GRAY,TRIM1#
BLACK,TRIM21,24,25
CLOVEBROWN,TRIM00,08
SANDALWOOD,TRIM07
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
DARKCHARCOAL,TRIM11
BLACK,TRIM20,27,29
CLOVEBROWN,TRIM03,05
SANDALWOOD,TRIM04
MD.GRAY,TRIM1#
BLACK,TRIM21,24,25
CLOVEBROWN,TRIM00,08
SANDALWOOD,TRIM07
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
DARKCHARCOAL,TRIM11
BLACK,TRIM20,27,29
CLOVEBROWN,TRIM03,05
SANDALWOOD,TRIM04
MD.GRAY,TRIM1#
BLACK,TRIM21,24,25
CLOVEBROWN,TRIM00,08
SANDALWOOD,TRIM07
62411BGARNISH, CENTER PILLAR, UPPER RH
IVORY,TRIM04
ECRU,TRIM03
MEDIUM CHARCOAL,TRIM11,20
IVORY,TRIM04
ECRU,TRIM03
MEDIUM CHARCOAL,TRIM11,20
ECRU,TRIM05
CHARCOAL,TRIM27,29
ECRU,TRIM05
CHARCOAL,TRIM27,29
IVORY,TRIM04
PILLAR GARNISH = TYPE A-*104,ECRU,TRIM00
ECRU,TRIM03
PILLAR GARNISH = TYPE A-*104,NEW IVORY,TRIM01,07
MEDIUM CHARCOAL,TRIM11,20
PILLAR GARNISH = TYPE A-*104,NEW GRAY,TRIM1#,20,21,24
ECRU,TRIM05
PILLAR GARNISH = TYPE B-*104,ECRU,TRIM02,08
CHARCOAL,TRIM27,29
PILLAR GARNISH = TYPE B-*104,NEW GRAY,TRIM21,22,25
62412BGARNISH, CENTER PILLAR, UPPER LH
IVORY,TRIM04
ECRU,TRIM03
MEDIUM CHARCOAL,TRIM11,20
IVORY,TRIM04
ECRU,TRIM03
MEDIUM CHARCOAL,TRIM11,20
ECRU,TRIM05
CHARCOAL,TRIM27,29
ECRU,TRIM05
CHARCOAL,TRIM27,29
IVORY,TRIM04
PILLAR GARNISH = TYPE A-*104,ECRU,TRIM00
ECRU,TRIM03
PILLAR GARNISH = TYPE A-*104,NEW IVORY,TRIM01,07
MEDIUM CHARCOAL,TRIM11,20
PILLAR GARNISH = TYPE A-*104,NEW GRAY,TRIM1#,20,21,24
ECRU,TRIM05
PILLAR GARNISH = TYPE B-*104,ECRU,TRIM02,08
CHARCOAL,TRIM27,29
PILLAR GARNISH = TYPE B-*104,NEW GRAY,TRIM21,22,25
62413AGARNISH, CENTER PILLAR, LOWER RH
IVORY,TRIM04
ECRU,TRIM03,05
MD.CHARCOAL,TRIM11
BLACK,TRIM20,27,29
IVORY,TRIM04
ECRU,TRIM03,05
MD.CHARCOAL,TRIM11
BLACK,TRIM20,27,29
IVORY,TRIM04
ECRU,TRIM00,08
ECRU,TRIM03,05
NEW IVORY,TRIM01,07
MD.CHARCOAL,TRIM1#
NEW GRAY,TRIM1#
BLACK,TRIM20,27,29
BLACK,TRIM20,21,24,25
62414AGARNISH, CENTER PILLAR, LOWER LH
IVORY,TRIM04
ECRU,TRIM03,05
MD.CHARCOAL,TRIM11
BLACK,TRIM20,27,29
IVORY,TRIM04
ECRU,TRIM03,05
MD.CHARCOAL,TRIM11
BLACK,TRIM20,27,29
IVORY,TRIM04
ECRU,TRIM03,05
MD.CHARCOAL,TRIM1#
BLACK,TRIM20,27,29
ECRU,TRIM00,08
NEW IVORY,TRIM07
NEW GRAY,TRIM1#
BLACK,TRIM21,24,25
62461HCLIP (FOR ROOF SIDE INNER GARNISH)
62471AGARNISH, ROOF SIDE, INNER RH
IVORY,TRIM04
ECRU,TRIM03
ECRU,TRIM00
NEW IVORY,TRIM01,07
MEDIUM CHARCOAL,TRIM11,20
MARK = 62471-50010,NEW GRAY,TRIM1#,20,21,24
ECRU,TRIM05
ECRU,TRIM02,08
CHARCOAL,TRIM27,29
MARK = 62471-50020,NEW GRAY,TRIM21,22,25
62471JCLIP (FOR ROOF SIDE GARNISH)
BLUE
62472AGARNISH, ROOF SIDE, INNER LH
IVORY,TRIM04
ECRU,TRIM03
ECRU,TRIM00
NEW IVORY,TRIM01,07
MEDIUM CHARCOAL,TRIM11,20
MARK = 62472-50010,NEW GRAY,TRIM1#,20,21,24
ECRU,TRIM05
ECRU,TRIM02,08
CHARCOAL,TRIM27,29
MARK = 62472-50020,NEW GRAY,TRIM21,22,25
62551ACOVER, REAR SEAT SIDE, RH
IVORY,TRIM04
ECRU,TRIM00,08
ECRU,TRIM03,05
NEW IVORY,TRIM07
MD.CHARCOAL,TRIM11
NEW GRAY,TRIM10
BLACK,TRIM20,27,29
BLACK,TRIM21,24,25
W(REAR AIR CONDITIONER),ECRU,TRIM00,08
W(REAR AIR CONDITIONER),NEW IVORY,TRIM07
W(REAR AIR CONDITIONER),NEW GRAY,TRIM10
W(REAR AIR CONDITIONER),BLACK,TRIM21,24,25
62551ECLIP(FOR REAR SEAT SIDE GARNISH)
NO.1
NO.2
62552ACOVER, REAR SEAT SIDE, LH
IVORY,TRIM04
ECRU,TRIM03,05
ECRU,TRIM00,08
NEW IVORY,TRIM07
MD.CHARCOAL,TRIM11
NEW GRAY,TRIM10
BLACK,TRIM21,24,25
BLACK,TRIM20,27,29
ECRU,TRIM00,08
NEW IVORY,TRIM07
NEW GRAY,TRIM1#
BLACK,TRIM21,24,25
W(REAR AIR CONDITIONER),ECRU,TRIM00,08
W(REAR AIR CONDITIONER),NEW IVORY,TRIM07
W(REAR AIR CONDITIONER),NEW GRAY,TRIM10
W(REAR AIR CONDITIONER),BLACK,TRIM21,24,25
62619APLATE, SIDE TRIM SET
67913PLATE, FRONT DOOR SCUFF, RH
DK.CHARCOAL,TRIM11
MD.GRAY,TRIM10
BLACK,TRIM20,27,29
BLACK,TRIM21,24,25
SANDAL WOOD,TRIM07
SANDAL WOOD,TRIM04
CLOVEBROWN,TRIM03,05
CLOVEBROWN,TRIM00,08
67914PLATE, FRONT DOOR SCUFF, LH
DK.CHARCOAL,TRIM11
MD.GRAY,TRIM10
BLACK,TRIM21,24,25
BLACK,TRIM20,27,29
SANDAL WOOD,TRIM04
SANDAL WOOD,TRIM07
CLOVEBROWN,TRIM03,05
CLOVEBROWN,TRIM00,08
67917APLATE, REAR DOOR SCUFF, RH
DK.CHARCOAL,TRIM11
MD.GRAY,TRIM10
BLACK,TRIM20,27,29
BLACK,TRIM21,24,25
SANDAL WOOD,TRIM07
SANDAL WOOD,TRIM04
CLOVEBROWN,TRIM03,05
CLOVEBROWN,TRIM00,08
67918APLATE, REAR DOOR SCUFF, LH
DK.CHARCOAL,TRIM11
MD.GRAY,TRIM10
BLACK,TRIM21,24,25
BLACK,TRIM20,27,29
SANDAL WOOD,TRIM07
SANDAL WOOD,TRIM04
CLOVEBROWN,TRIM03,05
CLOVEBROWN,TRIM00,08
73135BCOVER, SHOULDER BELT ANCHOR, RH
IVORY,TRIM04
ECRU,TRIM03,05
MD.CHARCOAL,TRIM11,20,27,29
IVORY,TRIM04
ECRU,TRIM00,08
ECRU,TRIM03,05
NEW IVORY,TRIM07
MD.CHARCOAL,TRIM11,20,27,29
NEW GRAY,TRIM10,21,24,25
73136BCOVER, SHOULDER BELT ANCHOR, RH
IVORY,TRIM04
ECRU,TRIM03,05
MD.CHARCOAL,TRIM11,20,27,29
IVORY,TRIM04
ECRU,TRIM03,05
ECRU,TRIM00,08
NEW IVORY,TRIM07
MD.CHARCOAL,TRIM11,20,27,29
NEW GRAY,TRIM10,21,24,25
88922BFILTER AIR
6792195500RETAINER, FRONT DOOR SCUFF PLATE
main67921-95500
9016450045
main90164-50045
9046710161
main90467-10161
33 parts on this diagram · 1 diagram in section
