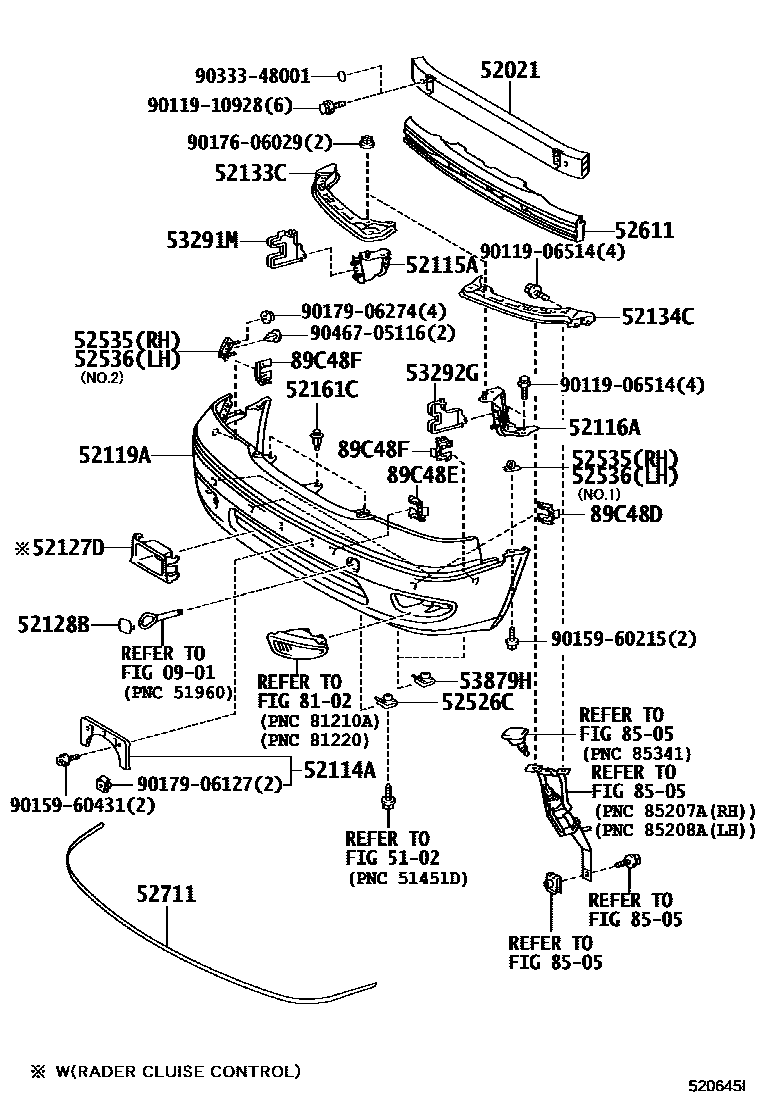

FRONT BUMPER & BUMPER STAY
0901
5102
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
KOREA SPEC & *104,WHITE PEARL CS.,062
KOREA SPEC,SILKY WHITE PEARL CS,072
KOREA SPEC & *106,SILVER ME.,062
KOREA SPEC,DK.GRAY MC.,1E0
KOREA SPEC,PREMIUM SILVER,1F2
KOREA SPEC,BLACK,202
KOREA SPEC,BORDEAUX MC.,3P2
KOREA SPEC,BEIGE ME.,4P7
KOREA SPEC,GRAYISH BROWN M.M.,4S1
KOREA SPEC,OLIVE M.M.,6T7
KOREA SPEC,DARK BLUE MC.,8P8
WHITE PEARL CS.,062
SILKY WHITE PEARL CS,072
DK.GRAY MC.,1E0
PREMIUM SILVER,1F2
BLACK,202
BORDEAUX MC.,3P2
BEIGE ME.,4P7
GRAYISH BROWN M.M.,4S1
OLIVE M.M.,6T7
DARK BLUE MC.,8P8
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
PAINT REQ.
PAINT REQ.,W(RADAR CRUISE CONTROL)
PAINT REQ.
PAINT REQ.,W(CLEARANCE SONAR)
PAINT REQ.,W(RADAR CRUISE CONTROL)
PAINT REQ.,W(CLEARANCE SONAR & RADAR CRUISE CONTROL)
PAINT REQ.,PREMIUM PACKAGE & W(CLEARANCE SONAR & RADAR CRUISE CONTROL)
PAINT REQ.,USA POSSESSION SPEC
PAINT REQ.,USA POSSESSION SPEC & W(RADAR CRUISE CONTROL)
PAINT REQ.,USA POSSESSION SPEC & PREMIUM PACKAGE & W(CLEARANCE SONAR & RADAR CRUISE CONTROL)
PAINT REQ.,CENTRAL AMERICA SPEC
PAINT REQ.,CENTRAL AMERICA SPEC & W(CLEARANCE SONAR)
PAINT REQ.,USA POSSESSION SPEC & W(CLEARANCE SONAR)
PAINT REQ.,USA POSSESSION SPEC & W(CLEARANCE SONAR & RADAR CRUISE CONTROL)
PAINT REQ.,W(CLEARANCE SONAR)
PAINT REQ.,W(CLEARANCE SONAR & RADAR CRUISE CONTROL)
PAINT REQ.,TYPE B:REFER TO ILLUSTRATION
PAINT REQ.,TYPE A:REFER TO ILLUSTRATION
PAINT REQ.,TYPE B:REFER TO ILLUSTRATION, W(HEADLAMP CLEANER)
PAINT REQ.,TYPE B:REFER TO ILLUSTRATION, W(CLEARANCE SONAR & HEADLAMP CLEANER)
PAINT REQ.,TYPE A:REFER TO ILLUSTRATION, W(HEADLAMP CLEANER)
PAINT REQ.,TYPE A:REFER TO ILLUSTRATION, W(CLEARANCE SONAR & HEADLAMP CLEANER)
PAINT REQ.,TYPE B:REFER TO ILLUSTRATION, TAIWAN SPEC
PAINT REQ.,TYPE B:REFER TO ILLUSTRATION, TAIWAN SPEC & W(CLEARANCE SONAR)
PAINT REQ.,TYPE B:REFER TO ILLUSTRATION, KOREA SPEC & W(CLEARANCE SONAR)
PAINT REQ.,TYPE B:REFER TO ILLUSTRATION, W(CLEARANCE SONAR)
PAINT REQ.,TYPE A:REFER TO ILLUSTRATION, W(CLEARANCE SONAR)
52128BCOVER, FRONT BUMPER HOLE, LH
52133CREINFORCEMENT, FRONT BUMPER BAR, RH
52134CREINFORCEMENT, FRONT BUMPER BAR, LH
52161CPIECE, FRONT BUMPER
sub52161-0K040
52526CRETAINER, FRONT BUMPER, LOWER
52535RETAINER, FRONT BUMPER SIDE, RH
NO.1
NO.2
NO.2
NO.1
52536RETAINER, FRONT BUMPER SIDE, LH
NO.1
NO.1
NO.2
NO.2
52711MOULDING, FRONT BUMPER
53291MSEAL, RADIATOR SUPPORT TO FRAME, RH
53292GSEAL, RADIATOR SUPPORT TO FRAME, LH
53879HRETAINER, FRONT FENDER LINER
NO.1
NO.2
NO.2
8102
8505
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
89C48ERETAINER, ULTRASONIC SENSOR, FRONT CENTER
89C48FRETAINER, ULTRASONIC SENSOR, FRONT SIDE
9011906514
main90119-06514
9011910928
main90119-10928
9015960215
main90159-60215
9015960431
main90159-60431
9017606029
main90176-06029
9017906127
main90179-06127
9017906274
main90179-06274
9033348001
main90333-48001
9046705116
main90467-05116
34 parts on this diagram · 2 diagrams in section
