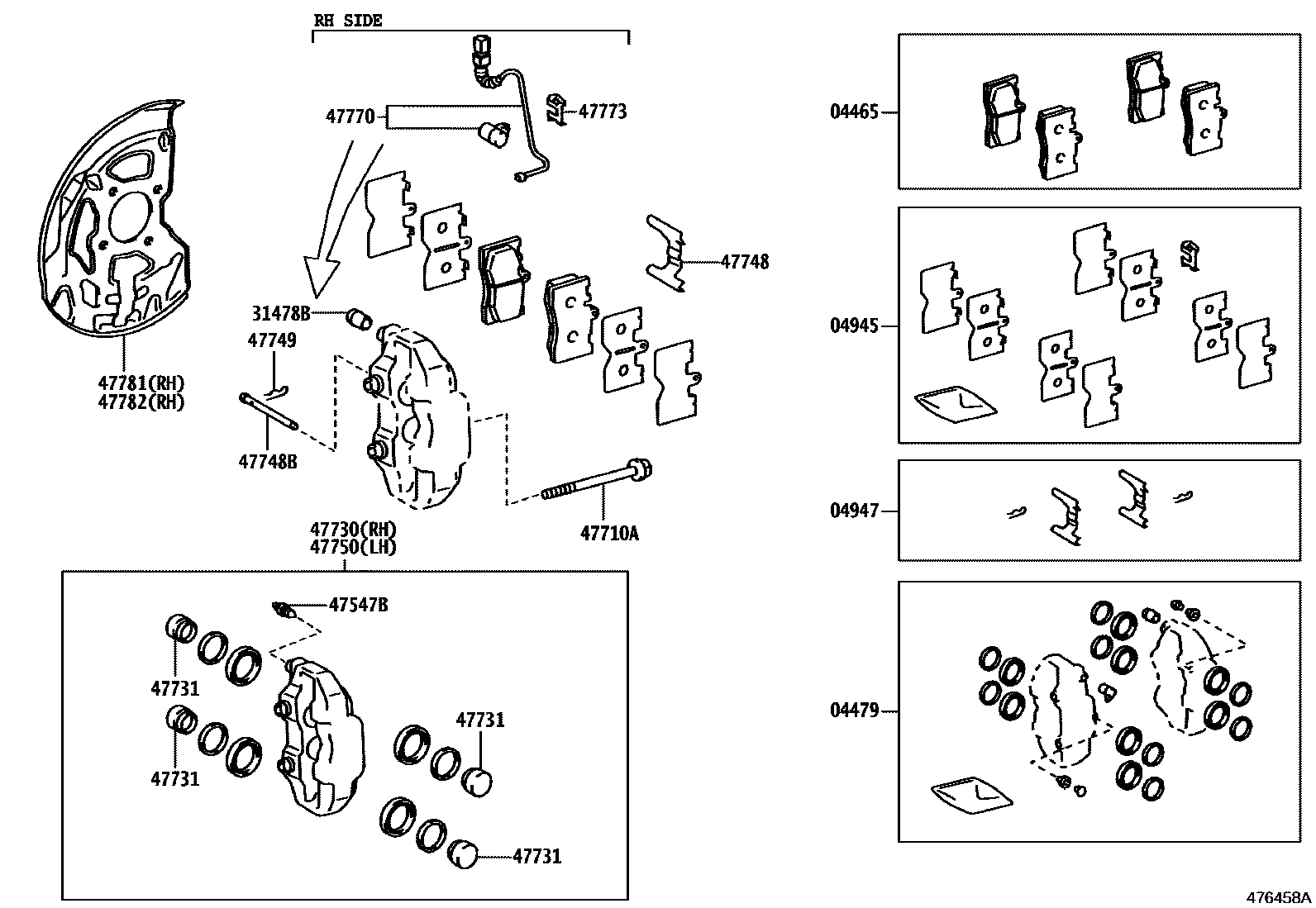

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-50170iUCF30200008-200107

MARK SUMITOMO PS534

sub04465-50171

main04465-50171iUCF30200107-200307

MARK SUMITOMO PS534

sub04465-50240

sub04465-50250

main04465-50240iUCF30200307-200608

MARK SUMITOMO PS558H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-50130iUCF30200008-200307

sub04478-22040

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-50030iUCF30200008-200307

sub04945-50060

main04945-50060iUCF30200307

04947FITTING KIT, DISC BRAKE, FRONT

main04947-50090iUCF30200008-200307

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010iUCF30200008-200307

NO.1

main31478-14010iUCF30200307-200608

main31478-50040iUCF30200008-200307

NO.2

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-50010iUCF30200008-200307

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-14151iUCF30200008-200608

*14-1.5PX110-40

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-50150iUCF30200008-200301

sub47730-50151

main47730-50151iUCF30200301-200307

47731PISTON, FRONT DISC BRAKE

main47731-50070iUCF30200008-200307

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-50020iUCF30200008-200307

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main47735-50020iUCF30200008-200307

47749CLIP, PIN HOLD

main47749-50030iUCF30200008-200307

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-50120iUCF30200008-200301

sub47750-50121

main47750-50121iUCF30200301-200307

47770WIRE ASSY, PAD WEAR INDICATOR, FRONT RH

main47770-50050iUCF30200008-200307

47773RETAINER, PAD WEAR INDICATOR

main47773-50030iUCF30200008-200307

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-50040iUCF30200008-200608

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-50040iUCF30200008-200608

17 parts on this diagram · 1 diagram in section
