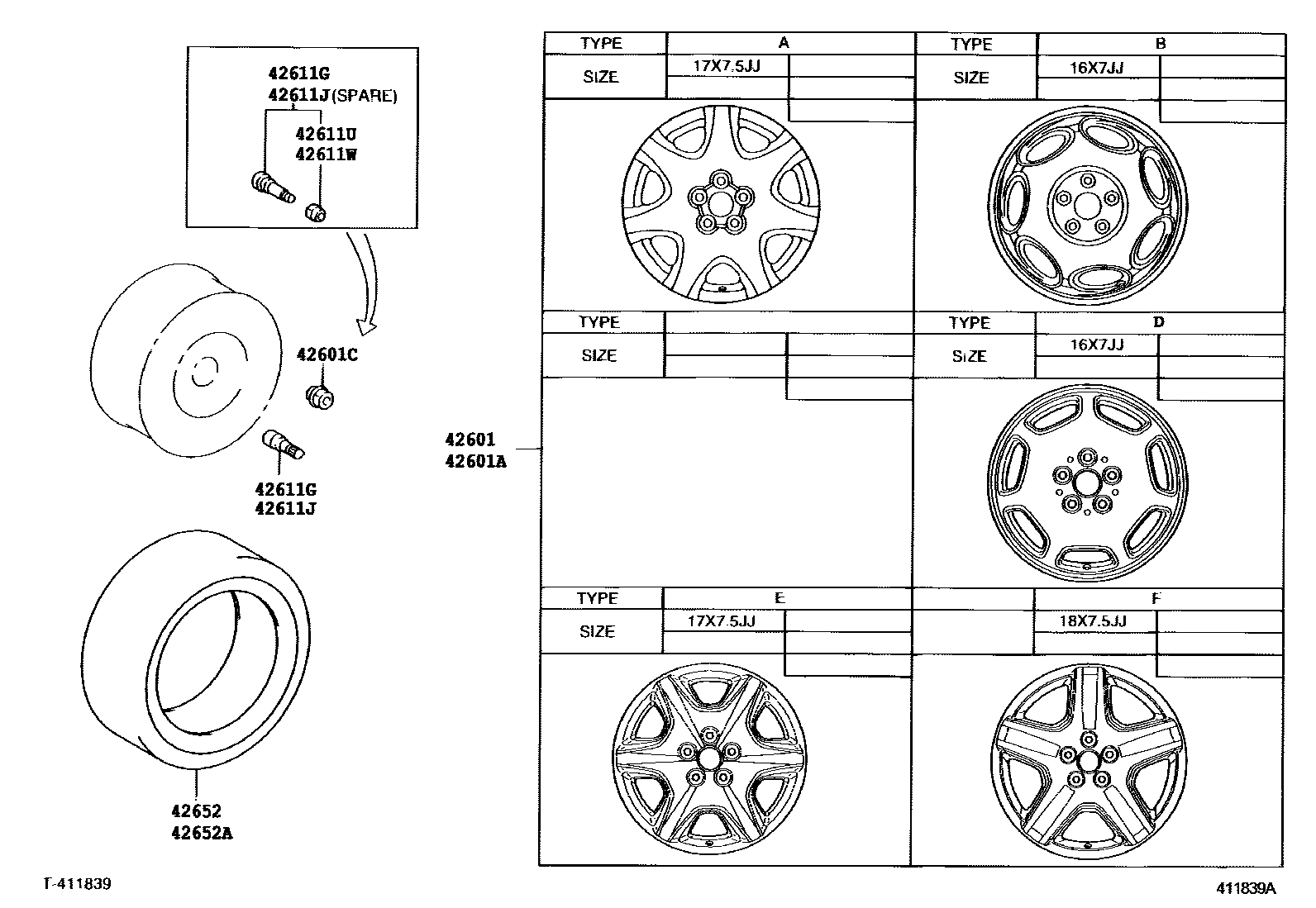

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-50270×4i200008-200307

17X7.5JJ,SILVER,#,TYPE A:REFER TO ILLUSTRATION

main42611-50280×4i200008-200307

17X7.5JJ,SILVER,#,TYPE A:REFER TO ILLUSTRATION,W(CHROME PLATED WHEEL)

main42611-50300×4i200008-200107

16X7JJ,SILVER,#,TYPE B:REFER TO ILLUSTRATION

main42611-50310×4i200008-200107

16X7JJ,*CHP,TYPE B:REFER TO ILLUSTRATION,W(CHROME PLATED WHEEL)

main42611-50330×4i200107-200208

16X7JJ,#,TYPE D:REFER TO ILLUSTRATION

main42611-50370×4i200307

17X7.5JJ,*SCHM,TYPE E:REFER ILLUST.

main42611-50390×4i200307

17X7.5JJ,#,W(CHROME PLATED WHEEL),TYPE E:REFER ILLUST.

main42611-50410×4i200307

18X7.5JJ,*SCHM,SUPER CHROME METALLIC PAINTED, TYPE F:REFER TO ILLUSTRATION

main42611-50430×4i200307

18X7.5JJ,*CHP,W(CHROME PLATED WHEEL),TYPE F:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-50270i200008-200307

17X7.5JJ,SILVER,#,TYPE A:REFER TO ILLUSTRATION

main42611-50280i200008-200307

17X7.5JJ,SILVER,#,TYPE A:REFER TO ILLUSTRATION,W(CHROME PLATED WHEEL)

main42611-50300i200008-200107

16X7JJ,SILVER,#,TYPE B:REFER TO ILLUSTRATION

main42611-50310i200008-200107

16X7JJ,*CHP,TYPE B:REFER TO ILLUSTRATION,W(CHROME PLATED WHEEL)

main42611-50330i200107-200208

16X7JJ,#,TYPE D:REFER TO ILLUSTRATION

main42611-50370i200307

17X7.5JJ,*SCHM,TYPE E:REFER ILLUST.

main42611-50390i200307

17X7.5JJ,#,W(CHROME PLATED WHEEL),TYPE E:REFER ILLUST.

main42611-50410i200307

18X7.5JJ,*SCHM,TYPE F:REFER ILLUST.

main42611-50430i200307

18X7.5JJ,*CHP,W(CHROME PLATED WHEEL),TYPE F:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033×20i200307

main90942-01058×20i200008-200307

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4i200307

main90942-05028×4i200307

CHROME PLATED WHEEL

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009i200008-200307

main90942-05028i200008-200307

CHROME PLATED WHEEL

42611UCAP, TIRE VALVE

main90942-05029×4i200008-200307

42611WCAP, TIRE VALVE (FOR SPARE)

main90942-05029i200008-200307

42652TIRE

main42652-50320×4i200008-200208

P225/60R16 97H

main42652-50330×4i200008-200208

P225/60R16 97H M+S

main42652-50340×4i200307

P225/55R17 95H

main42652-50350×4i200008-200307

225/55R17 97W

main42652-50390×4i200208-200307

P225/55R17 95H M+S

main42652-50420×4i200307-200405

245/45R18 96W,*B/S

main42652-50421×4i200406

245/45R18 96W,*B/S

main42652-50440×4i200408

245/45R18 96V,*D/L

main42652-50620×4i200602

245/45R18 96V,*B/S

42652ATIRE (FOR SPARE)

main42652-50320i200008-200208

P225/60R16 97H

main42652-50330i200008-200208

P225/60R16 97H M+S

main42652-50340i200008-200307

P225/55R17 95H

main42652-50350i200008-200307

225/55R17 97W

main42652-50390i200307

P225/55R17 95H M+S

main42652-50420i200307-200405

245/45R18 96W,*B/S

main42652-50421i200406

245/45R18 96W,*B/S

main42652-50440i200408

245/45R18 96V,*D/L

main42652-50620i200602

245/45R18 96V,*B/S

9 parts on this diagram · 4 diagrams in section
