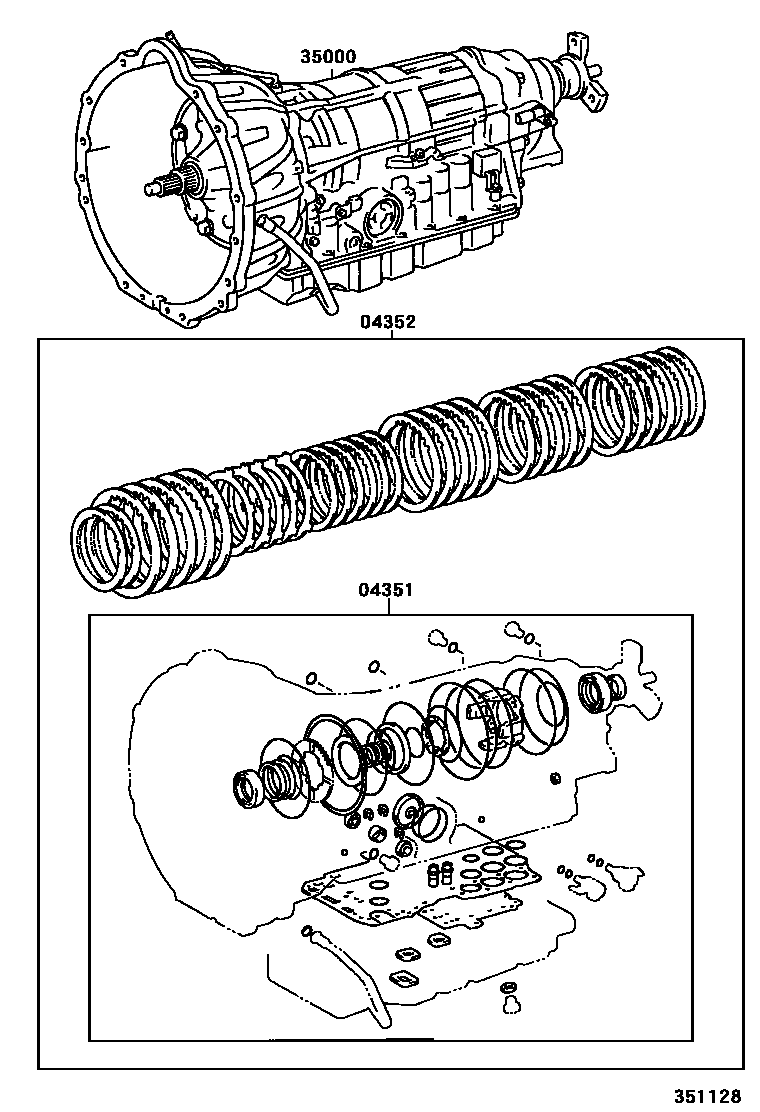

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1A650E 0002 1A761E

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-30490iUCF30200008-200210

main04351-30491iUCF30200210-200307

main04351-30590iUCF30200307

04352KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04352-30070iUCF30200008-200307

main04352-30150iUCF30200307

35000TRANSMISSION ASSY, AUTOMATIC

main35000-50130iUCF30200008-200307

A650E

main35000-50150iUCF30200307

A761E

3 parts on this diagram · 2 diagrams in section
