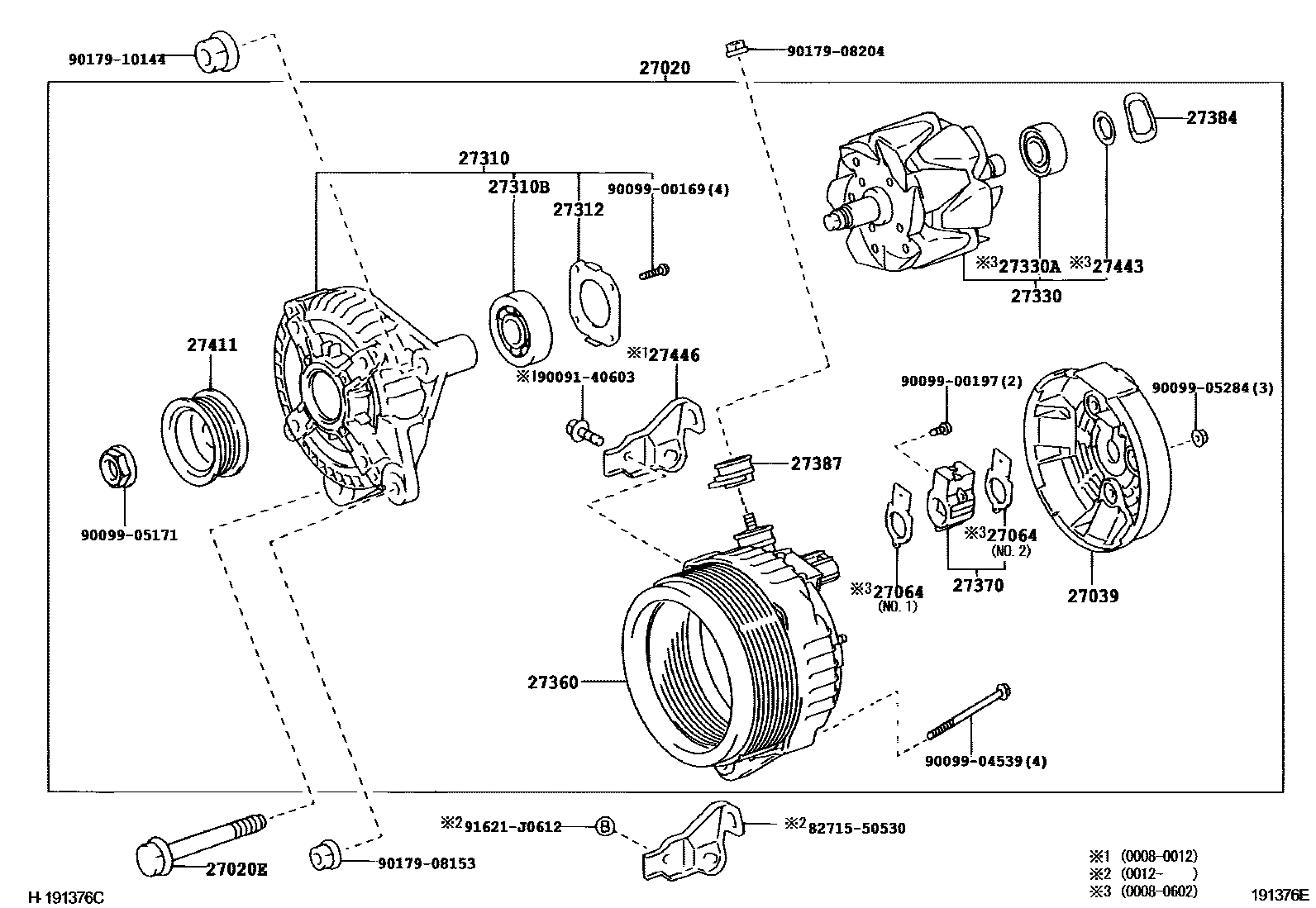

ALTERNATOR
27020ALTERNATOR ASSY
12V 130A
12V 130A
27020EBOLT(FOR ALTERNATOR)
27039COVER, ALTERNATOR REAR END
27064SEAL, ALTERNATOR PLATE
NO.2
NO.1
27310FRAME ASSY, DRIVE END, ALTERNATOR
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
sub90099-10223
27312PLATE, RETAINER
27330ABEARING(FOR ALTERNATOR ROTOR)
27360COIL ASSY, ALTERNATOR
27370HOLDER ASSY, ALTERNATOR BRUSH
27384WASHER
27387INSULATOR, TERMINAL
27411PULLEY, ALTERNATOR
27443COVER, ALTERNATOR BEARING
27446CLIP, ALTERNATOR CORD
8271550530BRACKET,WIRING HARNESS CLAMP
main82715-50530
9009140603
main90091-40603
9009900169
main90099-00169
9009900197
main90099-00197
9009904539
main90099-04539
9009905171
main90099-05171
9009905284
main90099-05284
9017908153
main90179-08153
9017908204
main90179-08204
9017910144
main90179-10144
91621J0612
main91621-J0612
27 parts on this diagram · 1 diagram in section
