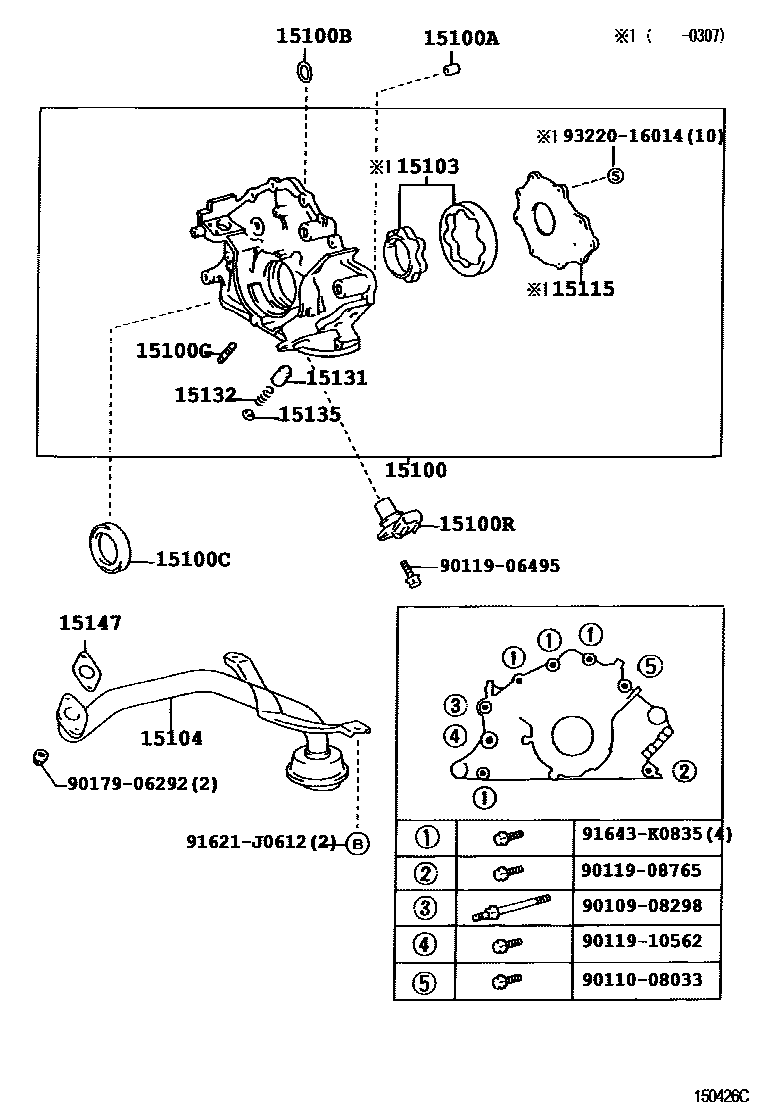

ENGINE OIL PUMP

15100PUMP ASSY, OIL

main15100-50040i3UZFE..UCF30200008-200307

15100APIN, RING(FOR OIL PUMP SET)

main90253-13017×2i3UZFE..UCF30200008-200307

15100BRING, O(FOR OIL PUMP)

main96721-24025i3UZFE..UCF30200008-200307

15100CSEAL(FOR OIL PUMP)

main90311-43006i3UZFE..UCF30200008-200307

15100GBOLT,STUD(FOR OIL PUMP)

main16193-15010×2i3UZFE..UCF30200008-200307

15100RSENSOR, CRANK POSITION

main90919-05035i3UZFE..UCF30200008-200307

15103GEAR SET, OIL PUMP

main15103-50041i3UZFE..UCF30200008-200307

15104STRAINER SUB-ASSY, OIL

main15104-50180i3UZFE..UCF30200008-200307

main15104-50210i3UZFE..UCF30200410

TYPE B:REFER TO ILLUSTRATION, FIG.11-05(PNC 12102A)

15115COVER, OIL PUMP

main15115-50040i3UZFE..UCF30200008-200307

15131VALVE, OIL PUMP RELIEF

main15131-46040i3UZFE..UCF30200307

main15131-46060i3UZFE..UCF30200008-200307

15132SPRING, OIL PUMP RELIEF VALVE

main15132-46020i3UZFE..UCF30200008-200307

15135RETAINER, OIL PUMP RELIEF VALVE

main15133-17010i3UZFE..UCF30200008-200307

15147GASKET, OIL STRAINER

main15147-50011i3UZFE..UCF30200008-200307

9010908298

main90109-08298

9011008033

main90110-08033

9011906495

main90119-06495

9011908765

main90119-08765

9011910562

main90119-10562

9017906292

main90179-06292

91621J0612

main91621-J0612

91643K0835

main91643-K0835

9322016014

main93220-16014

22 parts on this diagram · 1 diagram in section
