ENGINE OVERHAUL GASKET KIT

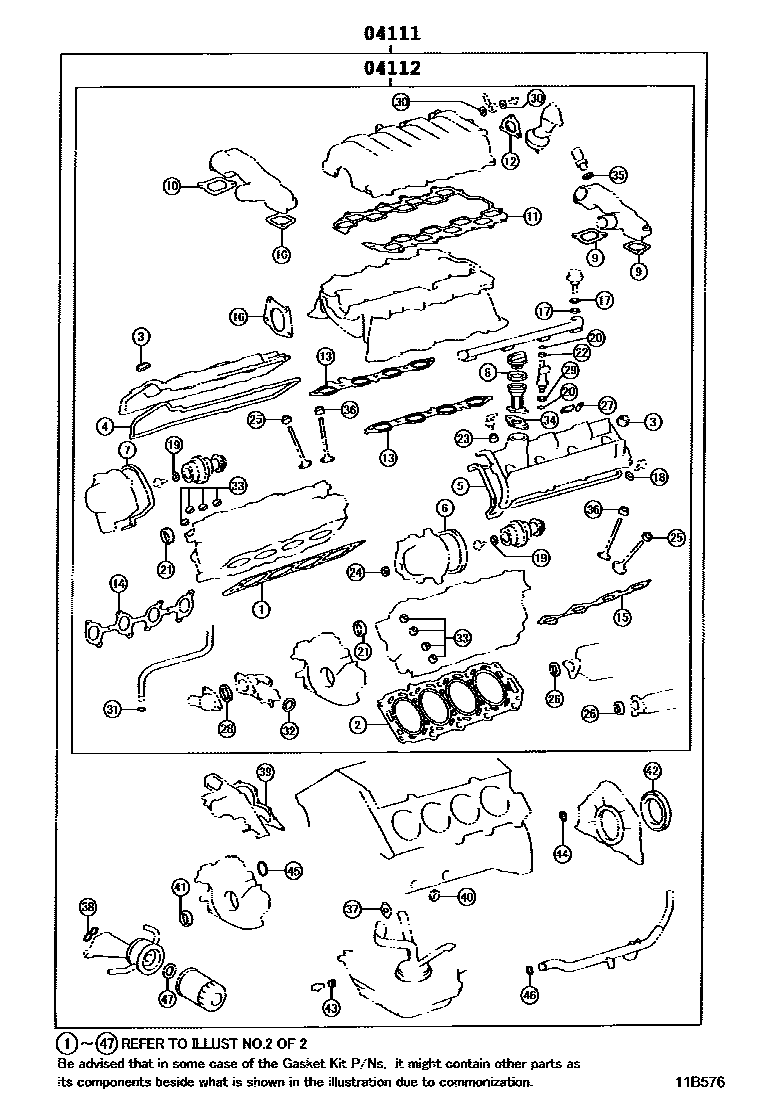

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-50170i200008-200307

main04111-50200i200307-200405

main04111-50320i200405-200502

main04111-50500i200502-200606

main04111-50511i200606-200608

04112GASKET KIT, ENGINE VALVE GRIND

main04112-50170i200008-200307

main04112-50200i200307-200405

main04112-50300i200405-200502

main04112-50311i200606-200608

main04112-50480i200502-200606

2 parts on this diagram · 2 diagrams in section
