HEATING & AIR CONDITIONING - COOLER PIPING

0001 1CONDENSER 0002 1FRONT 0003 1REAR 0004 1O RING

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

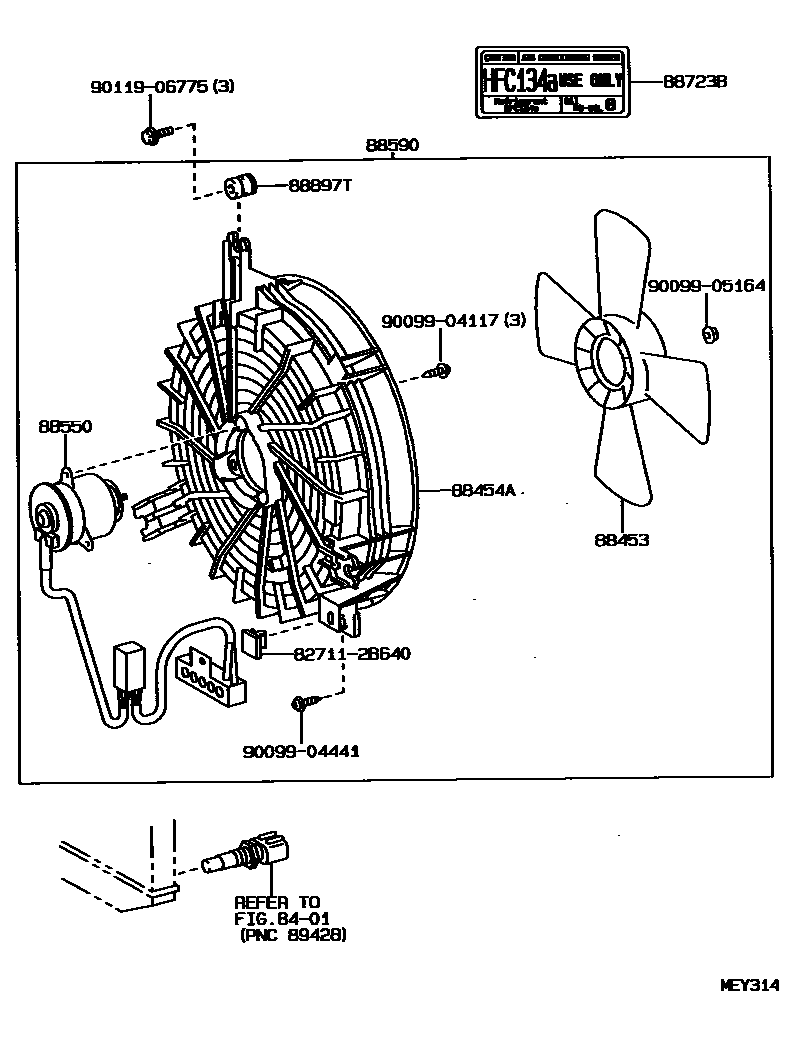

88453FAN, COOLING (FOR CONDENSER)

main88453-50010iUCF20199410

88454ASHROUD, FAN

main88454-50050iUCF20199410

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-50060iUCF20199410

88590BLOWER ASSY, W/SHROUD

main88590-50110iUCF20199410

88723BLABEL, COOLER SERVICE CAUTION

main88723-50130iUCF20199410

88897TGROMMET, COOLER

main88897-50020×3iUCF20199410

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

9009904117

main90099-04117

9009904441

main90099-04441

9009905164

main90099-05164

9011906775

main90119-06775

12 parts on this diagram · 4 diagrams in section
