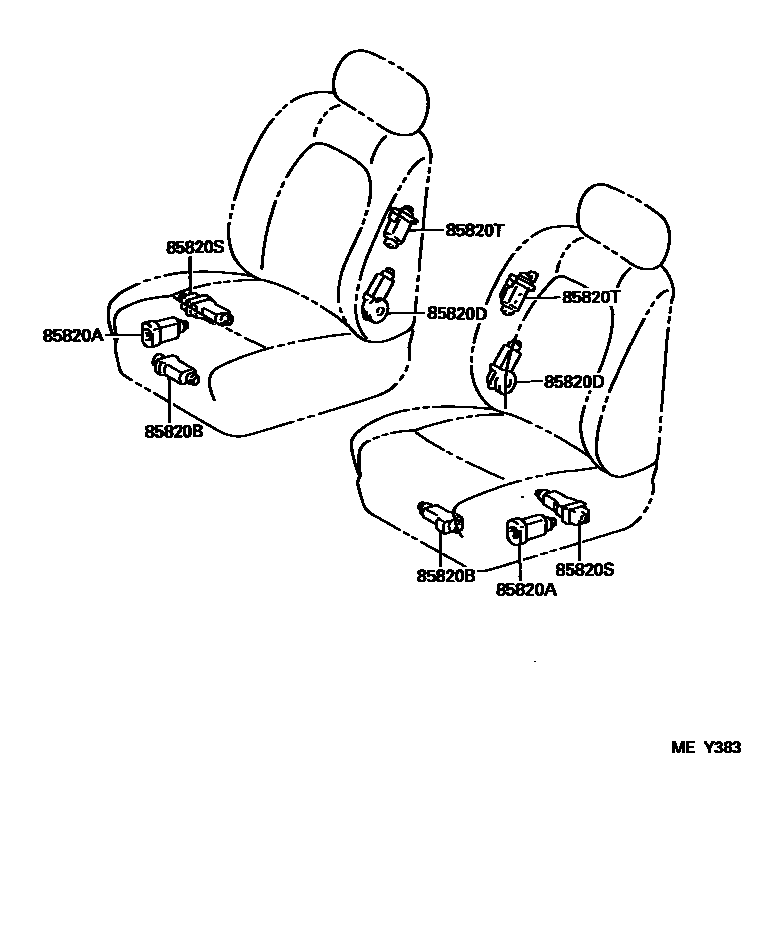

SEAT MOTOR & SEAT HEATER

0001 1 0002 1REAR SEAT

85820MOTOR ASSY, POWER SEAT (FOR REAR)

main85820-30310×2iUCF20..USA199808

85820AMOTOR ASSY, POWER SEAT (FOR FRONT UP, DOWN)

main85801-50050iUCF20..CND; UCF20..USA199410

LH; W(MEMORY ADJUST SYSTEM),LH

main85820-50290iUCF20..USA199410

LH

main85820-50300iUCF20199410

RH

85820BMOTOR ASSY, POWER SEAT (FOR FRONT SLIDE)

main85820-50250iUCF20199410

RH

main85820-50270iUCF20..USA199410

LH

main85820-50280iUCF20..CND; UCF20..USA199410

LH; W(MEMORY ADJUST SYSTEM),LH

85820DMOTOR ASSY, POWER SEAT (FOR FRONT RECLINING)

main85801-50100iUCF20..CND; UCF20..USA199410

LH; W(MEMORY ADJUST SYSTEM),LH

main85820-50380iUCF20199410

RH

main85820-50390iUCF20..USA199410

LH

85820SMOTOR ASSY, POWER SEAT

main85820-50330iUCF20..CND; UCF20..USA199410

LH; W(MEMORY ADJUST SYSTEM),LH

main85820-50420iUCF20199410

RH

main85820-50440iUCF20..USA199410

LH

85820TMOTOR ASSY, POWER SEAT

main85820-50240iUCF20..CND; UCF20..USA199410

LH; W(MEMORY ADJUST SYSTEM),LH

main85820-50340iUCF20..CND; UCF20..USA199410

RH; W(MEMORY ADJUST SYSTEM),RH

6 parts on this diagram · 2 diagrams in section
