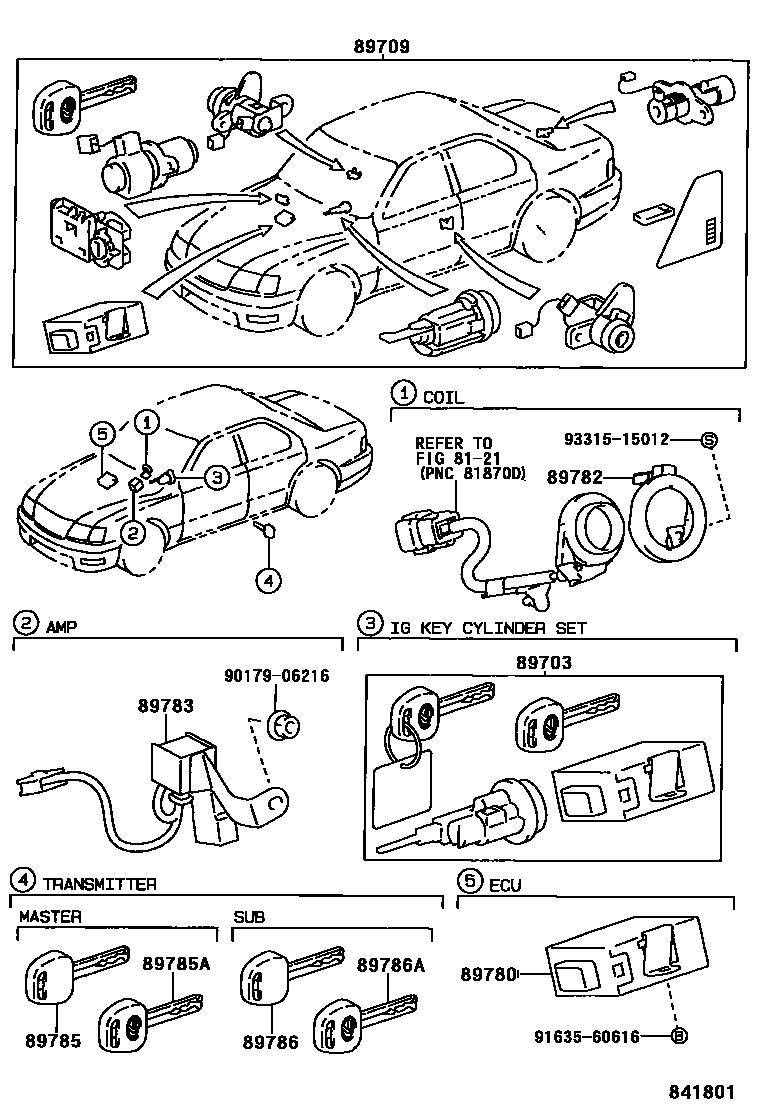

ANTI-THEFT DEVICE

0001 1 0002 1

8121INTERIOR LAMP

→ Go to FIG 81-21

89703CYLINDER & KEY SET, IGNITION W/TRANSPONDER

main89703-50020iUCF20199608-199707

89709COMPUTER SET, TRANSPONDER KEY

main89709-50030iUCF20199608-199707

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-50020iUCF20199608-199707

89782COIL, TRANSPONDER KEY

main89782-30010iUCF20199608

89783AMPLIFIER, TRANSPONDER KEY

main89783-50030iUCF20199608-199707

main89783-50050iUCF20199707

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89070-50170iUCF20199707

DOOR CONTROL KEY

main89785-30020iUCF20199608-199707

89785ATRANSMITTER, TRANSPONDER CUT KEY MASTER

main89070-50290iUCF20199707

DOOR CONTROL KEY

main89785-50010iUCF20199608-199707

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-30020iUCF20199608-199707

main89786-50030iUCF20199707

89786ATRANSMITTER, TRANSPONDER CUT KEY SUB

main89786-50010iUCF20199608-199707

main89786-50040iUCF20199707

9017906216

main90179-06216

9163560616

main91635-60616

9331515012

main93315-15012

13 parts on this diagram · 2 diagrams in section
