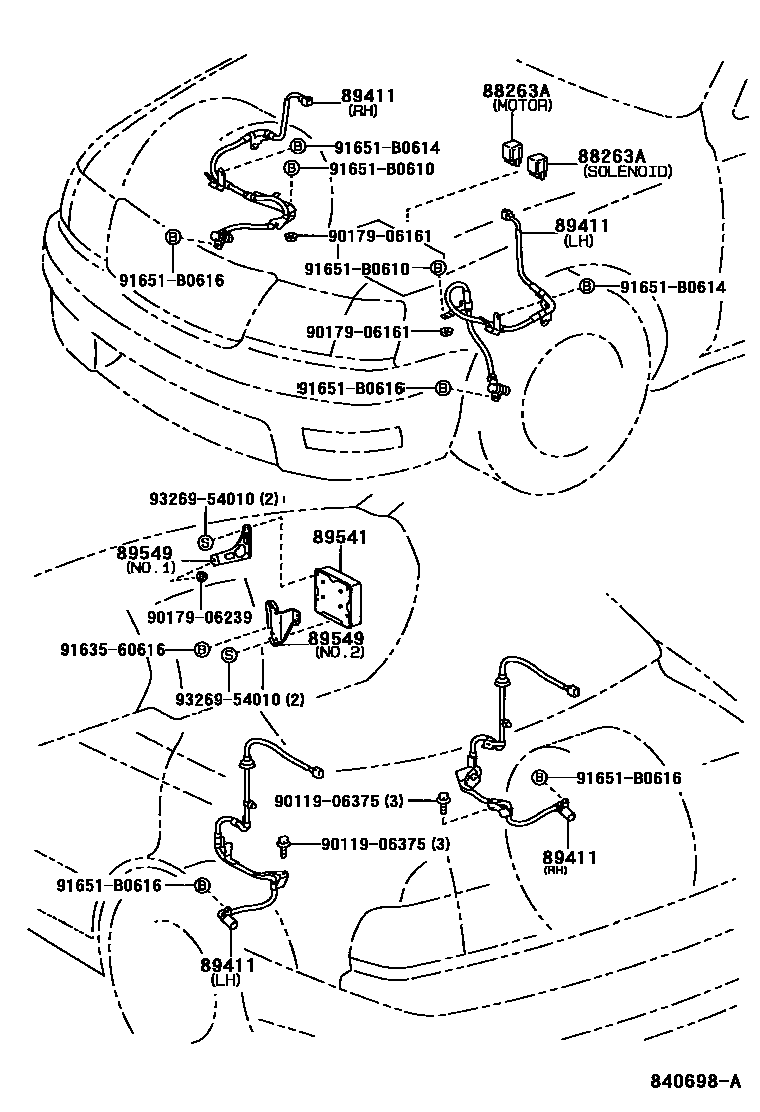

ABS & VSC

0001 1 0002 1

88263ARELAY, SKID CONTROL

main88263-24020iUCF20199410

MOTOR

main88263-24030iUCF20199410

SOLENOID

89411SENSOR, SPEED

main89542-50040iUCF20199410-199608

FRONT RH

main89542-50041iUCF20199608

FRONT RH

main89543-50040iUCF20199410-199608

FRONT LH

main89543-50041iUCF20199608

FRONT LH

main89545-50030iUCF20199410

REAR RH

main89546-50030iUCF20199410

REAR LH

89541COMPUTER, SKID CONTROL

main89541-50070iUCF20..USA199410-199608

main89541-50080iUCF20..CND; UCF20..USA199410-199608

W(TRACTION CONTROL)

main89541-50090iUCF20..USA199608-199707

main89541-50100iUCF20..CND; UCF20..USA199608-199707

W(TRACTION CONTROL)

main89541-50110iUCF20199707-199908

main89541-50111iUCF20199908

89549BRACKET, SKID CONTROL COMPUTER

main88267-50090iUCF20199410-199608

NO.1

main88267-50100iUCF20199608-199707

NO.1

main88268-50090iUCF20199410-199608

NO.2

main88268-50100iUCF20199608-199707

NO.2

9011906375

main90119-06375

9017906161

main90179-06161

9017906239

main90179-06239

9163560616

main91635-60616

91651B0610

main91651-B0610

91651B0614

main91651-B0614

91651B0616

main91651-B0616

9326954010

main93269-54010

12 parts on this diagram · 2 diagrams in section
