WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1COWL 0004 1INSTRUMENT PANEL 0005 1DOOR 0006 1FLOOR & ROOF 0007 1SEAT 0008 1CLAMP 0009 1CABLE BOND

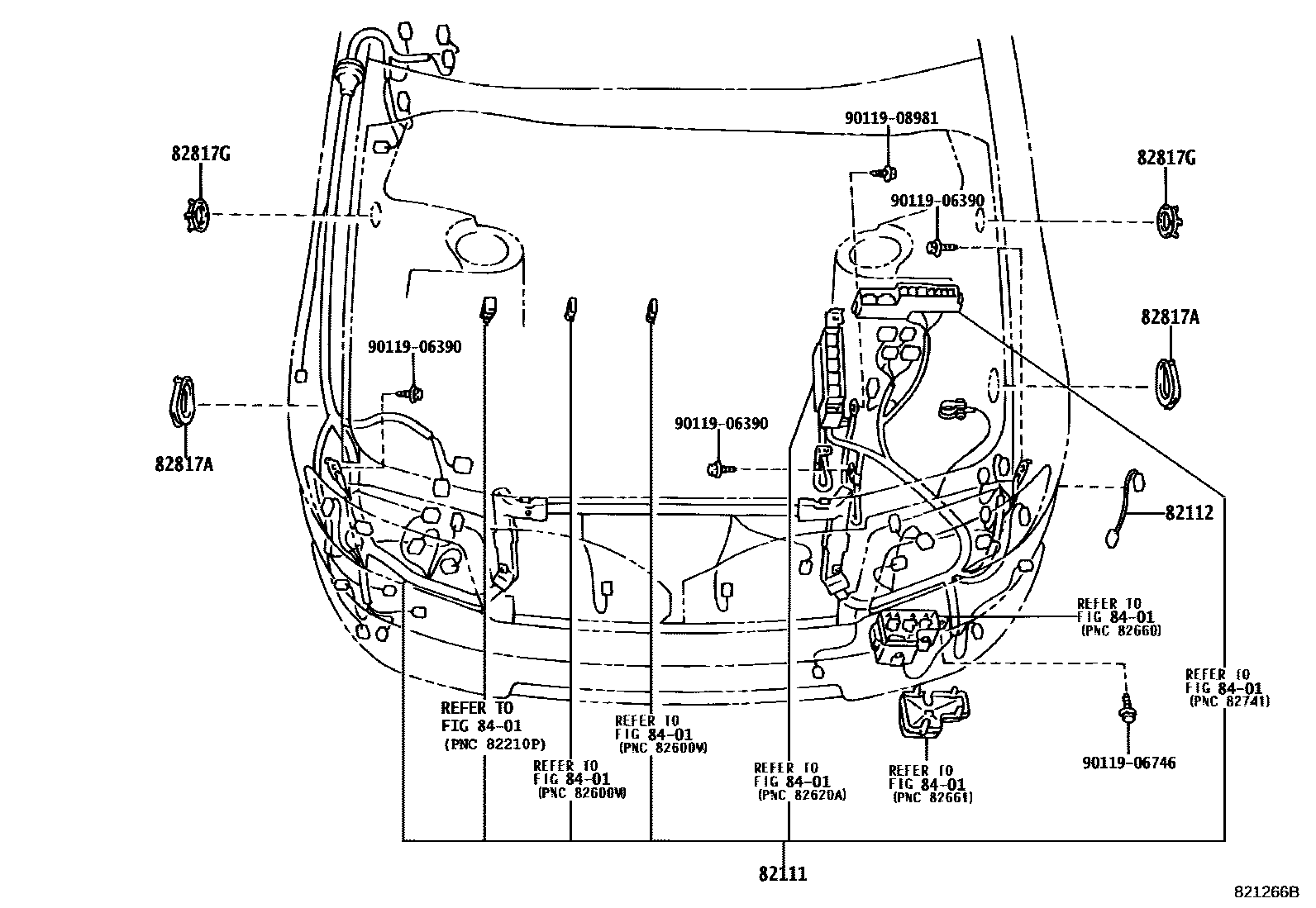

82111WIRE, ENGINE ROOM MAIN

main82111-50440iUCF20..USA199410-199608

main82111-50441iUCF20..USA199608-199707

main82111-50450iUCF20..USA199410-199608

W(TRACTION CONTROL)

main82111-50451iUCF20..USA199608-199707

W(TRACTION CONTROL)

main82111-50460iUCF20..USA199410-199608

W(AIR SUSPENTION & *TRC)

main82111-50461iUCF20..USA199608-199707

W(AIR SUSPENTION & *TRC)

main82111-50470iUCF20..CND199410-199608

main82111-50471iUCF20..CND199608-199707

main82111-50520iUCF20..USA199707-199808

main82111-50521iUCF20..USA199808

main82111-50530iUCF20..USA199707-199808

W(DISCHARGE HEADLAMP)

main82111-50531iUCF20199808

W(DISCHARGE HEADLAMP)

main82111-50540iUCF20..USA199707-199808

W(TEMS)

main82111-50541iUCF20..USA199808

W(TEMS)

main82111-50550iUCF20..USA199707-199808

W(DISCHARGE HEADLAMP);W(TEMS)

main82111-50551iUCF20..USA199808

W(DISCHARGE HEADLAMP);W(TEMS)

main82111-50570iUCF20..CND199707-199808

main82111-50680iUCF20..USA199808

TAIWAN SPEC

main82111-50690iUCF20..USA199808

TAIWAN SPEC & W(DISCHARGE HEADLAMP)

82112WIRE, ENGINE ROOM, NO.2

main82112-50010iUCF20199707

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-5A790iUCF20199410

82817GPROTECTOR, WIRING HARNESS, NO.8

main82817-50530iUCF20199410

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906390

main90119-06390

9011906746

main90119-06746

9011908981

main90119-08981

8 parts on this diagram · 9 diagrams in section
